CPH12
/ CPH15
/ CPH20

3-Point Linkage Centre Pivot Hitch

Model Comparison Product Features Specifications

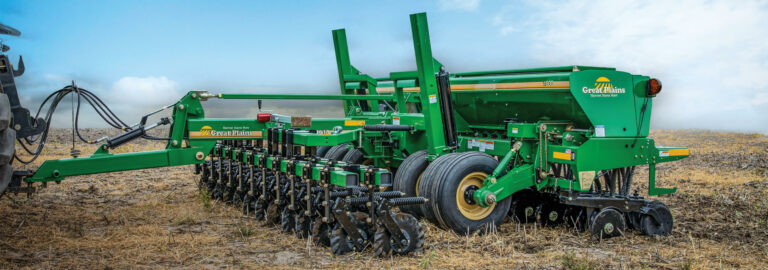

3-Point Linkage Centre Pivot Hitch preview3-Point Linkage Centre Pivot Hitch
The Great Plains Centre Pivot Hitch (CPH) converts 1200, 1500, or 2000 drills into a triple disc no-till machine equipped with coulters and adjustable down pressure. The Centre Pivot Hitch allows the drill to be rigid or floating front and back independently of the hitch. The unique centre‐pivot design allows more effective planting around gradual turns by ensuring that the coulters on the CPH track perfectly match the double disc openers on the drill. For planting on sloping ground the CPH mechanism can be locked straight.

Model Comparison

Finance Offers
Download Brochure
  • 154 mm
  • 154 mm
  • 154 mm

Product Features

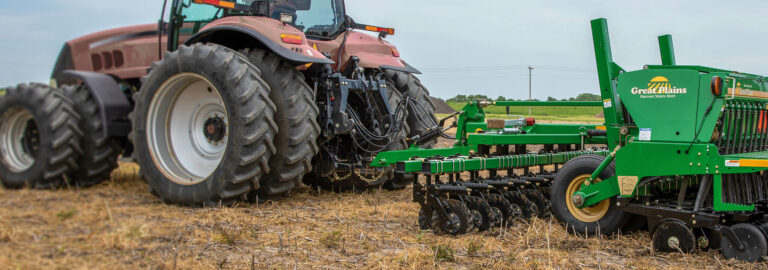

kubota previewkubota
1
2
3

Coulter Choices

Choose between a wide19mm wavy blade, a 15mm Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 8mm fluted coulter blade that penetrates easily.

Coulter Choices

Choose between a wide19mm wavy blade, a 15mm Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 8mm fluted coulter blade that penetrates easily.

Specifications

Download Brochure
Dimensions & Weight
Name CPH12 CPH15 CPH20
Coulter Spacing 154 mm 154 mm 154 mm
Coulter 457 mm 457 mm 457 mm
Coulter Pre Load 203 kg 203 kg 203 kg
Coulter Depth Min. 0 mm 0 mm 0 mm
Coulter Depth Max. 152 mm 152 mm 152 mm
Tyre Size 9.5L x 381 mm 9.5L x 381 mm 9.5L x 381 mm
Weight Approx. Min. 1,755 kg 1,941 kg 2,223 kg
Weight Approx. Max. 1,932 kg 2,177 kg 2,517 kg
Working Width 3,660 mm 4,570 mm 6,100 mm
Transport Width 3,710 mm 4,670 mm 6,100 mm
Transport Length 5,385 mm 5,385 mm 5,385 mm
Transport Height 2,718 mm 2,718 mm 2,718 mm
Name CPH12 CPH15 CPH20
Primary Design No-till Centre No-till Centre No-till Centre
Tractor Attachment Drawbar Drawbar Drawbar
Hydraulic Weight Transfer Standard Standard Standard
Centre Pivot Design Standard Standard Standard
Coulters 24 30 40
Name CPH12 CPH15 CPH20
Transport Lock
Pivot Stabiliser Cylinders
Ball Joint Hitch
Heavy Duty Pivot With Leaf Springs
Tapered Roller Bearing Wheel Hubs And Coulter Hubs
Front And Back 273mm Stagger On Coulter Gangs
CAT II Hitch
Adjustable Level Link
Spring Steel Coulter Mounting Bars
Heavy-duty Coil Springs On Coulter
Heavy-duty Brace Package
Built-in Weight Bracket On Main Frame
CPH Reinforcement
Coulter Spacing 152 mm 152 mm 152 mm
Turbo Coulter 457mm Diameter | 16mm Wide 457mm Diameter | 16mm Wide 457mm Diameter | 16mm Wide
Hydraulic Bypass Kit
