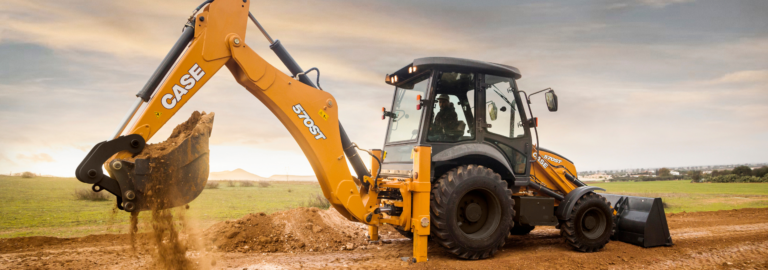

CASE 570ST Backhoe Loader

The CASE 570ST brings big performance and proven reliability to the mid-size backhoe range. Powered by a 3.9 L FPT S8000 engine producing 97 HP and 420 Nm of torque, it delivers strong breakout force and efficient hydraulic performance for digging, loading, and lifting tasks. Its straight loader arm design gives excellent visibility and superior tipping height, while the closed-centre hydraulic system ensures smooth control and faster cycle times under load. With robust construction, low operating costs, and CASE’s trusted engineering, the 570ST is built to handle the demands of construction, agriculture, and utility work across Australia. Designed for strength and simplicity, the 570ST features an open-centre chassis and heavy-duty axles for stability and long-term durability. Operators benefit from precision control through the Powershuttle transmission with torque converter, providing smooth directional shifts and reliable traction in all ground conditions. The optional ExtendaHoe expands digging depth and reach, matching the performance of larger excavators while maintaining easy transport and manoeuvrability. Every detail from its strong steel frame to its efficient cooling system is designed for performance, comfort, and lasting value.

Model Comparison

Finance Offers

Download Brochure

97 hp

Product Features

The 570ST’s straight loader arm and self-levelling system give outstanding control and material retention, even during high-speed loading. The Return-to-Dig function automatically repositions the bucket to the correct angle, improving productivity and consistency between passes. The S8000 engine, paired with a high-flow hydraulic pump, provides responsive power and reduced fuel consumption for every task, while the PowerShuttle transmission keeps operation smooth on rough or uneven terrain. Comfort and serviceability are at the heart of the design. The spacious cab offers wide visibility and easy entry, with a mechanical suspension seat and intuitive control layout that minimise fatigue. Large windows improve airflow, and the simple dashboard display keeps essential data clear at a glance. All daily maintenance points are accessible from ground level, while the front tilting hood and wide engine bay make servicing quick and safe. The 570ST combines CASE’s long-standing backhoe heritage with practical performance that operators can depend on every day.

Power Shuttle Transmission with Torque Converter

The power shuttle transmission with torque converter allows smooth, stall-free operation for efficient travel and digging. Electro-hydraulic reversing and a cutoff button enable quick direction changes, while the 4-speed gearbox delivers consistent power in all conditions. The 4WD configuration enhances traction on muddy or uneven ground, ensuring reliable performance across demanding job sites.

Power Shuttle Transmission with Torque Converter

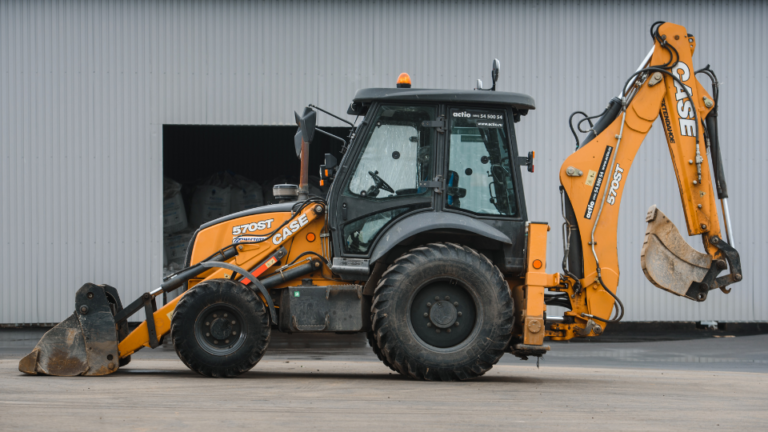

Robust Hydraulic Power

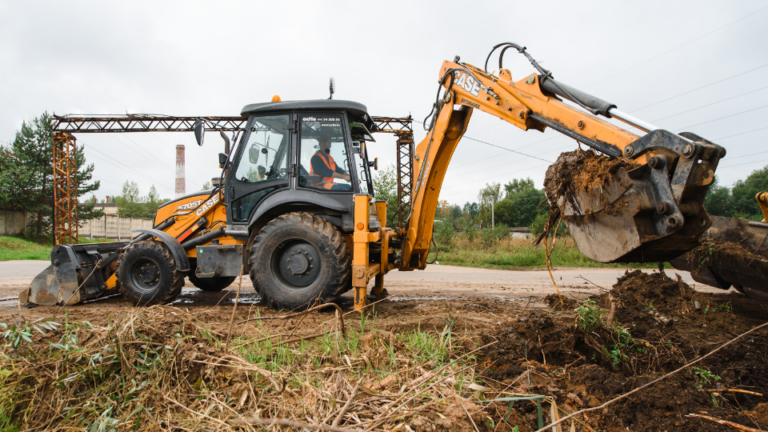

Extendable Backhoe Reach

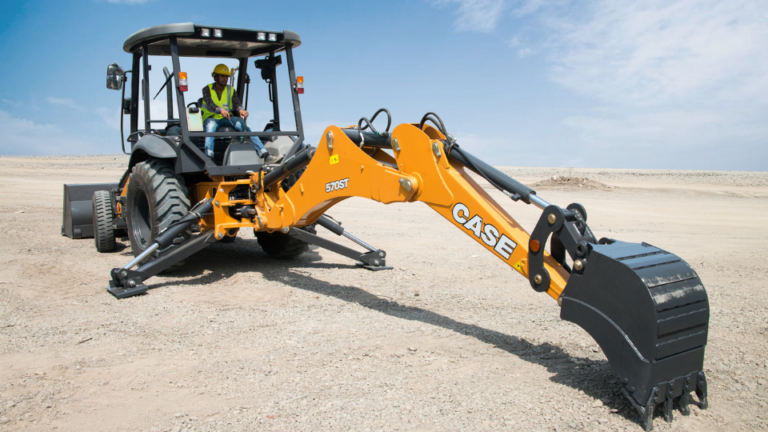

Straight Loader Arm Efficiency

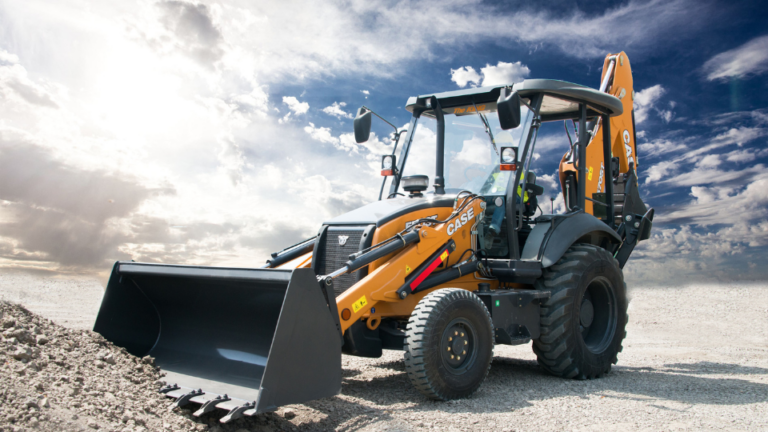

Easy Maintenance and Accessibility

Specifications

Download Brochure

Engine

Name	570ST
Model Code	TCA8040.45
Bore / Stroke	104 mm x 115 mm
Displacement / Compression ratio	3.9 l / 18.3:1
Engine Power (ISO 14396) @2200 rpm	97 hp
Maximum torque (ISO 14396)	420 Nm
Engine speeds	2200 rated speed, full load, 950 low idle speed (at no load)

Power Train

Name	570ST
Transmission	CARRARO 2WD TLB1 or 4WD TLB1
Model	CARRARO 4WD TLB1 (for 570T/ST 4WD)
Type	Power Shuttle with 4 forward and 4 reverse travel gears
Gear	Forward - Reverse (speed kmph)
1st - 2nd - 3rd - 4th	7.4 - 12 - Not recom. - Not recom

Front Axle

Name	570ST
2 Wheel Drive (Standard)	Model CNH PS1300
Type - Oscillation	Steering - +/- 8 °
4 Wheel Drive (Optional)	Model CARRARO 26.17

Rear Axle

Name	570ST
Model for 570T 2WD and 4WD	CARRARO 28.32M
Type	Rigid

Brakes

Name	570ST
Service brakes	Type: wet multi-discs / Nr. of discs: 6
Parking brakes	Type: Manual, with lever

Steering

Name	570ST
Type	Power Steering
System pressure / Displacement	140 bar / 125 cc
Turning radius (outside of the bucket)	5550 mm without brake
Tread width	1697 mm rear

Tire Size recommended

Name	570ST
2WD	16.9 x 28 - 12PR or 14 x 25 - 20PR rear
4WD	16.9 x 28 - 12PR rear

Hydraulic System

Name	570ST
Type	Closed center with double gear pump
Flow rate	145 lpm @ 2200 rpm
Pressure	210 bar

Service Capacities

Name	570ST
Engine oil	13.6 l
Transmission oil 2WD/4WD	20.8 l
Front axle 4WD oil	11.8 l
Rear axle oil	12.3 l
Hydraulic oil	132 l
Fuel tank	132 l
Coolant	24 l

Electrical System

Name	570ST
Voltage	12 V
Battery	Single: 95 Ah 900 A or Double: 60 Ah, 600 A (each)
Alternator	120 A

CAB

Name	570ST
Certification	ROPS / FOPS
Air Conditioning	Optional
Storage compartments capacity	45 l including: 2 lockable, cooling box
Speedometer	Optional
Bluetooth radio	Optional

Noise

Name	570ST
Internal (cab)	77 dB(A)
External	103 dB(A)
