580SN

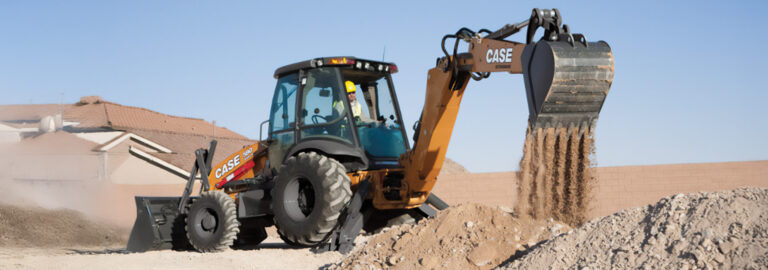

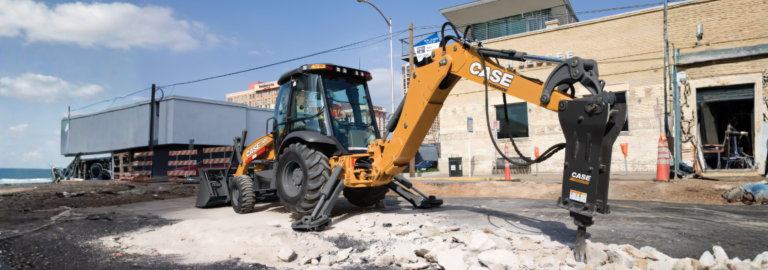

CASE 580SN Backhoe Loader

The CASE 580 Super N sets the standard for performance, precision, and reliability in the backhoe loader class. Powered by a 4.5 L FPT turbocharged engine producing 95 HP and 445 Nm of torque, it delivers exceptional breakout force, smooth hydraulic control, and the versatility to handle everything from trenching to material loading. The PowerLift function boosts lifting capacity by up to 40 percent, turning the 580SN into a genuine all-round performer that rivals small excavators for heavy digging and craning. Designed for balance and visibility, the 580SN features CASE’s curved boom design and large floor-to-ceiling glass panels for clear sightlines to both the loader and backhoe. Its superior loader arm geometry increases reach, improves dump height, and enhances control while loading trucks or handling bulk materials. Rugged axles, a heavy-duty loader frame, and proven CASE hydraulic systems make it the reliable choice for demanding civil, agricultural, and construction projects across Australia.

Model Comparison

Finance Offers

Download Brochure

71 kW (95.2 hp)
108 hp

Product Features

CASE’s Powershift transmission delivers smooth gear changes and responsive control through column-mounted shifters and SmartClutch technology. Operators can adjust shuttle engagement to suit their working style, while PowerLift and Auto-Ride Control keep operation stable and efficient in every condition. The machine’s advanced hydraulic system ensures strong breakout forces and fast cycle times, increasing productivity and reducing fuel use. The 580SN’s cab is designed for comfort and control, with noise insulation, climate regulation, and a fully adjustable air suspension seat. The ROPS/FOPS-certified design provides excellent visibility and safety, while the intuitive switch layout and ergonomic levers minimise operator fatigue. Ground-level service points, grouped filters, and a flip-up hood make daily maintenance simple and quick. Built for performance and ease of use, the 580SN delivers CASE’s signature mix of power, precision, and long-term dependability.

Premium Operator Environment

The 580 Super N’s cab is built for all-day productivity with reduced noise, wide glass panels for full loader and backhoe visibility, and climate control for year-round comfort. The seat and controls are fully adjustable, allowing precise operation with minimal fatigue.

Premium Operator Environment

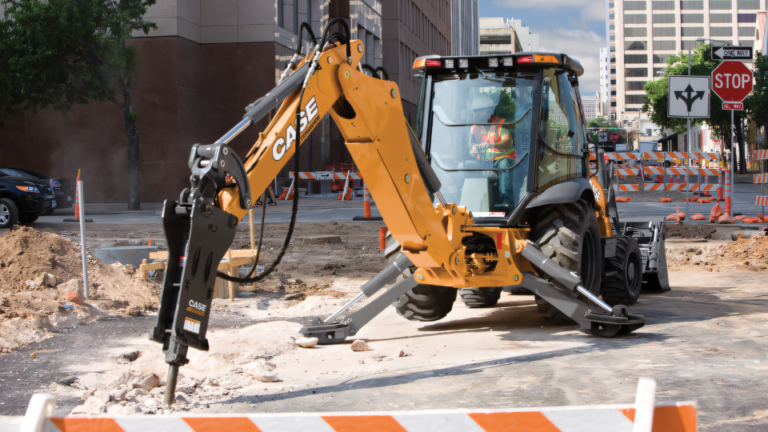

Load Sensing Hydraulic System

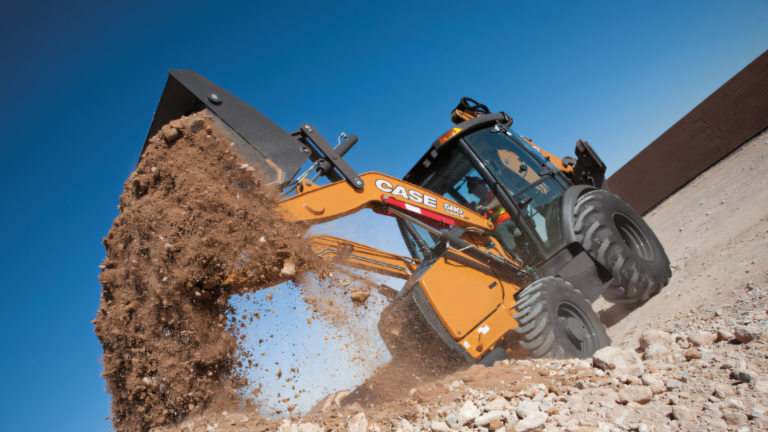

Auto Ride & 4-Wheel Steering

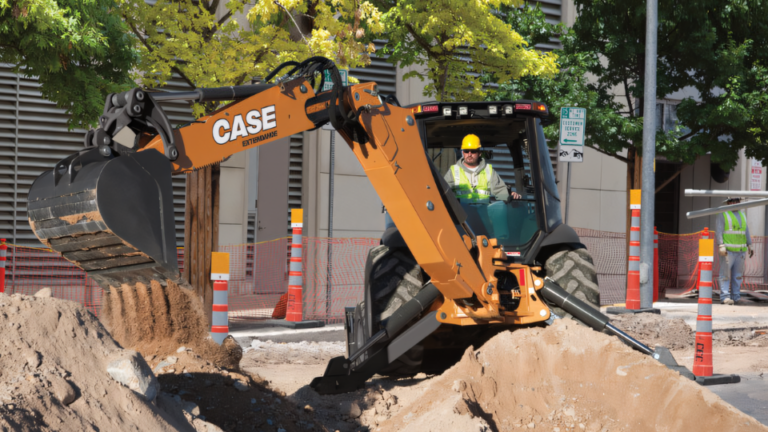

“In-Line” Backhoe Geometry

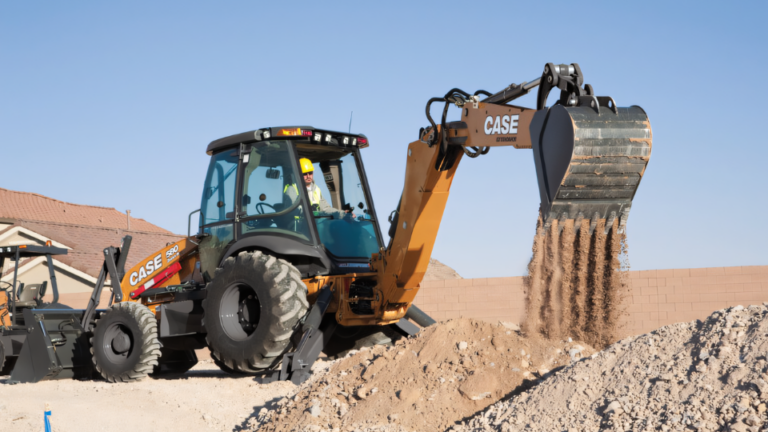

All-New Cab Design

Specifications

Download Brochure

Main Specifications

Name	580SN
Engine	CASE 445TA/E3
Net hp	71 kW (95.2 hp)
Net max. torque @ 1400 rpm	445 Nm
Dig Depth Classification	14 to 15 ft.
Standard Transmission	Powershuttle/Powershift
Backhoe Breakout: Bucket	63.267 kN
Backhoe Breakout: Dipper	40.345 kN
Loader Breakout: Bucket	43.623 kN
Loader Breakout: Dipper	48.694 kN
Power Lift Option	Available
Lift capacity to full height	3,040 kg
Bucket cutting edge width	2.08 m
Departure angle - 2WD/4WD	15.3° / 19°
Operating Weight	7,814 kg
Front tires - 2WD	11L x 16, 10-ply rating
Front tires - 4WD	12L x 16.5, 8-ply rating
Rear tires	19.5L x 24, 10-ply rating, 17.5L x 24, 10-ply rating
