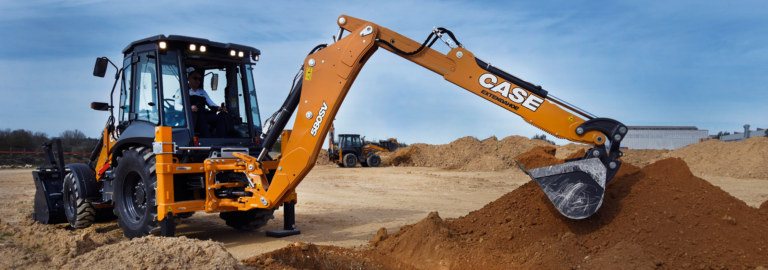

CASE 580SV Backhoe Loader
Model Comparison
- 72 kW (96.6 hp)
- 82 kW (110.0 hp)
- 82 kW (110.0 hp)
Product Features
The 580SV’s load-sensing hydraulic system automatically delivers the required flow and pressure for each task, reducing energy waste and improving precision. The variable displacement pump adjusts output based on load, giving operators responsive control with up to 14% better fuel efficiency compared to traditional systems. With Auto Ride Control, Return-to-Dig, and mechanical self-levelling, the loader delivers smooth operation, superior bucket retention, and faster loading cycles. Maintenance is quick and straightforward thanks to the one-side service layout and front-tilting hood that provides full access to the engine bay. Ground-level check points, grouped filters, and long service intervals reduce downtime and simplify upkeep. Designed for real-world productivity, the CASE 580SV combines intelligent engineering with operator comfort to deliver premium performance, low operating costs, and the durability CASE backhoes are known for.
Redesigned V-Series Cab
The new V-Series cab delivers next-level comfort and control. Wide-angle glazing and optimised pillar placement improve visibility to every corner of the job site. Reduced vibration, premium seating, and improved air distribution create a calm, productive workspace for long operating hours.

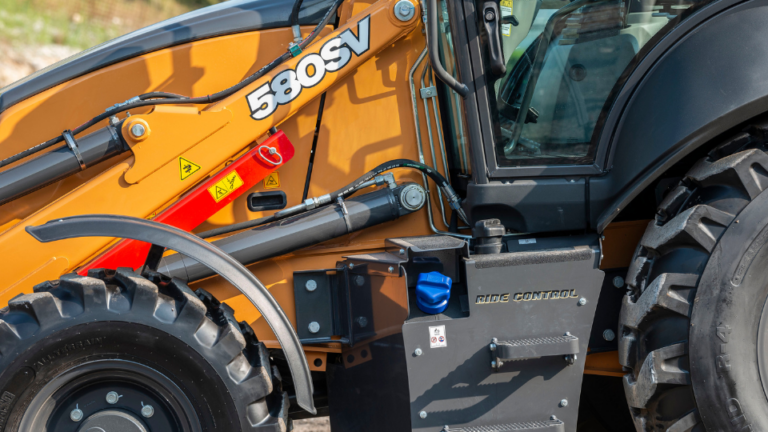

All-Terrain Stability and Control

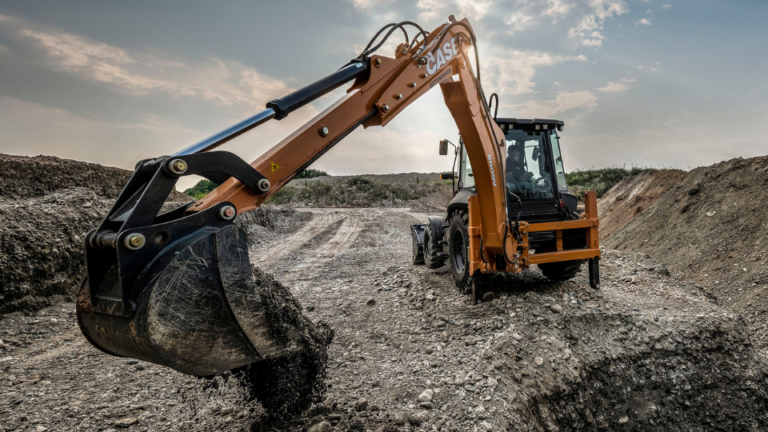

Front Loader Versatility

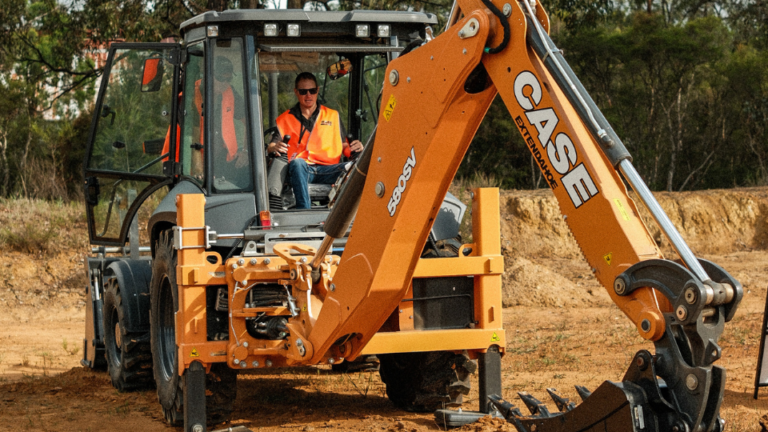

Strengthened Frame

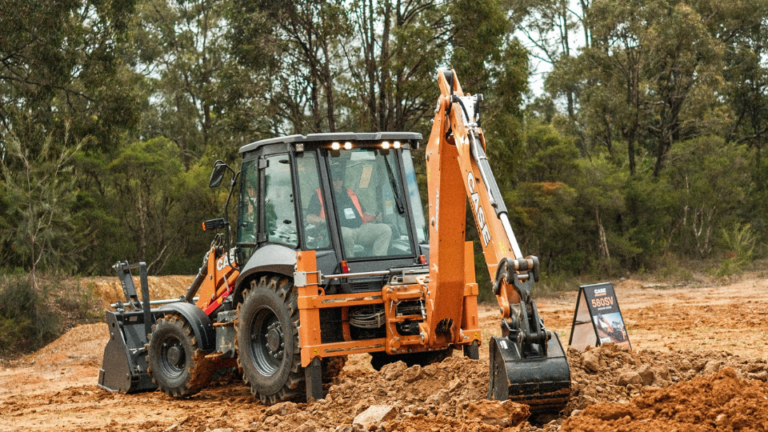

Intuitive Operator Controls
| Name | 580SV |
|---|---|
| Make and Model | FPT NEF - F4HE0484G |
| Injection system | High Pressure Common Rail |
| Emissions level | Tier 3 |
| Cylinders | 4 |
| Bore / Stroke | 104 mm x 132 mm |
| Displacement / Compression ratio | 4.5 ltr / 17.5 to 1 |
| Engine Power (ISO 14396) @2200 rpm | 72 kW (96.6 hp) |
| Maximum torque (ISO 14396) | 453 Nm |
| Engine speeds | 2200 rpm (rated speed at full load) / 950-1000 rpm (low speed at no load) |
| Name | 580SV |
|---|---|
| Type | Powershuttle 4WD / Powershift 4WD |
| Model | Carraro TLB1 MPB 4WD / Carraro TLB2 MPB 4WD |
| Forward travel speeds (kph) | 6 - 10 - 21 - 40 |
| Reverse travel speeds (kph) | 7 - 12 - 26 - 47* |
| Name | 580SV |
|---|---|
| Model | 4WD Heavy duty |
| Oscillation | +/- 11° |
| Name | 580SV |
|---|---|
| Model | Carraro 28.44FR with Differential lock |
| Name | 580SV |
|---|---|
| Service brakes | Hydraulic foot operated, 2 discs per side |
| Parking brakes | Mechanically actuated wet brake pack on transmission output shaft |
| Name | 580SV |
|---|---|
| Type | Hydraulic Power Steering |
| System pressure / Displacement | 180 bar / 160 cc |
| Turning radius 4WD (external radius) with 18” tires | 4300 mm - brakes off / 3600 mm - brakes on |
| Name | 580SV |
|---|---|
| Front | 18” or 20” |
| Rear | 26” or 28” or 30” |
| Name | 580SV |
|---|---|
| Type | Load sensing, closed center hydraulic system with twin gear pump |
| Flow (@ 2200 rpm) | 156 l/min / 15 to 165 l/min |
| Pressure | 205 bar |
| Name | 580SV |
|---|---|
| Engine oil | 13.6 l |
| Transmission oil 2WD/4WD | 20.8 l |
| Front axle 4WD oil | 9.6 l |
| Rear axle oil | 16.3 l |
| Hydraulic oil | 132 l |
| Fuel tank | 132 l |
| Coolant | 24 l |
| Name | 580SV |
|---|---|
| Voltage | 12 V |
| Battery | Single: 95 Ah 900 A or Double: 60 Ah, 600 A (each) |
| Alternator | 120 A |
| Name | 580SV |
|---|---|
| Certification | ROPS / FOPS |
| Air Conditioning | Optional |
| Storage compartments capacity | 45 l including: 2 lockable, cooling box |
| Speedometer | Optional |
| Bluetooth radio | Optional |
| Name | 580SV |
|---|---|
| Internal (cab) | 77 dB(A) |
| External | 102 dB(A) |
