590SN

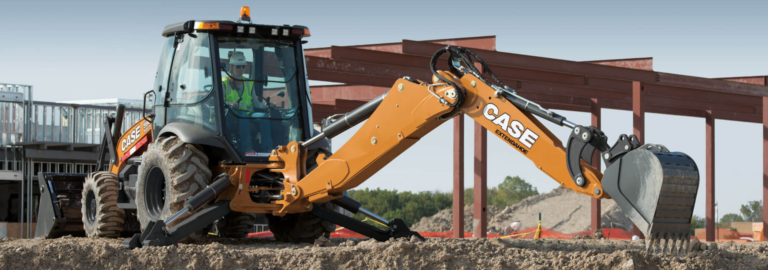

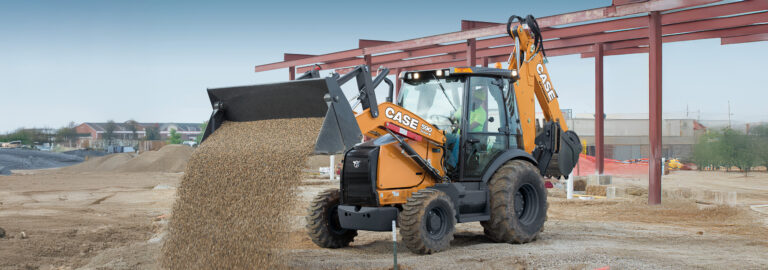

CASE 590SN Backhoe Loader

The CASE 590 Super N combines serious muscle with refined hydraulic control to handle the heaviest workloads in the backhoe class. Its 4.5 L FPT turbocharged engine produces 108 HP and up to 515 Nm of torque, delivering exceptional digging power, faster cycle times, and impressive breakout performance. The machine’s PowerLift feature provides up to 40% more lifting force at the flick of a switch, giving operators the strength to handle deep trenching, heavy lifting, and tough material excavation without hauling in a larger machine. Built for all-day productivity, the 590 Super N features CASE’s signature “In-Line” backhoe boom for superior visibility and balance. The curved arm geometry improves truck loading height and reduces frame stress for long-term durability. The loader arms have been re-engineered for greater reach and higher lift capacity, making loading and material handling faster and more efficient. From roadworks to civil construction, the 590 Super N delivers strength, control, and dependability that make it a standout performer on any job site.

Model Comparison

Finance Offers

Download Brochure

71 kW (95.2 hp)
108 hp

Product Features

The 590 Super N uses a closed-centre, load-sensing hydraulic system that delivers smooth, simultaneous movements under any load. This system ensures optimal power transfer while maintaining fuel efficiency, giving operators consistent control for precise work. The Powershift transmission with SmartClutch modulation provides seamless gear changes and allows operators to customise shift response between forward and reverse for faster cycles and reduced fatigue. Inside the cab, visibility and comfort take priority. Floor-to-ceiling glass panels, new rear-quarter windows, and powerful LED lighting give clear visibility around the entire machine. A fully adjustable air suspension seat, intuitive joystick layout, and quiet, pressurised cab keep operators comfortable and in control through long days in the field. With grouped service points, swing-out coolers, and easy ground-level access, daily maintenance is quick and straightforward, helping maximise uptime and return on investment.

Advanced PowerLift System

PowerLift delivers unmatched breakout force and lift capability at lower engine speeds, reducing fuel use without compromising performance. Operators can lift and place heavy materials with precision, improving efficiency during trenching, lifting, and pipe-laying tasks.

Advanced PowerLift System

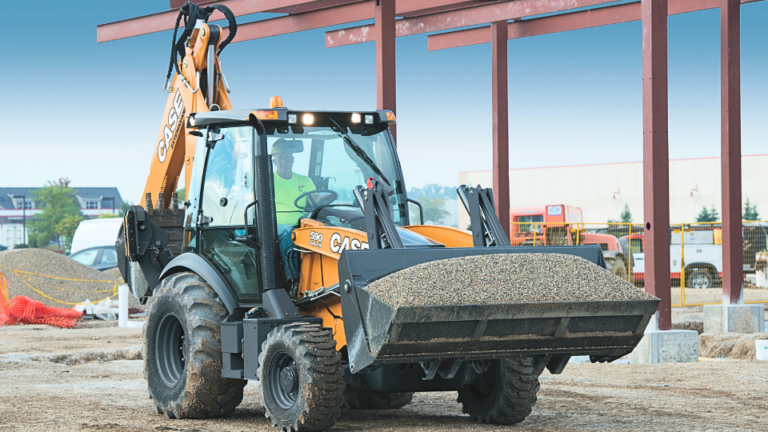

Intelligent Power Management

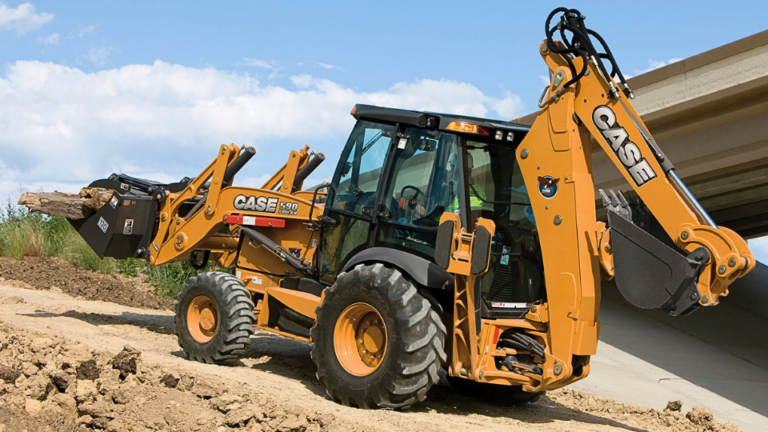

Strengthened Structural Design

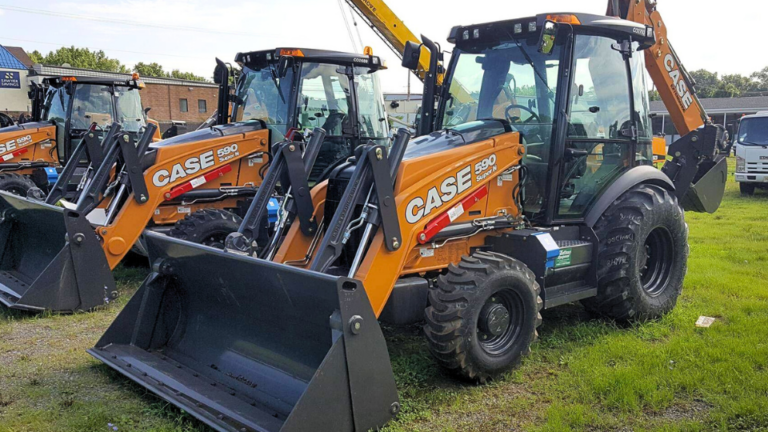

Easy Daily Serviceability

LED Lighting and Visibility

Specifications

Download Brochure

Main Specifications

Name	590SN
Make and Model	CASE 445TA/E3
Net hp	108 hp
Net max. torque @ 1400 rpm	515 Nm
Dig Depth Classification	15 to 16 ft.
Standard Transmission	Powershuttle/Powershift
Backhoe Breakout: Bucket	69.623 kN
Backhoe Breakout: Dipper	42.16 kN
Loader Breakout: Bucket	49.393 kN
Loader Breakout: Dipper	56.83 kN
Power Lift Option	Available
Lift capacity to full height	3,541 kg
Bucket cutting edge width	2.36 m
Departure angle - 2WD/4WD	NA / 18.4°
Operating Weight	9,280 kg
Front tires - 2WD	14L x 17.5, 10-ply Industrial Rib
Front tires - 4WD	14L x 17.5, 10-ply SGL S
Rear tires	21L X 24, 10-ply R4
