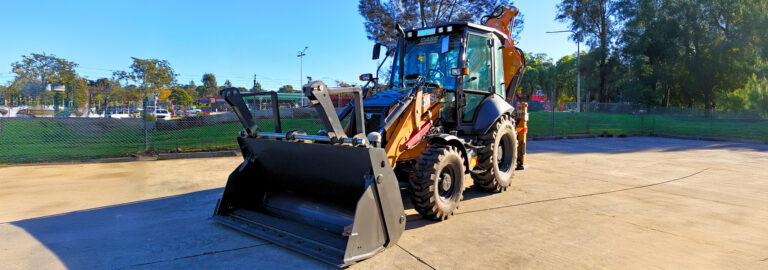

CASE Backhoe Loader 590SV
Model Comparison
- 72 kW (96.6 hp)
- 82 kW (110.0 hp)
- 82 kW (110.0 hp)

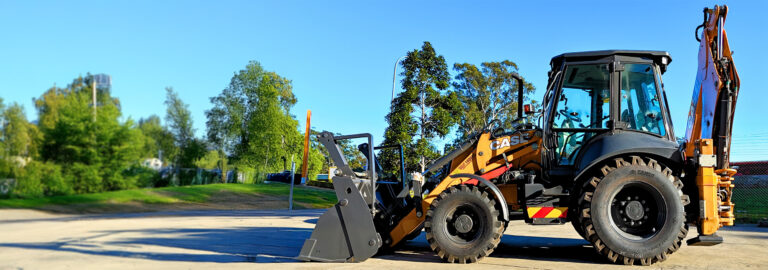

Product Features
The CASE 590SV uses advanced load-sensing hydraulics to optimise power delivery while reducing fuel use by up to 14 percent. The PowerLift function boosts lifting performance at low RPMs, providing greater control and strength for demanding applications. The straight loader arm design and mechanical self-levelling system deliver cleaner, faster bucket fills, while the Return-to-Dig feature improves efficiency during repetitive loading cycles. Maintenance and safety are built into every detail. The 590SV offers one-side engine serviceability, with all major check points accessible from ground level for quick daily inspections. The new cab layout includes improved switch placement, Bluetooth connectivity, and multiple power outlets for on-site convenience. A tilting engine hood and grouped filters simplify service, while the ROPS/FOPS-certified cab and LED lighting system enhance safety in all operating conditions.
Next-Generation Cab Comfort
The redesigned V-Series cab provides the operator with maximum visibility, space, and control. An improved HVAC system, refined seat suspension, and ergonomic joystick layout make long days more comfortable and productive. Reduced cabin noise and multiple power outlets add a modern touch to the operator experience.

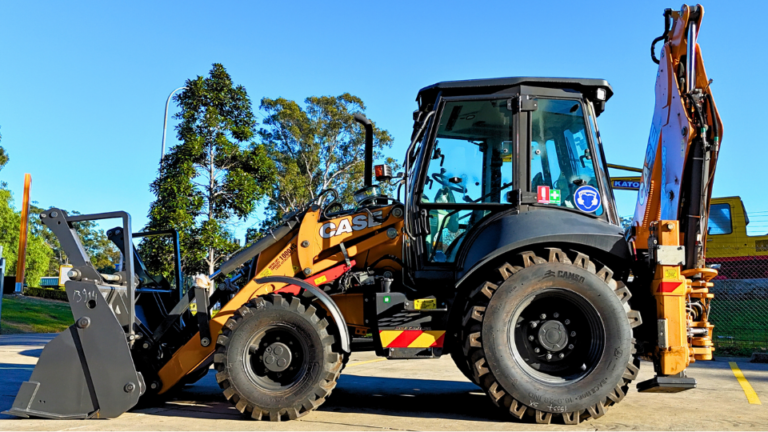

PowerLift Boost System

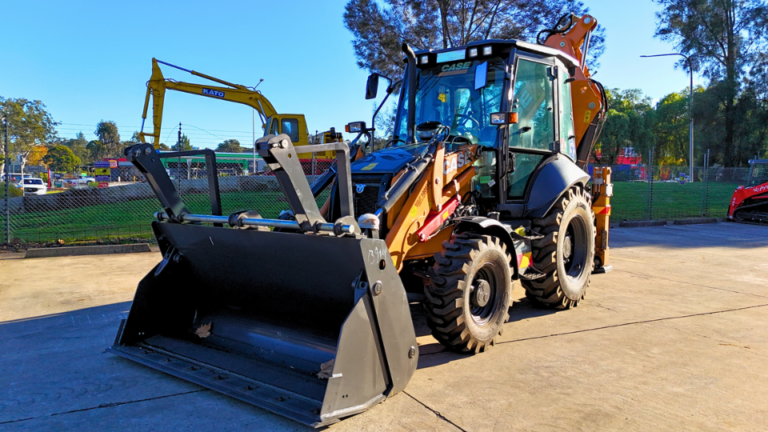

Strengthened Loader and Linkage

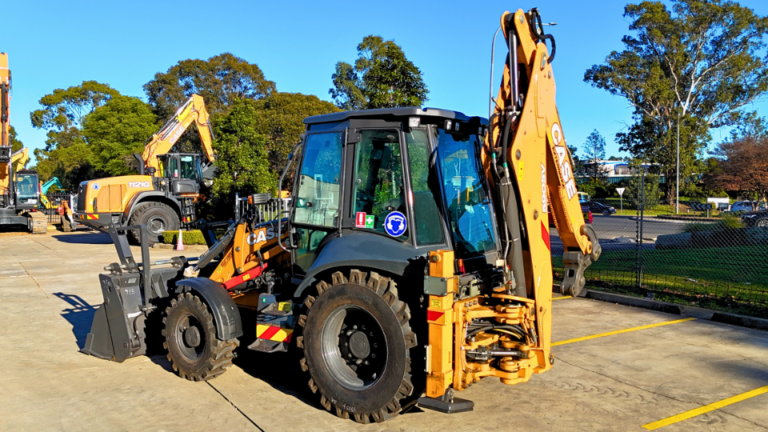

Smart Maintenance Access

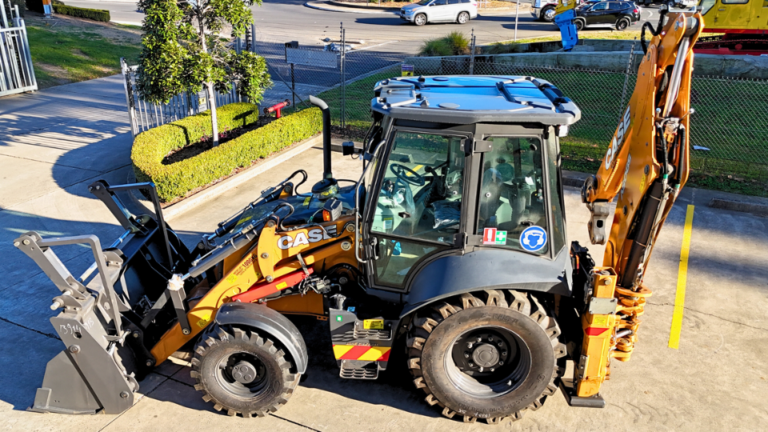

All-Condition Stability
| Name | 590SV |
|---|---|
| Make and Model | FPT NEF - F4HE9484C |
| Injection system | High Pressure Common Rail |
| Emissions level | Tier 3 |
| Cylinders | 4 |
| Bore / Stroke | 104 mm x 132 mm |
| Displacement / Compression ratio | 4.5 ltr / 17.5 to 1 |
| Engine Power (ISO 14396) @2200 rpm | 82 kW (110.0 hp) |
| Maximum torque (ISO 14396) | 516 Nm |
| Engine speeds | 2200 rpm (rated speed at full load) / 950-1000 rpm (low speed at no load) |
| Name | 590SV |
|---|---|
| Type | Powershuttle 4WD / Powershift 4WD |
| Model | Carraro TLB1 MPB 4WD / Carraro TLB2 MPB 4WD |
| Forward travel speeds (kph) | 6 - 10 - 21 - 40 |
| Reverse travel speeds (kph) | 7 - 12 - 26 - 47* |
| Name | 590SV |
|---|---|
| Model | 4WD Heavy duty |
| Oscillation | +/- 11° |
| Name | 590SV |
|---|---|
| Model | Carraro 28.50FR with Differential lock |
| Name | 590SV |
|---|---|
| Service brakes | Hydraulic foot operated, 2 discs per side |
| Parking brakes | Mechanically actuated wet brake pack on transmission output shaft |
| Name | 590SV |
|---|---|
| Type | Hydraulic Power Steering |
| System pressure / Displacement | 180 bar / 160 cc |
| Turning radius 4WD (external radius) with 18” tires | 4300 mm - brakes off / 3600 mm - brakes on |
| Name | 590SV |
|---|---|
| Front | 18” or 20” |
| Rear | 26” or 28” or 30” |
| Name | 590SV |
|---|---|
| Type | Load sensing, closed center hydraulic system with twin gear pump / Load sensing, closed center hydraulic system with variable displacement pump |
| Flow (@ 2200 rpm) | 167 l/min / 15 to 165 l/min |
| Pressure | 205 bar |
| Name | 590SV |
|---|---|
| Engine oil | 13.6 l |
| Transmission oil 2WD/4WD | 20.8 l |
| Front axle 4WD oil | 9.6 l |
| Rear axle oil | 17.8 l |
| Hydraulic oil | 132 l |
| Fuel tank | 132 l |
| Coolant | 24 l |
| Name | 590SV |
|---|---|
| Voltage | 12 V |
| Battery | Single: 95 Ah 900 A or Double: 60 Ah, 600 A (each) |
| Alternator | 120 A |
| Name | 590SV |
|---|---|
| Certification | ROPS / FOPS |
| Air Conditioning | Optional |
| Storage compartments capacity | 45 l including: 2 lockable, cooling box |
| Speedometer | Optional |
| Bluetooth radio | Optional |
| Name | 590SV |
|---|---|
| Internal (cab) | 77 dB(A) |
| External | 102 dB(A) |
