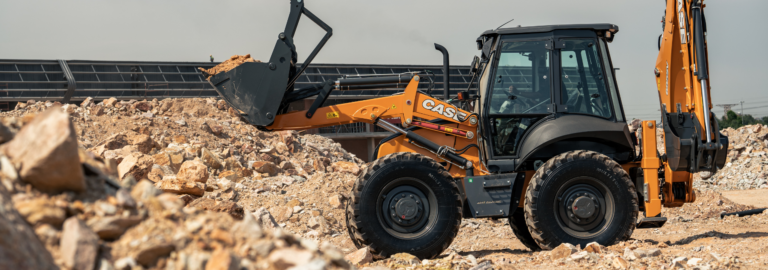

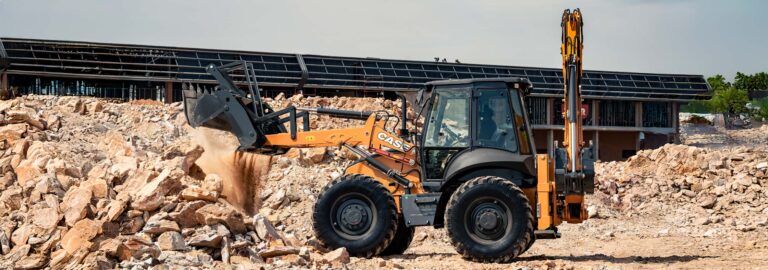

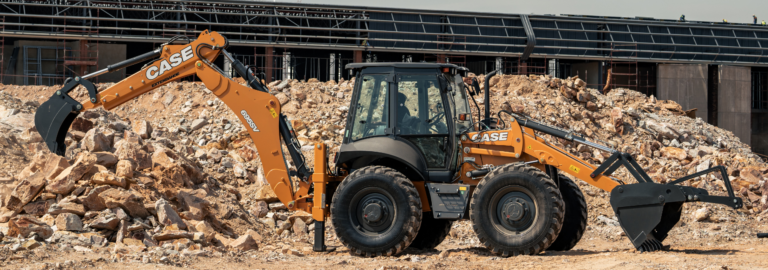

CASE 695SV Backhoe Loader
Model Comparison
- 72 kW (96.6 hp)
- 82 kW (110.0 hp)
- 82 kW (110.0 hp)

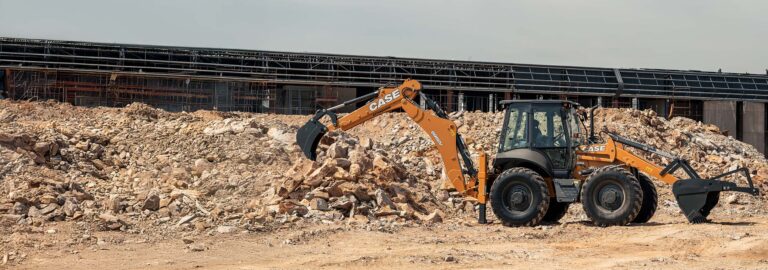

Product Features
The 695SV’s closed-centre load-sensing hydraulic system optimises oil flow for every function, giving faster cycle times and consistent digging power. Its Auto Ride Control feature reduces loader arm bounce, improving travel speed and material retention. With PowerLift engaged, operators gain up to 40% additional lifting force for handling dense or heavy loads. The machine’s four equal-sized tyres ensure even weight distribution, outstanding traction, and smooth operation on all terrain types. Inside the new V-Series cab, comfort meets control. Wide visibility, low interior noise, and premium air suspension seating enhance the operator experience, while intuitive joystick controls allow precise handling in both loader and backhoe operations. Bluetooth connectivity, a mobile mount, and multiple storage options add modern convenience. Ground-level access to filters and check points, along with a front tilting hood, simplifies maintenance and reduces downtime. The 695SV delivers CASE’s hallmark combination of strength, efficiency, and long-term reliability.
Enhanced Operator Environment
Built for all-day comfort, the 695SV’s cab delivers reduced noise levels, improved visibility, and intuitive control placement. The suspended seat and ergonomic layout minimise fatigue, helping operators maintain focus and precision during long, demanding shifts.

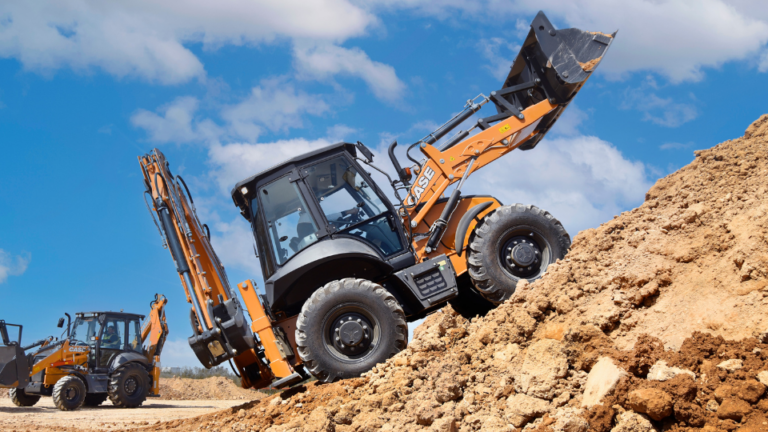

Four-Wheel Steering Versatility

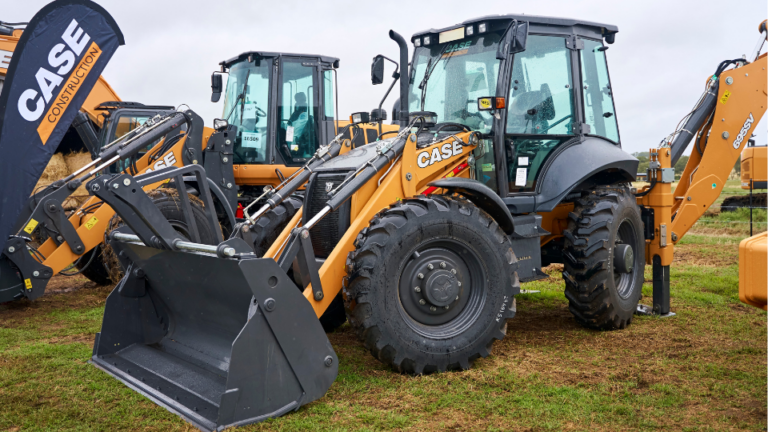

Tool Carrier Front Loader Design

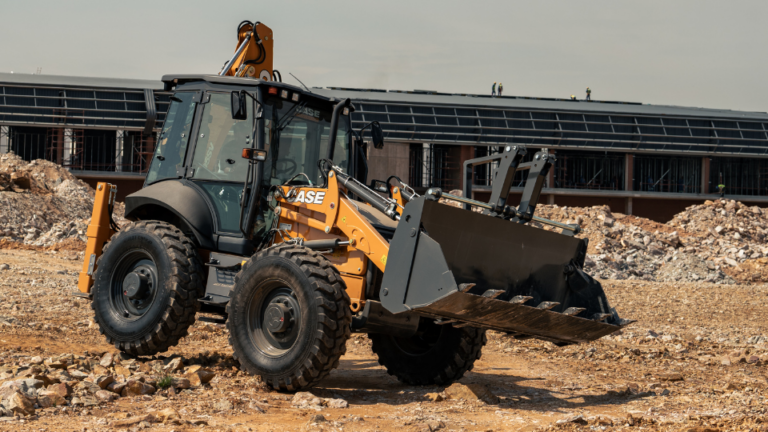

PowerLift and Load-Sensing Hydraulics

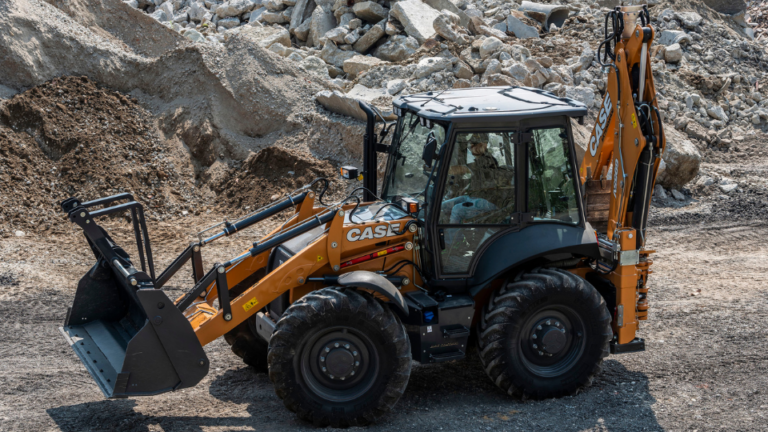

Advanced Cab Comfort and Control
| Name | 695SV |
|---|---|
| Make and Model | FPT NEF - F4HE9484C |
| Injection system | High Pressure Common Rail |
| Emissions level | Tier 3 |
| Cylinders | 4 |
| Bore / Stroke | 104 mm x 132 mm |
| Displacement / Compression ratio | 4.5 ltr / 17.5 to 1 |
| Engine Power (ISO 14396) @2200 rpm | 82 kW (110.0 hp) |
| Maximum torque (ISO 14396) | 516 Nm |
| Engine speeds | 2200 rpm (rated speed at full load) / 950-1000 rpm (low speed at no load) |
| Name | 695SV |
|---|---|
| Type | Powershift 4WD - 4WS |
| Model | Carraro TLB2 MPB 4WS |
| Forward travel speeds (kph) | 6 - 10 - 22 - 39 |
| Reverse travel speeds (kph) | 7 - 12 - 26 - N/A |
| Name | 695SV |
|---|---|
| Model | 4WD with limited slip differential |
| Oscillation | +/- 8° |
| Name | 695SV |
|---|---|
| Model | Carraro 26.43FR with Differential lock |
| Name | 695SV |
|---|---|
| Service brakes | Hydraulic foot operated, 3 discs per side |
| Parking brakes | Mechanically actuated wet brake pack on transmission output shaft |
| Name | 695SV |
|---|---|
| Type | Hydraulic Power Steering |
| System pressure / Displacement | 180 bar / 160 cc |
| Turning radius 4WD (external radius) with 18” tires | 8180 mm in 2WS mode - brakes off / 6820 mm in 2WS mode - brakes on / 4810 mm in 4WS mode - brakes off |
| Name | 695SV |
|---|---|
| Front | 24” or 28” |
| Rear | 24” or 28” |
| Name | 695SV |
|---|---|
| Type | Load sensing, closed center hydraulic system with twin gear pump / Load sensing, closed center hydraulic system with variable displacement pump |
| Flow (@ 2200 rpm) | 167 l/min / 15 to 165 l/min |
| Pressure | 205 bar |
| Name | 695SV |
|---|---|
| Engine oil | 13.6 l |
| Transmission oil 2WD/4WD | 20.8 l |
| Front axle 4WD oil | 11.8 l |
| Rear axle oil | 12.3 l |
| Hydraulic oil | 132 l |
| Fuel tank | 132 l |
| Coolant | 24 l |
| Name | 695SV |
|---|---|
| Voltage | 12 V |
| Battery | Single: 95 Ah 900 A or Double: 60 Ah, 600 A (each) |
| Alternator | 120 A |
| Name | 695SV |
|---|---|
| Certification | ROPS / FOPS |
| Air Conditioning | Optional |
| Storage compartments capacity | 45 l including: 2 lockable, cooling box |
| Speedometer | Optional |
| Bluetooth radio | Optional |
| Name | 695SV |
|---|---|
| Internal (cab) | 77 dB(A) |
| External | 103 dB(A) |
