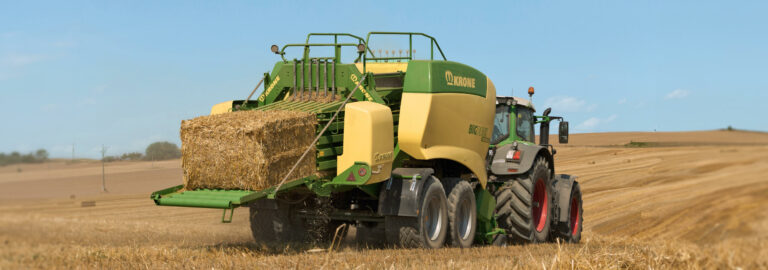

BiG Pack MultiBale Large Square Baler

Model Comparison Product Features Specifications

The Krone BiG Pack HDP II achieves up to 70% higher throughput and up to 10% higher densities than previous generation HDP BiG Packs. HDP II models feature a 30% larger rotor cutter with five rows of tines for increased throughput. The HDP II knotter system utilises eight slim double knotters which expose individual strings to minimal pull. This achieves extremely dense and stable bales, even at high ground speeds. The Krone BiG Pack HDP II is available as an XC model, featuring the 26-blade XCut Cutting System capable of varying nominal cut lengths down to 44mm. XC BiG Packs utilise a 30% bigger rotor cutter with five rows of V-shaped tines.

Model Comparison

Finance Offers

Download Brochure

231 hp
258 hp

Product Features

Smooth Start

All BiG Pack HDP II models are equipped with a hydraulic start assist system consisting of a hydro motor that accelerates the flywheel to 300 rpm before the tractor PTO is engaged.

Smooth Start

All BiG Pack HDP II models are equipped with a hydraulic start assist system consisting of a hydro motor that accelerates the flywheel to 300 rpm before the tractor PTO is engaged.

BiG Pack MultiBale Large Square Baler in Kubota Down To Earth

Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their BiG Pack MultiBale Large Square Baler.

First Class Field Work

DTE Issue 4

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	BP1290HDPII Baler	BP1290HDPII-XC Baler
Chamber Width	1,200 mm	1,200 s/m
Chamber Height	900 mm	900 mm
Bale Length Min.	1,000 mm	1,000 mm
Transport Width (depending on tyres)	3,000 mm	3,000 mm
Weight (approx.)	14,700 kg	15,800 kg
Transport Length	9,130 mm	9,130 mm
Working Length	10,800 mm	10,800 mm
Height	3,710 mm	3,710 mm
Width (depending on tyres)	2,995 mm	2,995 mm
Cutting length Min.	0 mm	44 mm
Tyre Size	620 / 55 R 26.5	620 / 55 R 26.5

Specifications

Name	BP1290HDPII Baler	BP1290HDPII-XC Baler
PTO Min.	231 hp	258 hp
Xcut Rotor / No. of Knives		26
PTO Shaft 20 Spline 1 3/4"
Tandem Steering
Double Knotter – V Knotter
Knotters	8	8
Twine Storage	54	54
Strokes Per Minute	45	45

Standard Options

Name	BP1290HDPII Baler	BP1290HDPII-XC Baler
Hydraulic Fold Down Twine Boxes
Knotter Hood Van Kit
Auto Unblock Function for VFS Packer
Auto Switch-off for Pickup and Rotor Drive
Belt Drive for Rotor and Pickup
Slip Indicator on Monitor
Comfort ECU (monitor not included)
Electric Bale Length
Active Pickup with Active Driven Auger
Integrated Weight Scale with 4 Weight Cells
Work Lights for Knotter Platform
Hydraulic Parking Jack
Krone Twine Rolls Included	12	12

Standard Extras

Name	BP1290HDPII Baler	BP1290HDPII-XC Baler
Retrofit STW Power Harness for Non Isobus Tractor
Isobus Terminal Option	CCI800 / CCI1200	CCI800 / CCI1200
Retrofit Hydraulically Driven PowerClean Fan Kit (approx. 20 hours to fit)
Hydraulic PTO Soft Start Fitted
Knotter Emergency Kit (inc. bill hooks, tongues, knife arm etc.)
Additional Air Hose for Air Cleaner (mount to tractor cab roof)
Ball Joint Drawbar Eye CAT 4 - 50mm (CAT 3 - 40mm available as an option)
Swivel Hitch	51 mm	51 mm
Extra LED Work Lights & Beacon Light
Safety Chain
