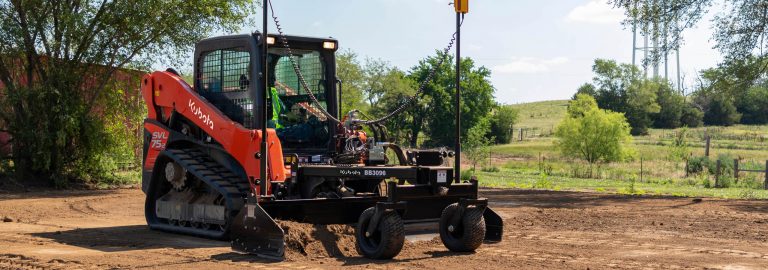

Box Blades BB30 Series

Model Comparison Product Features Specifications

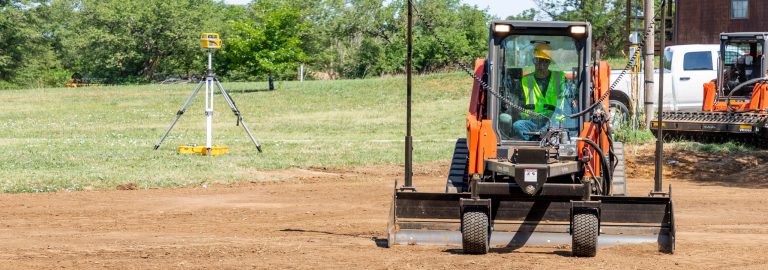

The BB30 Box Blade allows users the option of rough or precision grading finishes. Basic grading work can be done in applications requiring a rough grade such as landscaping and initial surface prep. Precision grading can be accomplished with the addition of a laser system to accurately control site preparation and flat-work operations. This dual-plane grader will automatically lift and tilt as it moves over the ground for precision grading and is designed specifically for use with Kubota power units.

Model Comparison

Finance Offers

Download Brochure

213 cm
244 cm

Product Features

Side Cutters

Reversible side cutters are manufactured from wear-resistant AR400 steel and are reversible and replaceable.

Side Cutters

Reversible side cutters are manufactured from wear-resistant AR400 steel and are reversible and replaceable.

Specifications

Highlight differences

Download Brochure

Specifications

Name	BB3084	BB3096
Working Width	213 cm	244 cm
Base Weight	833 kg	870 kg
Foam Fitted Tyres
Parabolic Mirror

Hydraulics

Name	BB3084	BB3096
Max. Flow	95 L/min	95 L/min
Max. Pressure	3,500 psi	3,500 psi
Pilot Cylinder Control Valve
Welded Lift Cylinder Bore	76 mm	76 mm
Welded Tilt Cylinder Bore	63.5 mm	63.5 mm

Blade

Name	BB3084	BB3096
Blade Lift Pins	2.5 cm	2.5 cm
Tilt Pin	7.6 cm	7.6 cm
Grader Blade Thickness	13 mm	13 mm
Grader Blade Width	152 mm	152 mm
Reversible Side Cutters Thickness (AR400 Steel)	12.7 mm	12.7 mm
Reversible Side Cutters Width (AR400 Steel)	152 mm	152 mm
End Panels - Replaceable - Grade 50	9.5 mm	9.5 mm
Floating Blades Front and Rear
