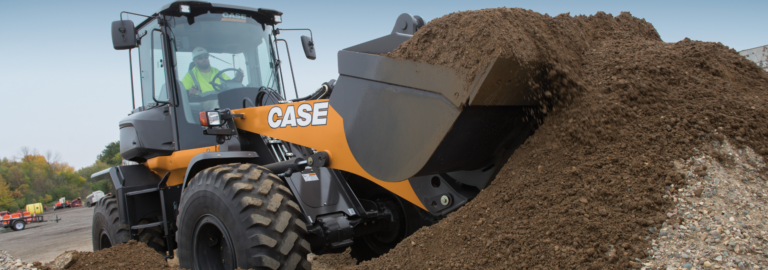

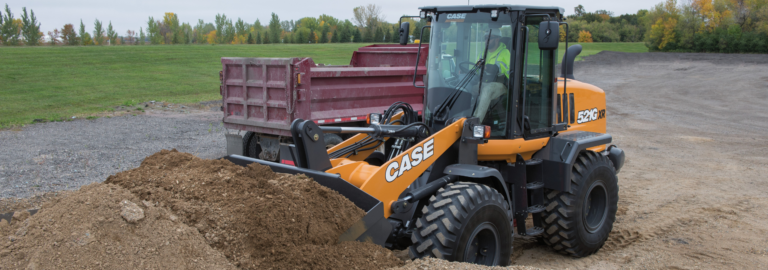

CASE 521G Wheel Loader

The CASE 521G delivers dependable breakout force, smooth hydraulic action and consistent output across long working days. The FPT engine runs clean without EGR and maintains strong torque under load, while the cooling cube layout keeps temperatures steady even in hot, dusty Australian conditions. This gives operators the confidence to push into piles, load trucks and handle bulk material without feeling the machine labour. Inside the cab, the eight inch display, seat mounted controls and quiet operating environment create a steady workspace for accurate machine control. Wide visibility and well placed joysticks allow operators to maintain strong awareness and smooth inputs while working close to trucks, stockpiles or site boundaries. The result is a compact loader that feels stable, responsive and easy to control in tight or open areas.

Model Comparison

Finance Offers

Download Brochure

106 kW (142.1 hp)

Product Features

The 521G offers Z Bar, XR and XT linkage options, allowing buyers to match the machine to specific tasks such as bulk handling, stockpiling or loading with extended reach. The load sensing hydraulic system keeps cycle times fast and consistent, while maintaining smooth control across the full lift and tilt range. Bucket options, tyre choices and factory quick couplers add further flexibility, letting owners set up the loader for farm duties, council yards, quarry work or construction sites. Daily operation is kept simple through smart layout and strong component access. With heavy duty axles, robust build quality and SiteWatch connectivity available, owners gain long term reliability and clear insight into machine performance and maintenance. Combined with low effort servicing and a comfortable operator station, the 521G supports high output while keeping running costs predictable and downtime minimal.

Powerful Output

The CASE 521G delivers the power and control needed for steady daily work across farms, council yards and construction sites. Its hydraulic system reacts smoothly to bucket and lift movements, giving operators confident control when pushing into piles or loading trucks. With multiple linkage choices and a compact footprint, the machine stays productive in tight spaces and open work areas alike.

Powerful Output

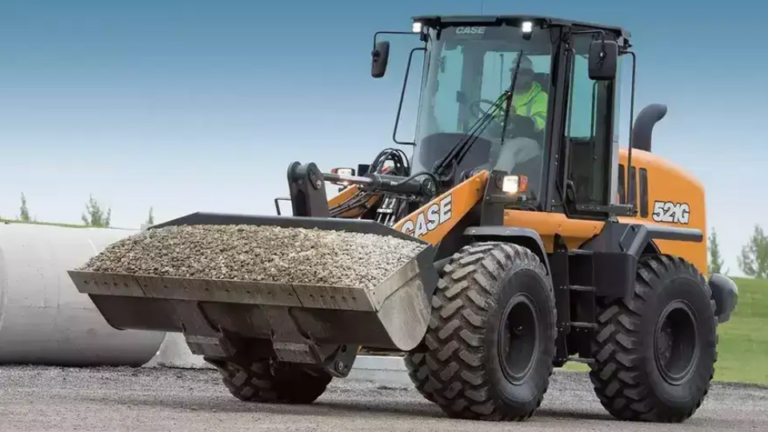

Confident Handling in All Conditions

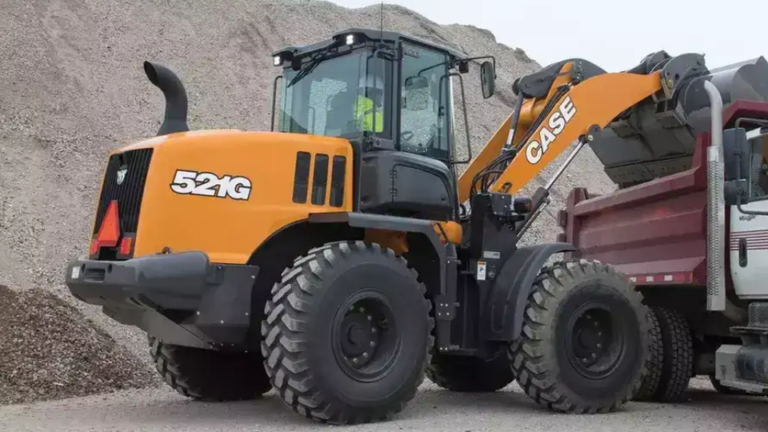

Fast and Reliable Cycle Performance

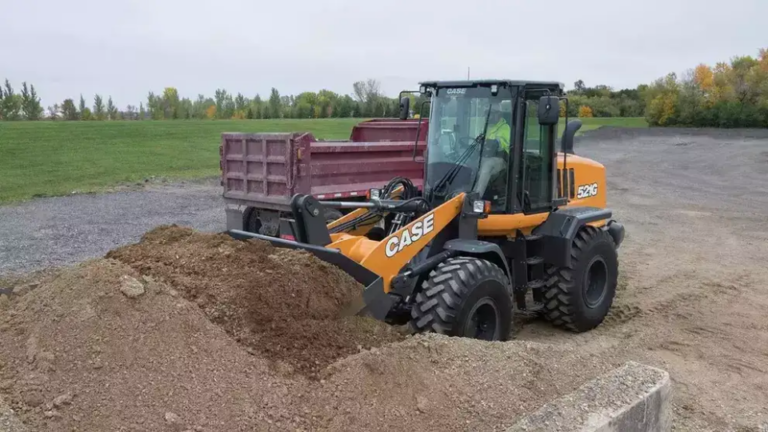

Stable Handling Under Load

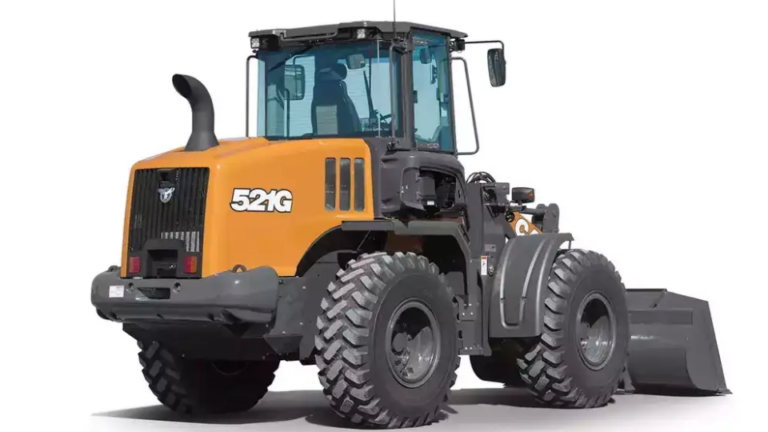

Built for Tough Daily Conditions

Specifications

Download Brochure

Engine

Name	521G
Maker & Model	FTP N45
No. of cylinders	4
Displacement (l)	4.5
Air intake	Turbocharger with air-to-air cooling. No EGR valve is used: Only fresh air is taken for combustion and no extra cooling system is needed.
Injection	Common Rail Multiple Injection.
After Treatment System	HI-eSCR 2 (DOC+SCRoF)
Emission level	Compliant with EU Stage IV
Maximum power	106 kW (142.1 hp)
@ Engine speed (ISO 14396) (rpm)	1800
Maximum Torque	612 Nm
@ Engine speed (ISO 14396) (rpm)	1800

Transmission

Name	521G
ProShift	-
4-speed ZF Powershift	with Intelligent Clutch Cut Off (ICCO)

Axles

Name	521G
Heavy Duty ZF Axles with Limited Slip Differential on both front and rear axle	-
Heavy Duty ZF Axles with automatic 100% differential lock on front and open
Heavy Duty ZF Axles with automatic 100% differential lock on front and LSD on rear axle	-
Standard ZF Axles with Limited Slip Differential on both front and rear axle
Axles oscillation angle (total)	24 °

Tires

Name	521G
Standard tire’s size	17.5R25

Brakes

Name	521G
Service brake	Maintenance free, self-adjusting wet 4-wheel disc brakes.
Service brake disc area (m²/hub)	0.31
Parking brake	With the negative brake all four wheels are automatically stopped when the engine is stopped.
Parking brake disc area	58 cm²

Hydraulics

Name	521G
Loader control valve	Bosch-Rexroth, closed center, load sensing/flow sharing.
Steering	Steering cylinders actuated by hydraulic orbitrol under priority valve, controlled, in turn, by active load sensing signal.
Loader controls	Pilot with proportional solenoid valves controlled by electro-hydraulic single joystick or single-axis 2/3 levers.
Pump type	Single, variable displacement
Max oil flow	134 l/min
@ engine speed	2,000 rpm

Auxiliary Hydraulics

Name	521G
Max oil flow	134 l/min
Max pressure (bar)	249 - 255

Fluid Capacities

Name	521G
Fuel tank, usable volume	189 L
DEF (AdBlue®) tank	41.3 L
Engine coolant	22 L
Engine oil	12 L
Hydraulic oil tank	57 L
Total hydraulic system oil	114 L
Front and Rear Axles	22+22
Transmission oil	19 L

Cab Protection

Name	521G
Protection against falling objects (FOPS)	According to ISO EN 3449 std.
Protection against roll-over (ROPS)	According to ISO EN 13510 std.

Noise and Vibration

Name	521G
In the cab - LpA (dB) (ISO 6396-2008)	68
Outside - LwA (dB) (2000/14/EC)	102
Vibrations	Operator ‘s seat meets the criteria of ISO 7096:2000. The vibrations transmitted do not exceed 0.5 m/s²

Electrical System

Name	521G
System voltage	24 V
Batteries (n° x V)	2 x 12
Alternator - capacity	70 A
