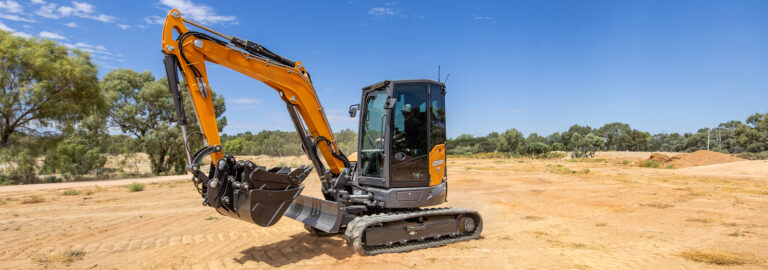

CASE CX58D Excavator
Model Comparison
- N/A
- N/A
Product Features
The CX35D sets a new benchmark for maintenance efficiency with its innovative tiltable cab design, providing immediate, ground-level access to the engine and core hydraulic components. This model prioritizes operator security with a structure that is fully ROPS, TOPS, and FOPS Level 1 certified, with an optional Level 2 protection grid available for high-risk applications. Standard high-output LED working lights on the boom ensure maximum visibility in low-light conditions, while the interior features a premium fabric seat with mechanical suspension to reduce operator fatigue during long shifts. Equipped with a high-performance Load Sensing closed-center system, the CX35D features a variable flow pump with a massive 101 L/min capacity, enabling smooth, simultaneous movements even under heavy loads. The machine utilizes servo-assisted joysticks with electro-hydraulic proportional controls, providing the extreme precision needed for delicate grading or technical utility work. Productivity is further enhanced by the automatic two-speed travel system, which shifts between gears based on traction demands, allowing the machine to maintain a powerful 3500 daN traction force across varying soil conditions.
Precision Attachment Control:
The machine is equipped with a priority auxiliary system featuring a holding function and electro-proportional switches on both joysticks for granular control of complex attachments.
| Name | CASE CX35D | CASE CX58D |
|---|---|---|
| KUBOTA D1703-M STAGE 5 | N/A | |
| Max. Power | 24.4 HP | 59.4 HP |
| Displacement | 1,647 cm³ | 2,615 cm³ |
| Number of cylinders | 3 n° | 4 n° |
| Cooling | Liquid | Liquid |
| Consumption | 3.5 l/h | 7.6 l/h |
| Alternator | 12 V | 12 V |
| Battery | 12 V | 12 V |
| Name | CASE CX35D | CASE CX58D |
|---|---|---|
| Pump type | 1 LS variable pump | LS hydraulic variable pump with electronic control + 1 gear pump |
| Pump displacement | 48 cm³ | 65 + 14.5 cm³ |
| Pump capacity | 101 l/min | 129 + 28.8 l/min |
| Max. circuit calibration pressure bar | 260 | 280 |
| Auxiliary system (max pressure): AUX 1 | single or double effect 50 - 200 left / 250 right l/min (bar) | single or double effect 80 - 200 left / 280 right l/min (bar) |
| Auxiliary system (max pressure): AUX 2 | double effect - optional 32/20 - 250 l/min (bar) | double effect - optional 45/39 - 280 l/min (bar) |
| Auxiliary system (max pressure): AUX 3 | double effect - optional 32/20 - 250 l/min (bar) | "optional 75/58 - 280" l/min (bar) |
| Circuit Type | LS closed center system with Flow Sharing control valve | LS closed center system with “Flow Sharing” control valve |
| Name | CASE CX35D | CASE CX58D |
|---|---|---|
| Travelling speed (AUTO TWO SPEED) | 1st : 0 ÷ 2.7 / 2nd : 0 ÷ 4.3 km/h | 1st : 0 ÷ 2.5 / 2nd : 0 ÷ 4.5 km/h |
| Slew speed | 10.5 RPM | 11 RPM |
| Name | CASE CX35D | CASE CX58D |
|---|---|---|
| Boom, dipper stick, bucket and turret swing | 2 pilot joysticks | 2 pilot joysticks |
| Track movements (included counter rotation) | 2 pilot levers | 2 pilot levers |
| Dozer blade | pilot lever | pilot lever |
| Auxiliary system: AUX 1 | electroproportional switch on right joystick | electroproportional switch on right joystick |
| Auxiliary system: AUX 2 | electroproportional switch on left joystick | - |
| Boom swing | electroproportional switch on left joystick | electroproportional switch on left joystick |
| Name | CASE CX35D | CASE CX58D |
|---|---|---|
| Transport weight with canopy | - kg | 5,440 kg |
| Transport weight with cab | 3,330 Kg | - Kg |
| Operating weight with canopy | - Kg | - Kg |
| Operating weight with cab | 3,480 Kg | 5,670 Kg |
| Name | CASE CX35D | CASE CX58D |
|---|---|---|
| Fuel tank | 49 Litres | 85 Litres |
| Hydraulic oil tank | 33.5 Litres | 60 Litres |
| Hydraulic circuit capacity | 54 Litres | 80 Litres |
| Cooling system capacity | 7.5 Litres | 12 Litres |
| Engine oil | 7 Litres | 10.2 Litres |
