Max Chisel Disc Ripper

Model Comparison Product Features Specifications

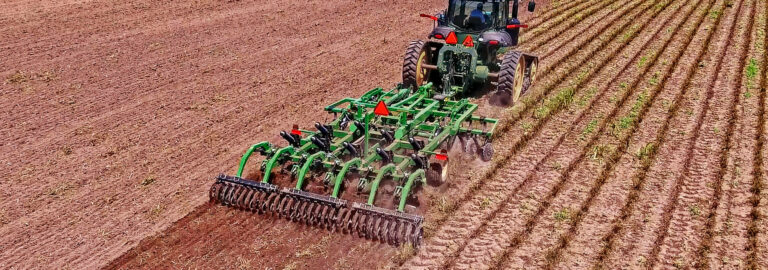

Max Chisel Disc Ripper previewMax Chisel Disc Ripper
The Max‐Chisel is an aggressive primary tillage tool that works at a shallower depth and leaves fields smoother and more uniform than most traditional disk rippers. With a patented “samurai edge,” the blades aggressively remove root balls while mixing and incorporating residue in the top 10cm to 13cm of soil, chopping it to accelerate the decaying process. All feature hydraulically‐adjustable disc gang depth control and heavy duty toggle‐trip reset shanks that can till up to 30.5cm deep. With 1,111kg of horizontal trip force, these shanks will not pull out of hard ground like a traditional chisel.

Model Comparison

Finance Offers
Download Brochure
  • 3,500 mm
  • 4,260 mm
  • 5,030 mm
  • 5,790 mm
  • 7,320 mm

Product Features

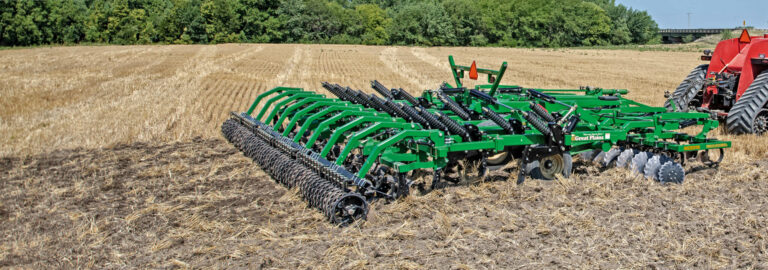

kubota previewkubota
1
2
3
4

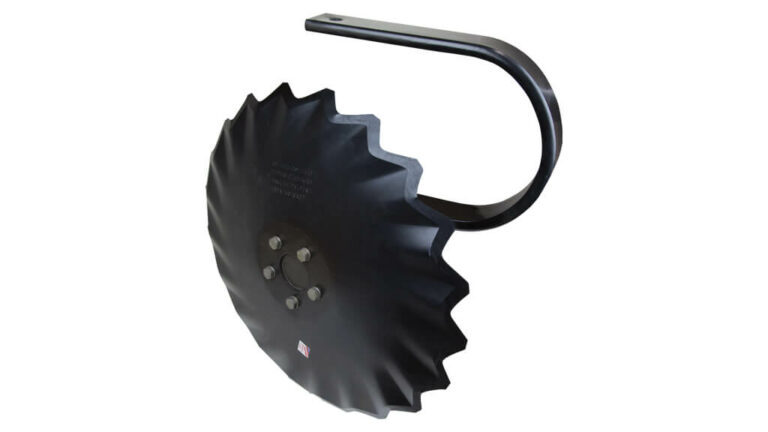

Individually Mounted Samurai Edge Discs

Individually Mounted Samurai Edge Discs

Two opposing rows of individually mounted 610mm discs size residue and mix the top 100-125mm of soil. The exclusive Samurai edge Turbo blades are highly effective at chopping and mixing residue as well as performing in wet conditions. Disc Gangs are hydraulically height adjustable, offering flexibility up to 4" (10cm) deep. All blades feature maintenance‐free tapered bearings in a cast hub with six‐lip interlocking seals to keep grease in and dirt out.

Individually Mounted Samurai Edge Discs

Two opposing rows of individually mounted 610mm discs size residue and mix the top 100-125mm of soil. The exclusive Samurai edge Turbo blades are highly effective at chopping and mixing residue as well as performing in wet conditions. Disc Gangs are hydraulically height adjustable, offering flexibility up to 4" (10cm) deep. All blades feature maintenance‐free tapered bearings in a cast hub with six‐lip interlocking seals to keep grease in and dirt out.

Individually Mounted Samurai Edge Discs

Specifications

Download Brochure
Dimensions & Weight
Name MC5109 MC5111 MC5313 MC5315 MC5319
Transport Width 4,500 mm 5,300 mm 4,420 mm 4,420 mm 4,500 mm
Working Width 3,500 mm 4,260 mm 5,030 mm 5,790 mm 7,320 mm
Weight 4,613 kg 5,638 kg 6,613 kg 7,629 kg 10,342 kg
Name MC5109 MC5111 MC5313 MC5315 MC5319
Frame Design Rigid Rigid Folding Folding Folding
Recommended Use Primary Tillage Primary Tillage Primary Tillage Primary Tillage Primary Tillage
Min. PTO Required 250 hp 300 hp 350 hp 400 hp 500 hp
Tyre Size 12.5 x 15 12.5 x 15 340/60R 16.5 340/60R 16.5 12.5L x 15"
No. of Shanks 9 11 13 15 19
Shank Spacing 380 mm 380 mm 380 mm 380 mm 380 mm
Coulter Spacing 191 mm 191 mm 191 mm 191 mm 191 mm
No. of Coulters 22 26 30 34 42
Max. Working Depth 305 mm 305 mm 305 mm 305 mm 305 mm
Shank Trip Force 1,111 kg 1,111 kg 1,111 kg 1,111 kg 1,111 kg
Name MC5109 MC5111 MC5313 MC5315 MC5319
HD Parabolic Shank
178mm Winged Point
Finishing Tool Chopper Wheels w/ ML Roller Chopper Wheels w/ ML Roller Chopper Wheels w/ ML Roller Chopper Wheels w/ ML Roller Chopper Wheels w/ ML Roller
Name MC5109 MC5111 MC5313 MC5315 MC5319
Disc Size 610 mm 610 mm 610 mm 610 mm 610 mm
Auto Reset Shanks
Shank Spacing 380 mm 380 mm 380 mm 380 mm 380 mm
LED Light Package
Single Point Depth Stop
Axle Type Walking Tandem Walking Tandem Walking Tandem Walking Tandem Walking Tandem
