Case Compact Dozer Loader DL550

Model Comparison Product Features Specifications

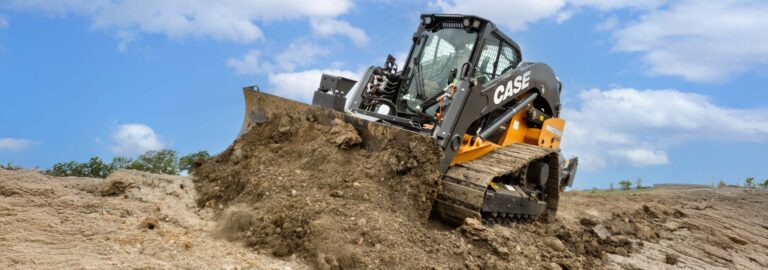

Case Compact Dozer Loader DL550 previewCase Compact Dozer Loader DL550

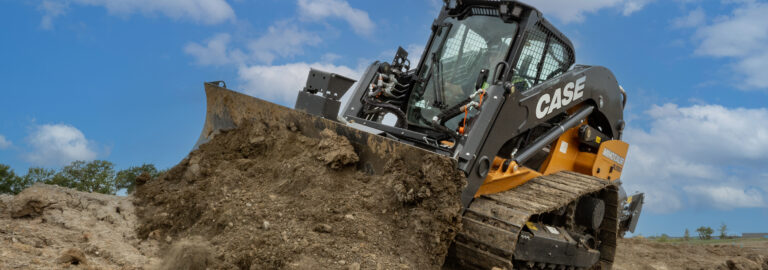

Part dozer. Part loader. All beast. Meet the CASE Minotaur™ DL550 — an all-new, industry-first equipment category: the compact dozer loader. The integrated C-frame delivers true dozer performance and the agility and finesse of a loader. CASE Universal Machine Control allows you to use the precision construction technology you prefer*. It’s compatible with hundreds of attachments, and the addition of an industry-exclusive fully integrated ripper makes this machine one-of-a-kind. It has the strength, attitude and intelligence to stake a claim as the industry’s most versatile and powerful compact machine. Minotaur demonstrates CASE's commitment to delivering real-world innovation rooted in customer need. With 29 patents**, more than 10,000 field test hours, multiple customer clinics, countless operator evaluations, product refinements and even more evaluations after that — we've put this machine to the test to deliver you the highest standard in quality. Built mean for tough conditions and smart for precision grading, you can take it all on with confidence. Transform your operation with CASE Construction Equipment.

Model Comparison

Finance Offers
Download Brochure
  • 85 kW (114.0 hp)

Product Features

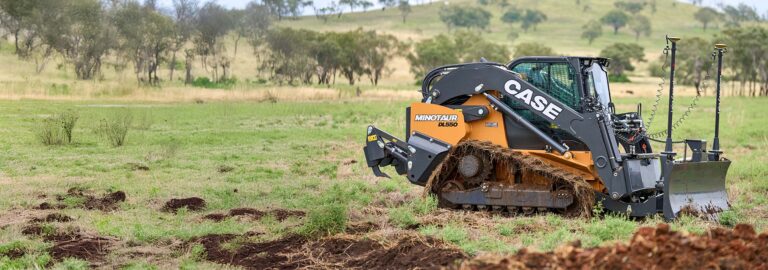

kubota previewkubota
1
2
3
4

Fully Chassis-Integrated C-Frame

The C-frame of the machine fully connects and couples back into the body of the machine, as well as at the front coupler. This provides the stability and smooth operating plane of a small dozer to ensure that all operating power is channeled through the whole body of the machine.

Fully Chassis-Integrated C-Frame

The C-frame of the machine fully connects and couples back into the body of the machine, as well as at the front coupler. This provides the stability and smooth operating plane of a small dozer to ensure that all operating power is channeled through the whole body of the machine.

Specifications

Download Brochure
Specifications
Name DL550
Engine FPT F5B FL413 D
Gross Horsepower 85 kW (114.0 hp)
Net Horsepower 85 kW (114.0 hp)
Peak Torque 460 Nm
Displacement 3.4 L
Emissions Certification* Solutions Tier 4 Final Certified (SCR, DOC)
Drawbar Pull – Steel 11,739 kg
Drawbar Pull – Rubber 7,116 kg
Rated Operating Capacity (ROC) 35% 1,750 kg
Rated Operating Capacity (ROC) 50% 2,500 kg
Tipping Load 4990

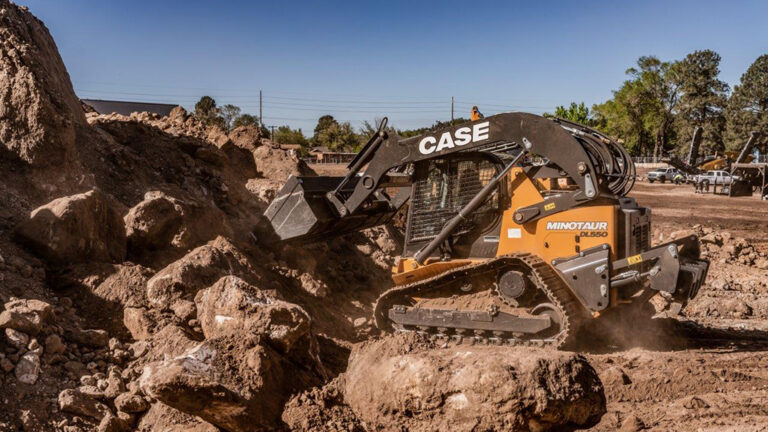

Bucket Breakout Force 57.4 kN
Standard Enhanced Flow Hydraulics 157 L/min
Operating Weight w/Ripper, w/18-in Steel Track 8,444 kg
Operating Weight w/o Ripper, w/18-in Steel Track 8,527 kg
Name DL550
Straight Blade Width 2.44 m
Ripper Cut Width 1.32 m
Height to Bucket Hinge Pin 3.56 m
Dump Height with Heavy-Duty Bucket 2.77 m
Height to Top of ROPS 2.15 m
Overall Length with Blade w/o Ripper 4.29 m
Overall Length with Blade with Ripper 4.86 m
Overall Length with Heavy-Duty Bucket 4.04 m
Over the Track Width – 14 in (356 mm) SALT HD (Single Grouser) 1.89 m
Over the Track Width – 18 in (457 mm) SALT HD (Triple Grouser) 2 m
Over the Track Width – 17.7 in Rubber Track 1.99 m
Track Length on Ground (Rubber) 1.88 m
Track Length in Ground (Steel – Both Configurations) 1.68 m
