1650L

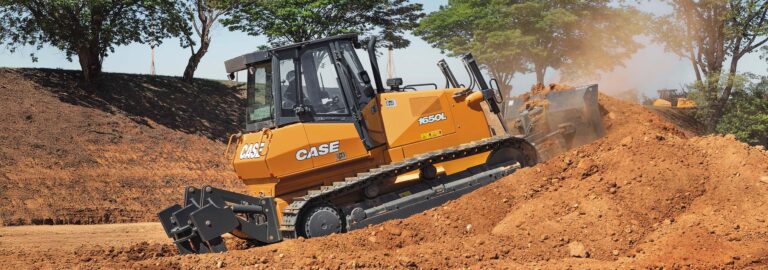

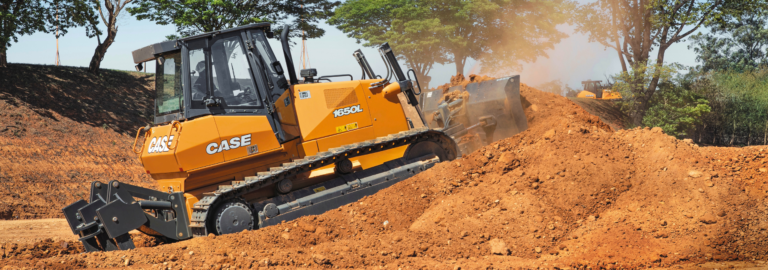

CASE 1650L Crawler Dozer

The CASE 1650L Crawler Dozer delivers exceptional pushing power, control and reliability for demanding applications across construction, infrastructure and civil projects. Powered by a 6.7 litre FPT engine producing 146 horsepower, it combines best in class drawbar pull with advanced hydrostatic drive technology for smooth operation and constant traction. The dual path hydrostatic transmission ensures power is always delivered efficiently to the ground, giving operators superior control when dozing, grading or operating on uneven surfaces. The adjustable PAT blade allows for precise material handling across a wide range of applications, while the extra long track frame provides excellent stability, flotation and balance on all terrain. Built for heavy duty performance, the 1650L combines strength with operator comfort and advanced design. Its rugged build and high torque output make it ideal for road building, subdivision and site preparation work. Whether working on fine grading or heavy cuts, the 1650L offers the responsiveness and power needed to maximise productivity while keeping fuel consumption low.

Model Comparison

Finance Offers

Download Brochure

97 kW (130.1 hp)
116 kW (155.6 hp)

Product Features

The spacious L Series cab is designed for all day comfort and control, providing excellent visibility, reduced noise and a stable environment for precise operation. The ergonomic electro hydraulic joystick gives operators customisable reversing and steering sensitivity, allowing faster cycles and greater accuracy in every movement. A fully adjustable air suspension seat and powerful air conditioning system reduce fatigue and keep operators comfortable through long shifts, improving overall efficiency and focus. Maintenance has been made simple with ground level access to key service points and a tilting cab for full component access. The sealed and lubricated undercarriage, combined with triple reduction final drives, delivers durability and smooth performance in the toughest conditions. With proven reliability, advanced design and comprehensive support through AHS Group and the nationwide CASE network, the 1650L Crawler Dozer is built to deliver consistent performance and lower total ownership costs for Australian operators.

Drawbar Pull

The 1650L delivers exceptional drawbar performance thanks to its hydrostatic transmission and powerful 6.7 litre FPT Industrial engine. Together, they provide best in class pulling capacity and total control under load. Operators can adjust power settings and responsiveness directly from the cab to match the task, achieving faster cycle times, improved traction and smoother operation across all ground conditions.

Drawbar Pull

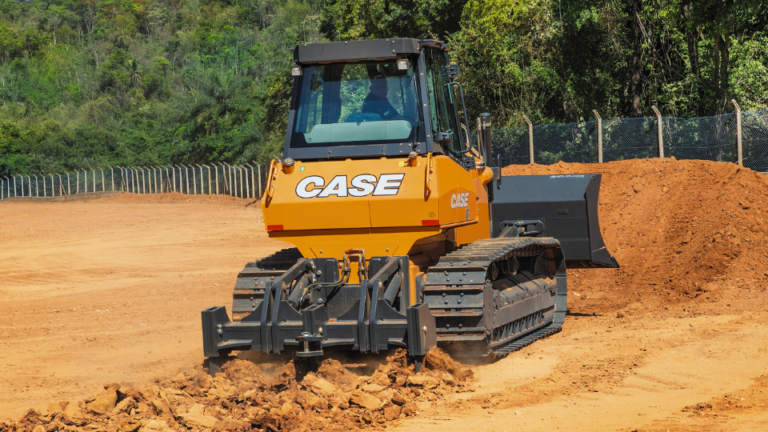

Unmatched Pushing Power

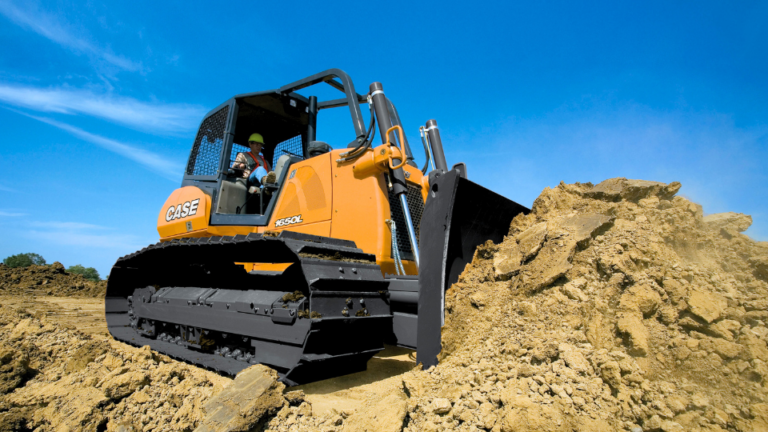

Built for Precision and Control

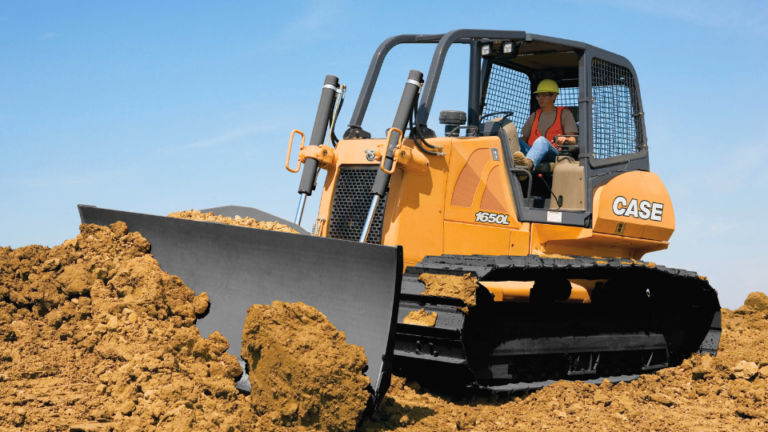

Comfort and Visibility

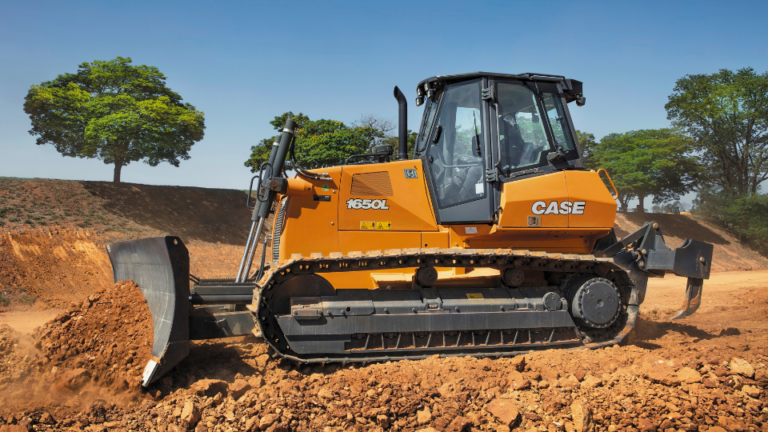

Easy Service and Maximum Uptime

Specifications

Download Brochure

Engine

Name	1650L
Model	FPT Industrial Engine F4HE9684U
Engine Displacement	6.7 L
Cylinders	6
Emissions Certification	N/A
Fuel System	Direct common rail
Cooling Type	Liquid
Rated Engine Speed	2,200 rpm
Gross Horsepower	116 kW (155.6 hp)
Net Horsepower	107 kW (143.5 hp)
Peak Torque	690 Nm

Drivetrain

Name	1650L
Transmission Type	Single lever control electronic tracking
Steering Type	Hydrostatic
Max Drawbar Pull	275 kN
Travel Speed – Forward	9.7 km/h
Travel Speed – Reverse	9.7 km/h

Electrical

Name	1650L
Alternator	65 Amp
Battery	2X12 V in series, maintenance free, 750 A CCA at -18°

Dimensions and Weight

Name	1650L
Operating Weight	17,960 kg
Height	3,285 mm
Ground Clearance	347 mm
Overall Length	6,801 mm
Width over tracks	3,200 mm

Hydraulics

Name	1650L
Pump flow	132 L/min

Blade

Name	1650L
Variable blade pitch - adjustable	55° to 60°
Lift speed - per second	483 mm
Cutting edge	Reversible, replaceble
Width	200 mm
Length	2,158 mm
Thickness	19.1 mm
