2050M

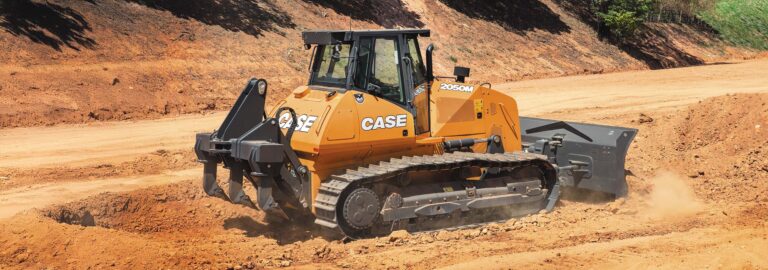

CASE 2050M Crawler Dozer

The CASE 2050M Crawler Dozer is the most powerful in the CASE lineup, built for maximum productivity, control and endurance on the toughest job sites. Powered by a 6.7 litre FPT Industrial engine producing 214 horsepower, it delivers unmatched pushing strength, precise responsiveness and fuel efficient performance. The dual path hydrostatic transmission ensures constant traction and fine control, allowing operators to push through heavy loads with smooth, consistent power in every pass. Designed for large scale civil, infrastructure and mining applications, the 2050M offers a balance of raw strength and intelligent control. Its fully adjustable PAT and Semi U blade options give operators flexibility for all types of dozing, grading and material handling work. With the machine’s long track frame and optimised weight distribution, you get superior stability, flotation and control on any terrain.

Model Comparison

Finance Offers

Download Brochure

173 kW (232.0 hp)
90 kW (120.7 hp)

Product Features

The 2050M is engineered with operator comfort and visibility at the forefront. The cab is positioned further forward on the chassis, giving a clear view of the blade and work area for greater precision and safety. A low noise interior, air suspension seat and ergonomic joystick controls create a productive workspace where operators can perform at their best through long shifts. Serviceability is simple with ground level access to all major components and wide opening side panels that make daily checks fast and easy. The efficient “V” shape cooling system with a reversible fan maintains ideal operating temperatures and reduces maintenance requirements. Backed by AHS Group and the nationwide CASE support network, the 2050M delivers dependable performance, long term durability and total confidence on every job.

Productivity and Performance

The CASE 2050M is built for high production and heavy earthmoving, delivering the most power in the CASE dozer lineup. Its 6.7 litre FPT engine and advanced hydrostatic transmission work together to deliver smooth, consistent pushing power and exceptional controllability. The dozer is fully compatible with machine control and grade systems, giving operators precise command and faster completion times across all site preparation and bulk earthmoving projects.

Productivity and Performance

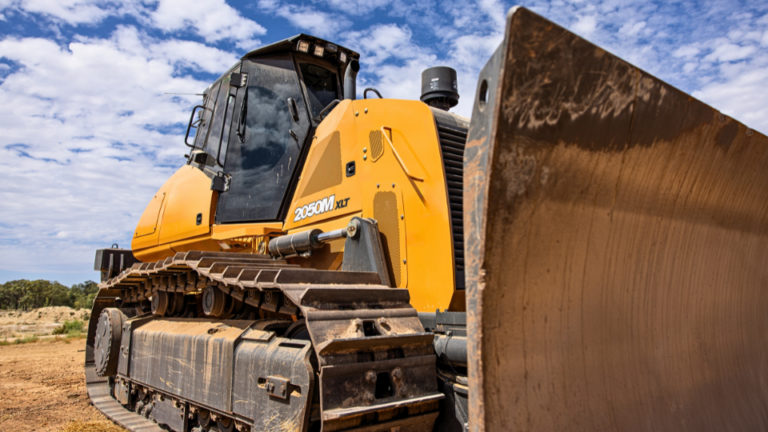

Maximum Power and Traction

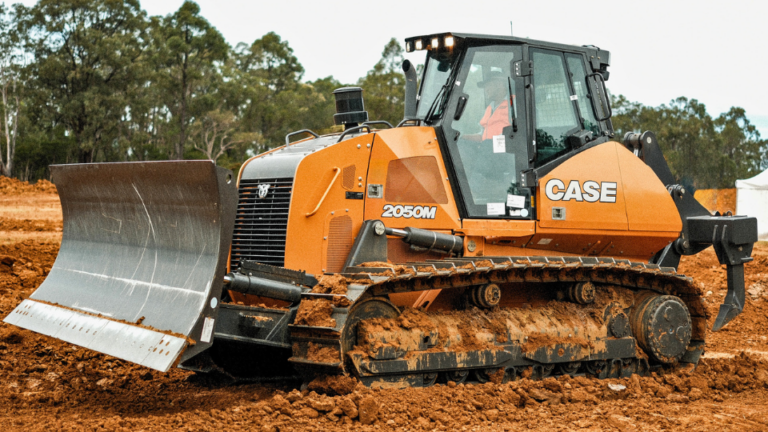

Advanced Cooling and Efficiency

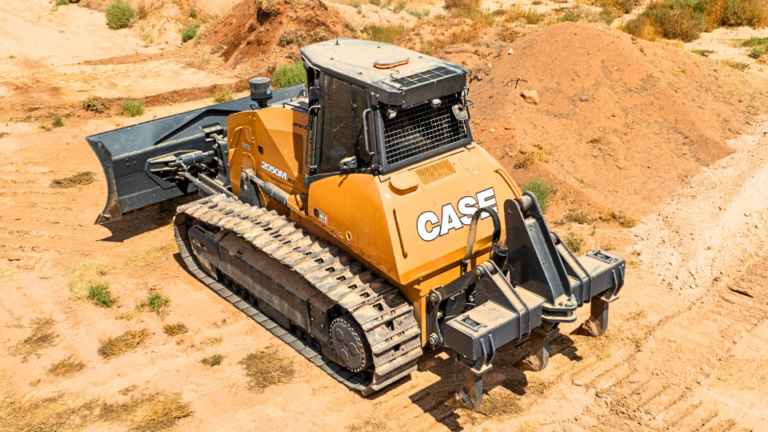

Operator Comfort and Visibility

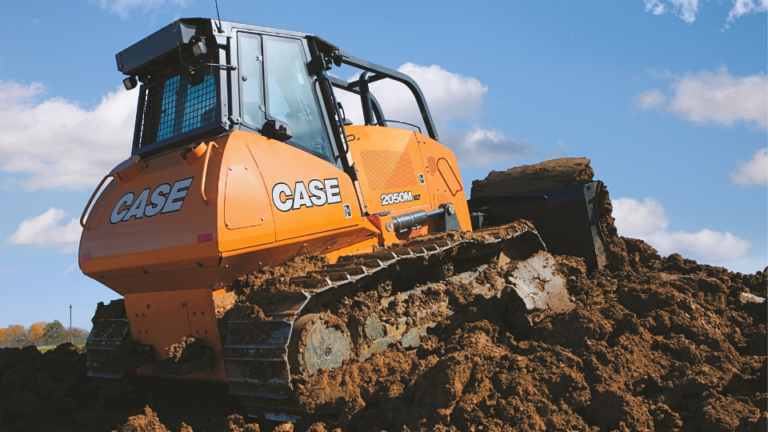

Built for Service and Durability

Specifications

Download Brochure

Engine

Name	2050M
Model	FPT Industrial Engine F4HE96848
Engine Displacement	6.7 L
Cylinders	6
Emissions Certification	Tier 3
Fuel System	Common rail
Cooling Type	Liquid
Rated Engine Speed	2,200 rpm
Gross Horsepower	173 kW (232.0 hp)
Net Horsepower	160 kW (214.6 hp)
Peak Torque	1,082 Nm

Drivetrain

Name	2050M
Transmission Type	Dual path hydrostatic
Steering Type	Hydrostatic
Max Drawbar Pull	360 kN
Travel Speed – Forward	9.3 km/h
Travel Speed – Reverse	9.3 km/h

Electrical

Name	2050M
Alternator	120 Amp
Battery	(2) 12-volt, low-maintenance 925 cold-cranking amps @ -4° F (-20° C)

Dimensions and Weight

Name	2050M
Operating Weight	20,592 kg
Height	3,103 mm
Ground Clearance	362 mm
Overall Length	7,383 mm
Width over tracks	2,550 mm

Hydraulics

Name	2050M
Pump flow	153 L/min

Blade

Name	2050M
Blade Type	PAT
Blade Width	3,569 nn
Blade Height	1,369 mm
Blade Capacity (SAE)	4.83 m³
Blade Pitch Range	55–60 °
Max Blade Lift Above Ground	1,130 mm
Max Blade Depth Below Ground	539 mm
Blade Angle (L/R)	28 °
