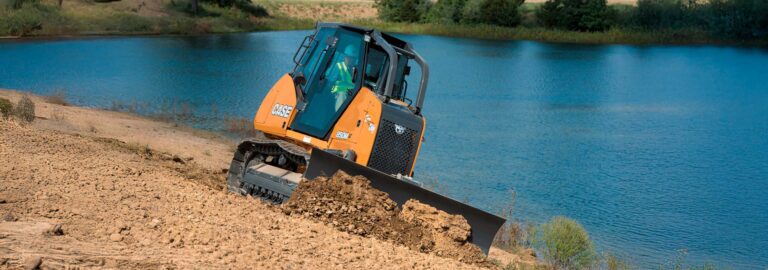

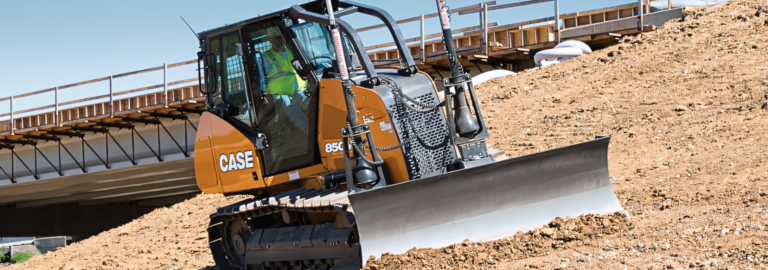

CASE 850M Crawler Dozer

The CASE 850M Crawler Dozer delivers the perfect balance of power, control, and efficiency for mid-size earthmoving and grading work. Powered by a 4.5 L FPT engine producing 112 hp (84 kW), the 850M offers responsive hydrostatic drive performance with best-in-class pushing power and drawbar pull. Its dual-path hydrostatic transmission ensures smooth, predictable control on every pass, making fine grading and heavy pushing equally effortless. Built for long life and low maintenance, the 850M features a heavy-duty undercarriage with permanently lubricated components and a rigid frame for maximum durability. The dozer’s advanced electro-hydraulic controls, adjustable blade pitch, and precision steering give operators the accuracy needed for slope work and detailed finishing. Whether it’s site preparation, road construction, or land clearing, the 850M delivers the versatility and reliability that CASE dozers are known for.

Model Comparison

Finance Offers

Download Brochure

173 kW (232.0 hp)
90 kW (120.7 hp)

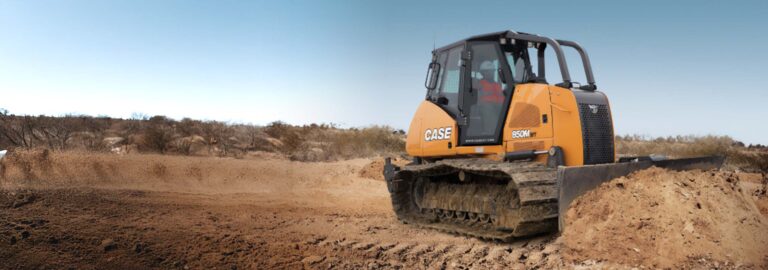

Product Features

The 850M is powered by a Tier 4 Final FPT engine with SCR-only technology, eliminating the need for a DPF or regeneration cycles. This keeps fuel efficiency high and maintenance simple. The hydrostatic transmission delivers instant torque to both tracks, maintaining straight-line pushing and precise turns under heavy load. Operators can choose between three programmable speed settings to suit site conditions, while the optional factory-installed blade control system makes grading faster and more accurate. Inside the ROPS cab, the 850M offers a quiet, comfortable workspace designed for long shifts. The fully adjustable air suspension seat, ergonomic single-lever controls, and optional heated cab keep operators productive in any weather. CASE’s telematics-ready SiteWatch system comes standard, providing machine data and diagnostics to help manage performance and uptime. Ground-level service points, wide-opening panels, and extended service intervals make maintenance straightforward, ensuring the 850M stays on the job and working hard.

FPT Tier 4 Final Engine

The 850M is powered by a 4.5 L FPT engine delivering up to 112 horsepower and 90 kW of gross power. This Tier 4 Final certified engine uses advanced common-rail fuel injection and liquid cooling to ensure strong performance and fuel efficiency. Its robust design, complete with a deep-sump oil system and pressurised under-piston nozzles, provides exceptional reliability in demanding conditions.

FPT Tier 4 Final Engine

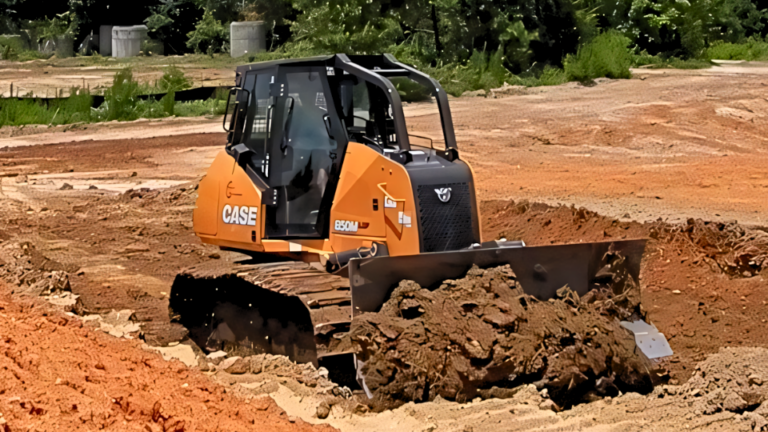

Reliable Power and Performance

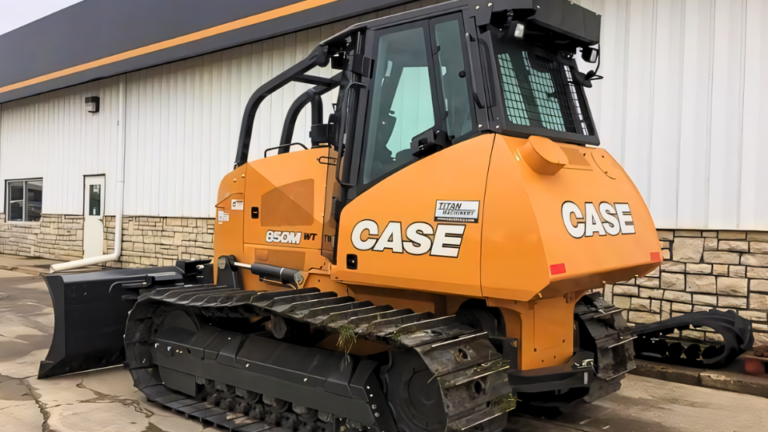

Smooth, Precise Control

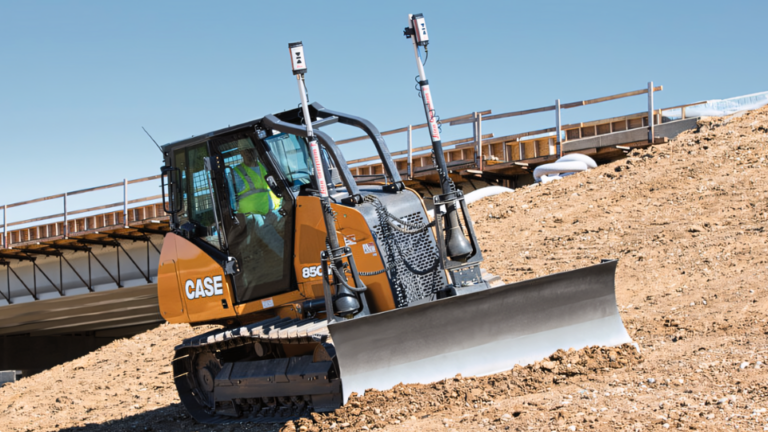

Advanced Blade Technology

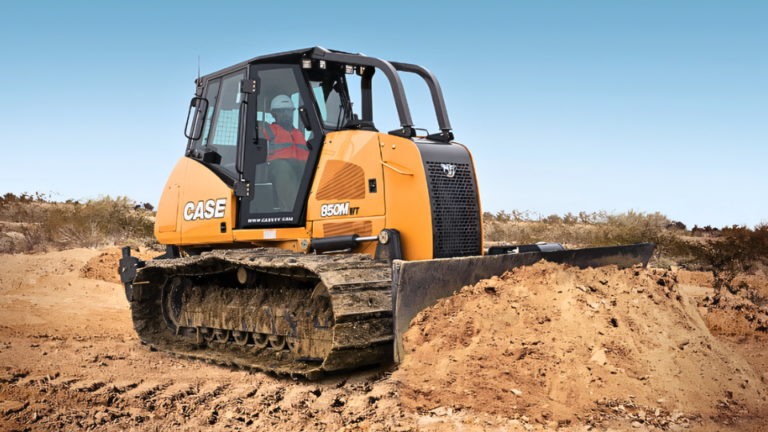

Built for Comfort and Safety

Specifications

Download Brochure

Engine

Name	850M
Model	FPT F4HFE413P*A008
Engine Displacement	4.5 L
Cylinders	4
Emissions Certification	Tier 4 Final
Fuel System	Common rail
Cooling Type	Liquid
Rated Engine Speed	2,000 rpm
Gross Horsepower	90 kW (120.7 hp)
Net Horsepower	84 kW (112.6 hp)
Peak Torque	825 Nm

Drivetrain

Name	850M
Transmission Type	Dual path hydrostatic
Steering Type	Hydrostatic
Max Drawbar Pull	182 kN
Travel Speed – Forward	8.7 km/h
Travel Speed – Reverse	8.7 km/h

Electrical

Name	850M
Alternator	120 Amp
Battery	(2) 12-volt, low-maintenance 925 cold-cranking amps @ -4° F (-20° C)

Dimensions and Weight

Name	850M
Operating Weight	10,320 kg
Height	2,794 mm
Ground Clearance	366 mm
Overall Length	5,277 mm
Width over tracks	2,322 mm

Hydraulics

Name	850M
Pump flow	78.8 L/min

Blade

Name	850M
Blade Type	PAT
Blade Width	2845
Blade Height	910
Blade Capacity (SAE)	1.8 m³
Blade Pitch Range	52–60
Max Blade Lift Above Ground	864
Max Blade Depth Below Ground	488
Blade Angle (L/R)	25
