EasyCut B Mower Combinations Conditioners

Model Comparison Product Features Specifications
EasyCut B Mower Combinations Conditioners previewEasyCut B Mower Combinations Conditioners

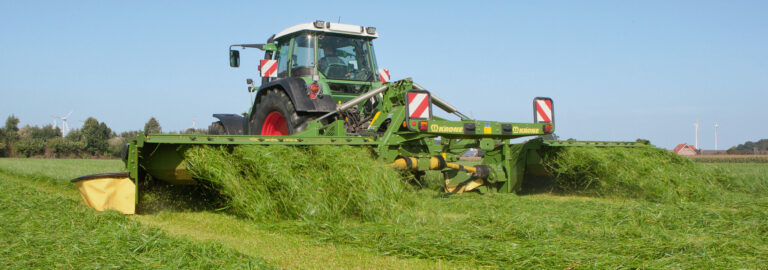

The EasyCut B range provides the perfect conditioning options with steep V-shaped steel tines, or steel or rubber rollers. CV models feature a massive 64 cm diameter rotor and helical tine arrangement that ensures continuous crop flow, high throughputs and superior conditioning. CR models are equipped with either a rubber roller conditioner or a steel-M roller conditioner that provides gentle treatment for uniform and fast wilting. All Krone's butterfly mowers utilise the SafeCut Shear pin protection system and Krone’s fully welded one piece cutterbar with life time oil filling. EasyCut B mowers provide superior functionality and precise cuts with a massive working width of up to 10.1 metres. EasyCut B models perfectly adapt to changing ground conditions, resulting in even cuts without compromise even in dense grass, high field forage or difficult meadows. Measuring less than 4m high and 3m wide when folded, these mower combinations use little storage space. Extra stability on the EasyCut B 1000 when in storage comes from an outrigger on the cutterbar and hoop guards.

Model Comparison

Finance Offers
Download Brochure
  • 8,700 mm
  • 10,100 mm
  • 8,700 mm
  • 10,100 mm
  • 8,700 mm
  • 10,100 mm

Product Features

kubota previewkubota
1
2
3
4
5
6

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Specifications

Download Brochure
Dimensions & Weight
Name ECB870CR ECB1000CR ECB870CRS ECB1000CRS ECB870CV ECB1000CV
Working Width Max. 8,700 mm 10,100 mm 8,700 mm 10,100 mm 8,700 mm 10,100 mm
Transport Height 3,800 mm 4,000 mm 3,800 mm 4,000 mm 3,800 mm 4,000 mm
Transport Width 2,780 mm 2,950 mm 2,780 mm 2,950 mm 2,780 mm 2,950 mm
Weight 2,730 kg 3,400 kg 2,730 kg 3,400 kg 2,690 kg 3,400 kg
Name ECB870CR ECB1000CR ECB870CRS ECB1000CRS ECB870CV ECB1000CV
PTO Min. 150 hp 180 hp 150 hp 180 hp 150 hp 180 hp
Conditioner Type Polyurethane or Steel M-roll Polyurethane or Steel M-roll Polyurethane or Steel M-roll Polyurethane or Steel M-roll V-flail V-flail
Discs 10 12 10 12 10 12
Drums 4 4 4 4 4 4
Rotation Direction B B B B B B
PTO Standard Speed 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm
Hydraulic Spools 1 SA, 1 DA 1 SA and Free Return 1 SA, 1 DA 1 SA and Free Return 1 SA, 1 DA 1 SA and Free Return
Work Rate Min. 9 ha/h 10 ha/h 9 ha/h 10 ha/h 9 ha/h 10 ha/h
Work Rate Max. 11 ha/h 14 ha/h 11 ha/h 14 ha/h 11 ha/h 14 ha/h
Cross Conveyor Belts N/A N/A N/A N/A
Merger Swath Augers (450mm dia.) N/A N/A N/A N/A N/A N/A
Front Mower (recommended) ECF320CR ECF360CR | ECF320CR ECF320CR ECF360CR | ECF320CR ECF320CV ECF320CV | ECF360CV
Name ECB870CR ECB1000CR ECB870CRS ECB1000CRS ECB870CV ECB1000CV
SafeCut (shear pin disc impact protection)
SmartCut (optimised overlap on discs and satellite gear system)
One Piece Fully Welded Cutterbar (lifetime oil filling)
DuoGrip for Centre-of-gravity Suspension
Suspension for Flotation Mechanical Springs N/A Mechanical Springs N/A Mechanical Springs N/A
PTO Shaft with Slip Clutch
Storage Box
Brakeback System
Cast Wear Protection Points Between Discs
Adjustable Swath Board
Light Kit
Semi Swing Hardened V-flail Tines
Name ECB870CR ECB1000CR ECB870CRS ECB1000CRS ECB870CV ECB1000CV
Quick Change Blades
Disc Covers from 2022 Models
Twin Top Roller Drive N/A N/A
Valve to Raise Front Mower with Rear Mower N/A N/A N/A
Conditioner with Wide Spreading Hood N/A N/A N/A N/A
Spreading Vanes N/A N/A N/A N/A
6 Spline Yoke N/A N/A N/A
20 Spline Yoke or 21 Spline Yoke Optional Optional Optional
Comfort ECU Job Computer N/A CCI1200 N/A CCI1200 N/A CCI1200
