EasyCut B Disc Mower Combinations Collect

Model Comparison Product Features Specifications

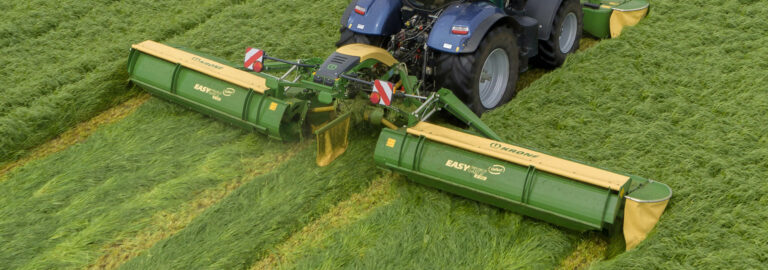

EasyCut B Disc Mower Combinations Collect previewEasyCut B Disc Mower Combinations Collect
All Krone's butterfly mowers utilise the SafeCut Shear pin protection system and Krone’s fully welded one piece cutterbar with life time oil filling. EasyCut B mowers provide superior functionality and precise cuts with a massive working width of up to 10.1 metres. EasyCut B models perfectly adapt to changing ground conditions, resulting in even cuts without compromise even in dense grass, high field forage or difficult meadows. Measuring less than 4m high and 3m wide when folded, these mower combinations use little storage space. Extra stability on the EasyCut B 1000 when in storage comes from an outrigger on the cutterbar and hoop guards. With the Collect system, cross conveyor belts deliver clean and perfect swaths that are easy to pick up by harvesters, resulting in loss-free harvests. The ­­Krone Collect system offers multiple setting options, making it suitable for any situation. The decks behind the augers open and close hydraulically for convenient selection of one of the three swathing modes from the cab: swathing, independent swathing or no swathing. When equipped with a conditioner, the Collect System groups three passes into one – cutting, conditioning and swathing. By reducing the number of passes the risk of crop damage and contamination is reduced.

Model Comparison

Finance Offers
Download Brochure
  • 9,450 mm
  • 8,700 mm
  • N/A
  • N/A
  • N/A

Product Features

kubota previewkubota
1
2
3
4
5
6

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Specifications

Download Brochure
Dimensions & Weight
Name ECB950-Collect ECB870CV-Collect ECB1000CV-Collect ECB1000CR-Collect ECB1000CRS-Collect
Working Width 9,450 mm 8,700 mm N/A N/A N/A
Transport Height 4,000 mm 3,800 mm 4,000 mm 4,000 mm 4,000 mm
Transport Width 2,990 mm 2,780 mm 2,950 mm 2,950 mm 2,950 mm
Weight 2,988 kg 3,380 kg 3,880 kg 3,880 kg 3,880 kg
Name ECB950-Collect ECB870CV-Collect ECB1000CV-Collect ECB1000CR-Collect ECB1000CRS-Collect
PTO Min. 160 hp 170 hp 200 hp 200 hp 200 hp
Conditioner Type N/A V-flail V-flail Polyurethane or Steel M-roll Polyurethane or Steel M-roll
Discs 12 10 12 12 12
Drums 4 4 4 4 4
Rotation Direction B B B B B
PTO Standard Speed 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm
Hydraulic Spools 2 DA and Load Sensing 2 DA 1 SA and Free Return 1 SA and Free Return 1 SA and Free Return
Work Rate Min. 14 ha/h 9 ha/h 10 ha/h 10 ha/h 10 ha/h
Work Rate Max. 14 ha/h 11 ha/h 14 ha/h 14 ha/h 14 ha/h
Cross Conveyor Belts N/A
Merger Swath Augers (450mm dia.) N/A N/A N/A N/A
Front Mower (recommended) ECF320MT ECF320CV ECF360CV | ECF320CV ECF360CR | ECF320CR ECF360CR | ECF320CR
Name ECB950-Collect ECB870CV-Collect ECB1000CV-Collect ECB1000CR-Collect ECB1000CRS-Collect
SafeCut (shear pin disc impact protection)
SmartCut (optimised overlap on discs and satellite gear system)
One Piece Fully Welded Cutterbar (lifetime oil filling)
DuoGrip for Centre-of-gravity Suspension
Suspension for Flotation Hydraulic Mechanical Springs N/A N/A N/A
PTO Shaft with Slip Clutch
Storage Box
Brakeback System
Cast Wear Protection Points Between Discs
Adjustable Swath Board
Light Kit
Semi Swing Hardened V-flail Tines
Name ECB950-Collect ECB870CV-Collect ECB1000CV-Collect ECB1000CR-Collect ECB1000CRS-Collect
Quick Change Blades
Disc Covers from 2022 Models
Twin Top Roller Drive
Hydraulic Hydraulic Swath Accelerator with Mechanical Height Adj. N/A N/A N/A
Hydraulic Swath Curtain for Uniform Swaths N/A N/A N/A
Additional Rear Frame Lifting N/A N/A N/A
Conditioner with Wide Spreading Hood
Spreading Vanes
Triple Swathing Kit
6 Spline Yoke N/A N/A N/A
20 Spline Yoke or 21 Spline Yoke Optional Optional N/A N/A N/A
