EasyCut F Front Mounted Disc Mower Conditioner

Model Comparison Product Features Specifications

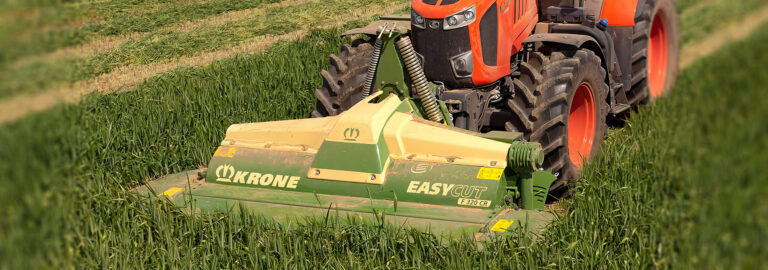

EasyCut F Front Mounted Disc Mower Conditioner previewEasyCut F Front Mounted Disc Mower Conditioner
The EasyCut F front mounted mower range combines compact light-weight models with pull headstocks, making them capable of cutting even extremely undulating terrain. With immense agility and generous up-and-rearward travel, the EasyCut F range excels at cutting both flat or hilly land. The mower is suspended at its centre of gravity, increasing the machine’s travel by up to 18° and ensuring the sward is left undamaged in undulating terrain. In the event an object is hit, the mower shifts to the rear without altering the cutting length. The EasyCut F range provides the perfect conditioning options with steep V-shaped steel tines, or steel or rubber rollers. CV models feature a massive 64 cm diameter rotor and helical tine arrangement that ensures continuous crop flow, high throughputs and superior conditioning. CR models are equipped with either a rubber roller conditioner or a steel-M roller conditioner that provides gentle treatment for uniform and fast wilting.

Model Comparison

Finance Offers
Download Brochure
  • 3,140 mm
  • 3,600 mm
  • 3,140 mm
  • 3,600 mm
  • 4,000 mm
  • 3,140 mm
  • 3,600 mm
  • 4,000 mm

Product Features

kubota previewkubota
1
2
3
4
5
6

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Specifications

Download Brochure
Dimensions & Weight
Name ECF320CV ECF360CV ECF320CR ECF360CR ECF400CR ECF320CRS ECF360CRS ECF400CRS
Working Width 3,140 mm 3,600 mm 3,140 mm 3,600 mm 4,000 mm 3,140 mm 3,600 mm 4,000 mm
Transport Width 3,000 mm 3,450 mm 3,000 mm 3,450 mm 4,000 mm 3,000 mm 3,450 mm 4,000 mm
Windrow Width Min. 1,300 mm 1,600 mm 700 mm 700 mm 700 mm 700 mm 700 mm 700 mm
Windrow Width Max. 2,700 mm 3,000 mm 2,000 mm 2,000 mm 2,000 mm 2,000 mm 2,000 mm 2,000 mm
Weight 1,060 kg 1,120 kg 1,080 kg 1,120 kg 1,720 kg 1,080 kg 1,120 kg 1,720 kg
Name ECF320CV ECF360CV ECF320CR ECF360CR ECF400CR ECF320CRS ECF360CRS ECF400CRS
PTO Min. 80 hp 90 hp 80 hp 90 hp 100 hp 80 hp 90 hp 100 hp
Conditioner Type V-flail V-flail Polyurethane or Steel M-roll Polyurethane or Steel M-roll Polyurethane or Steel M-roll Polyurethane or Steel M-roll Polyurethane or Steel M-roll Polyurethane or Steel M-roll
Attachment Type Ground Contouring Mower Floats Under Fixed Frame Ground Contouring Mower Floats Under Fixed Frame Ground Contouring Mower Floats Under Fixed Frame Ground Contouring Mower Floats Under Fixed Frame Ground Contouring Mower Floats Under Fixed Frame Ground Contouring Mower Floats Under Fixed Frame Ground Contouring Mower Floats Under Fixed Frame Ground Contouring Mower Floats Under Fixed Frame
Discs 5 6 5 6 5 5 6 5
Drums 2 2 2 2 4 2 2 4
Rotation Direction B B A A A A A A
PTO Standard Speed 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm 1,000 rpm
PTO Optional Speed 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm
Hydraulic Spools 1 SA, 1 DA 1 SA, 1 DA 1 SA, 1 DA 1 SA, 1 DA 1 SA, 1 DA 1 SA, 1 DA 1 SA, 1 DA 1 SA, 1 DA
Work Rate Min. 3.5 ha/h 4 ha/h 3.5 ha/h 4 ha/h 5.5 ha/h 3.5 ha/h 4 ha/h 5.5 ha/h
Work Rate Max. 4 ha/h 4.5 ha/h 4 ha/h 4.5 ha/h 6 ha/h 4 ha/h 4.5 ha/h 6 ha/h
Name ECF320CV ECF360CV ECF320CR ECF360CR ECF400CR ECF320CRS ECF360CRS ECF400CRS
SafeCut (shear pin disc impact protection)
SmartCut (optimised overlap on discs and satellite gear system)
One Piece Fully Welded Cutterbar (lifetime oil filling)
Adjustable Mower Spring Suspension
Cab Operated Adjustment of Cutterbar Suspension
PTO Shaft with Slip Clutch
Removable Blade Box
Pressure Control Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical
Cast Wear Protection Points Between Discs
Semi Swing Hardened V-flail Tines
Name ECF320CV ECF360CV ECF320CR ECF360CR ECF400CR ECF320CRS ECF360CRS ECF400CRS
Trailed Headstock
Hydropneumatic Floatation Set-up
Quick Change Blades
Disc Covers with Wear Parts From 2022 Model 8 8 8 8 8 8 8 8
Narrow Swath Board Kit
Adjustable Swath Board
Twin Top Roller Drive
Conditioner with Wide Spreading Hood
Lower Link Extension (incl. telescopic toplink ext.)
Additional Mowing Drums 0 0 0 0 0 0 0 0
Spreading Vanes
6 Spline Yoke N/A N/A
21 Spline Yoke Option Option Option Option Option Option
Light Kit Option Option Option
