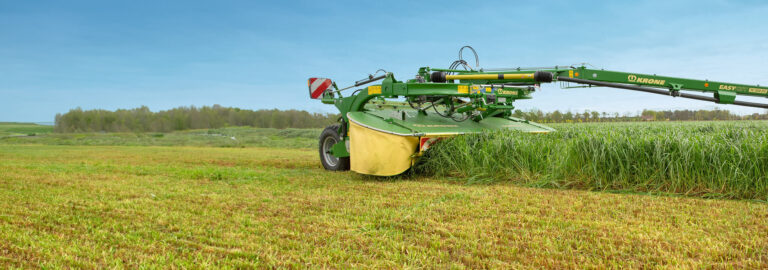

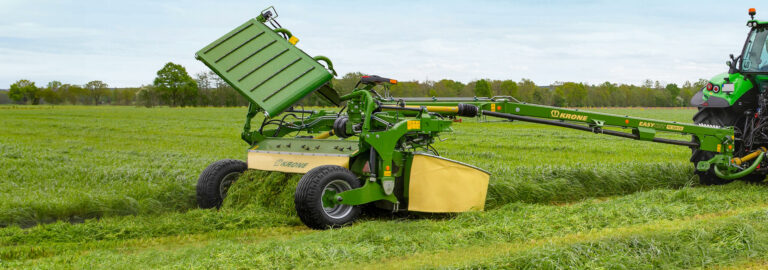

EasyCut TC Centre Disc Mower Conditioner

The Krone EasyCut TC range features a mid-mounted drawbar that offers maximum flexibility when operating the machine solo or in combination with a front mower. The trailed machines with a mid-mounted drawbar offer hydraulic side-shifting, running left or right behind the tractor. Krone’s EasyCut TC mowers are packed with industry leading technology, available in steel roller conditioner, rubber roller conditioner, flail conditioner and non-conditioner models. The optional 3m transport kit allows operators to now change from transport mode to working mode in less than 30 seconds all without leaving the tractor cab. The EasyCut TC range provides the perfect conditioning options with steep V-shaped steel tines, or steel or rubber rollers. CV models feature a massive 64 cm diameter rotor and helical tine arrangement that ensures continuous crop flow, high throughputs and superior conditioning. CR models are equipped with either a rubber roller conditioner or a steel-M roller conditioner that provides gentle treatment for uniform and fast wilting.

Model Comparison

Finance Offers

Download Brochure

3,160 mm
4,000 mm
5,000 mm
3,160 mm
3,160 mm
4,000 mm
5,000 mm
5,000 mm

Product Features

Krone Cutterbar

Krone cutterbars feature lifetime oil filling thanks to the completely welded design that won't leak nor lose shape even after years of use. This eliminates the need for oil changes. Krone has developed satellite gears and spur gears, ensuring positive mesh, slow speed, quiet running and efficient power transmission across every disc for maximum longevity. The wedge shaped cutterbar is adjustable through a large setting range which enables short stubble cuts in meadows and pastures and longer stubble in long stemmed field crops.

Krone Cutterbar

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	ECTC320CV	ECTC400CV	ECTC500CV	ECTC320CR	ECTC320CRS	ECTC400CR	ECTC500CR	ECTC500CRSM
Working Width	3,160 mm	4,000 mm	5,000 mm	3,160 mm	3,160 mm	4,000 mm	5,000 mm	5,000 mm
Transport Width	3,000 mm	3,000 mm	3,000 mm	3,000 mm	3,000 mm	3,000 mm	3,000 mm	3,000 mm
Length	7,050 mm	7110	8,580 mm	7,050 mm	7,050 mm	7,110 mm	8,580 mm	8,580 mm
Weight	2,450 kg	2,404 kg	2,740 kg	2,450 kg	2,450 kg	2,404 kg	2,740 kg	2,740 kg
Tyre Size	15.0 / 55-17 / 10 PR	15.0 / 31-13 / 8 PR	15.0 / 31-13 / 8 PR	15.0 / 55-17 / 10 PR	15.0 / 55-17 / 10 PR	15.0 / 31-13.5 / 8 PR	15.0 / 31-13.5 / 8 PR	15.0 / 31-13.5 / 8 PR

Specifications

Name	ECTC320CV	ECTC400CV	ECTC500CV	ECTC320CR	ECTC320CRS	ECTC400CR	ECTC500CR	ECTC500CRSM
PTO Min.	100 hp	120 hp	140 hp	100 hp	100 hp	120 hp	140 hp	140 hp
Conditioner Type	V-flail	V-flail	V-flail	Polyurethane Roller	M-Roll Steel	Polyurethane Roller	Polyurethane Roller	Steel M-Roll
Drawbar Attachment	Centre	Trailed Centre	Trailed Centre	Centre	Centre	Trailed Centre	Trailed Centre	Trailed Centre
Discs	5	6	8	5	5	6	8	8
Drums	2	2	2	2	2	2	2	2
Rotation Direction	B	B	B	B	B	B	B	B
PTO Optional Speed	1,000 rpm	1,000 rpm	1,000 rpm	1,000 rpm	1,000 rpm	1,000 rpm	1,000 rpm	1,000 rpm
Hydraulic Spools	1 SA, 1 DA	1 SA, 1 DA	1 SA, 1 DA	1 SA, 1 DA	1 SA, 1 DA	1 SA, 1 DA	1 SA, 1 DA	1 SA, 1 DA

Standard Options

Name	ECTC320CV	ECTC400CV	ECTC500CV	ECTC320CR	ECTC320CRS	ECTC400CR	ECTC500CR	ECTC500CRSM
SafeCut (shear pin disc impact protection)
SmartCut (optimised overlap on discs and satellite gear system)
One Piece Fully Welded Cutterbar (lifetime oil filling)
Cast Wear Protection Points Between Discs
Lighting
Removable Blade Box for Storage
Flail Rotor – 640mm w/ Semi Swing Hardened V-Flail Tines

Standard Extras

Name	ECTC400CV	ECTC500CV	ECTC320CR	ECTC320CRS	ECTC400CR	ECTC500CR	ECTC500CRSM
Quick Change Blades
Twin Roller Drive		N/A
Spreading Vanes	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Lower Link Cat II	N/A	N/A			N/A	N/A	N/A
Additional Drums with Wider Bar/Slat	N/A	N/A			N/A	N/A	N/A
21 Spline Yoke
