ECTC Connect

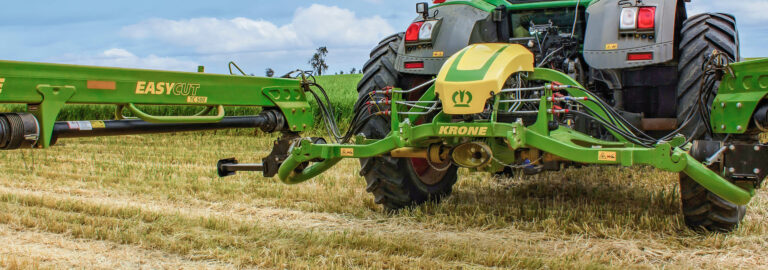

The Krone ECTC Connect revolutionises large-scale mowing for broadacre farming. This coupling system allows two rear-mounted mowers to link together, creating a large working width. When used in conjunction with a front mower, a cutting width of up to 13m can be achieved. Suitable for the ECTC400 and ECTC500. Operated from the cab via an electrical box, it allows simultaneous or individual control of mowers, with features like angle adjustment and turning for precision. The hydraulic quick coupler facilitates connection, and fine-tuning options ensure smooth operation. An endwise transport kit optimises road travel, enhancing versatility. With its efficiency and adaptability, ECTC Connect promises enhanced productivity for farmers.

Specifications

Dimensions & Weight

Name	ECTC Connect
Machine Weight	350 kg

Specifications

Name	ECTC Connect
Mounting to Tractor	Cat 3 & 4
Drawbar Attachment	Trailed Centre
Drive Shaft Connection of Tractor	1 3/8", 6 Splines
Hydraulic Spools	1 x SA, 3 x DA
PTO Speed	1000 rpm

Standard Options

Name	ECTC Connect
Rear Central Coupling
Hydraulic Quick Coupler
Weather Sealed Electronics Housing
Two PTO Shaft Ends
Two Strong Two-Point Headstock

Standard Extras

Name	ECTC Connect
Quick Change Blades
Twin Roller Drive
Divider
2 Point Hitch
Extended Length PTO Shaft
21 Spline Yoke
