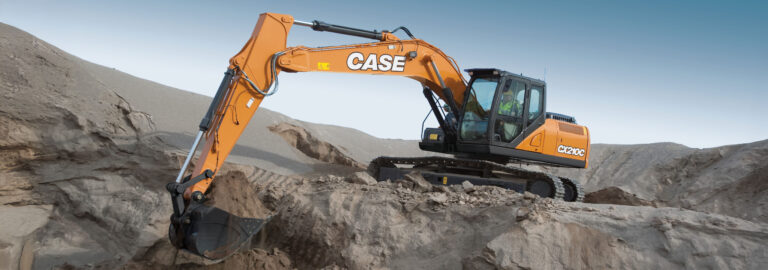

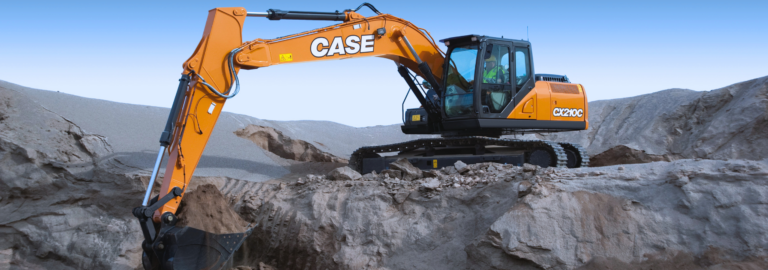

CASE CX210C Excavator
Model Comparison
- 73 kW (97.9 hp)
- 92.2 kW (123.6 hp)
- 122 kW (163.6 hp)
- 140 kW (187.7 hp)
- 212 kW (284.3 hp)
- 212 kW (284.3 hp)
- 270 kW (362.1 hp)
- 270 kW (362.1 hp)

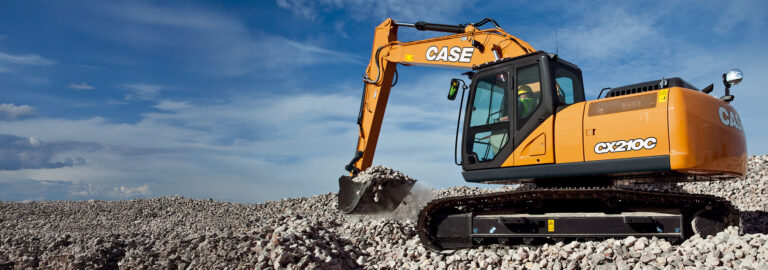

Product Features
At the heart of the CX210C is CASE’s Advanced Hydraulic System, equipped with five energy saving functions that reduce fuel consumption by up to ten percent. The pump torque control system maintains steady engine speed under heavy load, while features like Boom Economy Control and Automatic Economy Control fine-tune hydraulic flow for smooth, consistent power. Operators can choose from multiple work modes and monitor real-time efficiency with the easy-to-read ECO gauge display. Comfort and serviceability have been refined to support long days on the job. The ROPS and FOPS certified cab offers low noise levels, wide visibility, and an air suspension seat with full adjustability. A large 7-inch LCD display provides instant access to machine data, diagnostics, and work settings. Ground-level access to filters, extended service intervals, and CASE’s EMS bushings that stretch greasing intervals to 1,000 hours all contribute to lower ownership costs and maximum uptime.
Advanced Hydraulic Systems
The CX210C uses CASE’s intelligent hydraulic technology to deliver powerful, precise control with reduced fuel use. Five dedicated energy saving functions automatically adjust flow and pressure for the task, helping to cut fuel consumption by up to ten percent. Operators can monitor performance in real time through the ECO gauge, making it easier to achieve maximum efficiency on every job.

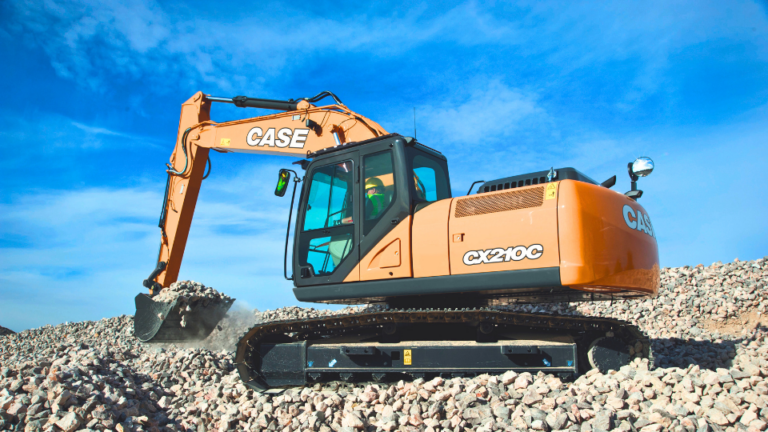

Built for Tough Conditions

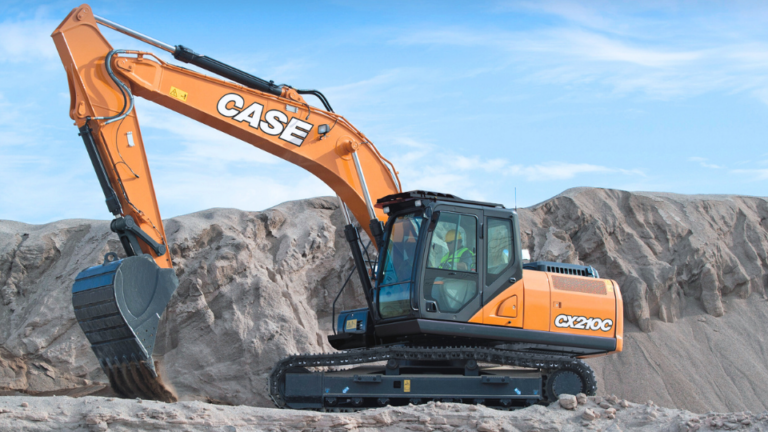

Precision Hydraulics

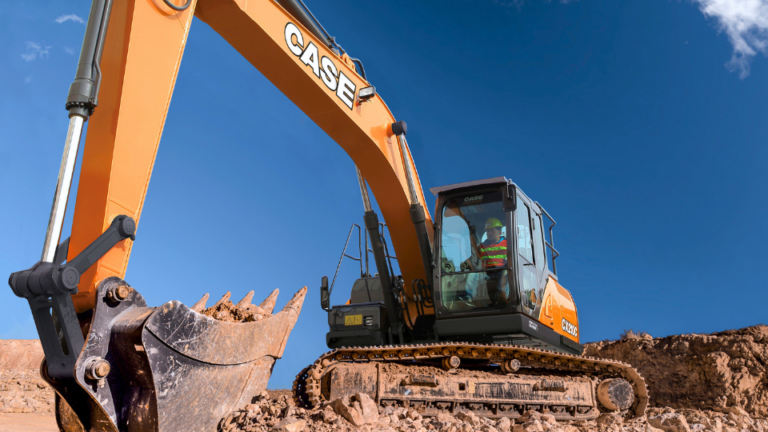

Power When You Need It

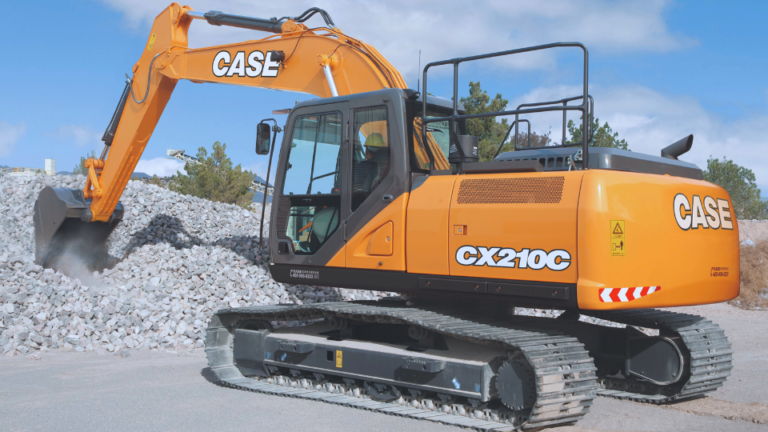

Operator Comfort and Safety
| Name | CX210C |
|---|---|
| Engine Type | Water-cooled, 4-cycle diesel, 6-cylinder in line, electronically controlled, high pressure common rail system, turbocharger with air cooled intercooler, without cooling fan , SCR system. |
| Model | ISUZU GI-4HK1X |
| Bore/Stroke | 115 × 125 mm |
| Displacement | 5.19 l |
| Horsepower | 122 kW (163.6 hp) |
| Maximum torque | 624 Nm @ 1500 min-¹ |
| Name | CX210C |
|---|---|
| Max oil flow | 2 x 211 l/min |
| Type | 2 variable displacement axial piston pumps with regulating system |
| Boom/Arm/Bucket circuit | 34.3 MPa |
| Boom/Arm/Bucket (with Power Boost) | 36.8 MPa |
| Swing circuit | 29.4 MPa |
| Travel circuit | 34.3 MPa |
| Name | CX210C |
|---|---|
| Maximum swing speed | 11.5 min-¹ |
| Swing torque | 64,000 Nm |
| Name | CX210C |
|---|---|
| Suction filter | 105 μm |
| Return filter | 6 μm |
| Pilot line filter | 8 μm |
| Name | CX210C |
|---|---|
| Travel motor | Variable displacement axial piston motor |
| Max travel speed | 5.6 km/h |
| Low travel speed | 3.4 km/h |
| Gradeability | 35° (70%) |
| Drawbar pull | 188 kN |
| Name | CX210C |
|---|---|
| Alternator | 50 Amp |
| Starter motor | 4 kW (5.4 hp) |
| Battery | 2 × 12 V 92 Ah / 5HR |
| Name | CX210C |
|---|---|
| Number of track rollers (each side) | 8 |
| Number of shoes (each side) | 49 |
| Type of shoe | Triple grouser shoe |
| Name | CX210C |
|---|---|
| Fuel tank | 410 L |
| Hydraulic system | 240 L |
| Cooling system | 30.6 L |
| Engine Crank Case | 23.1 L |
| Name | CX210C |
|---|---|
| Operating Weight | 21,600 kg |
