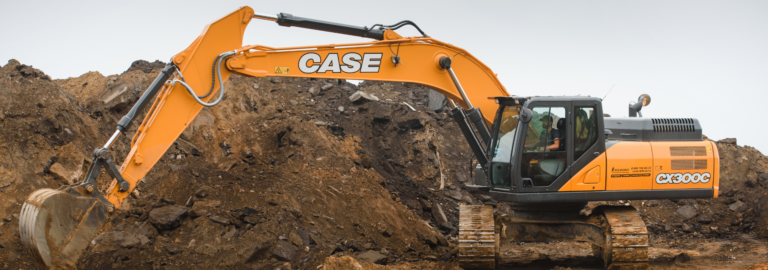

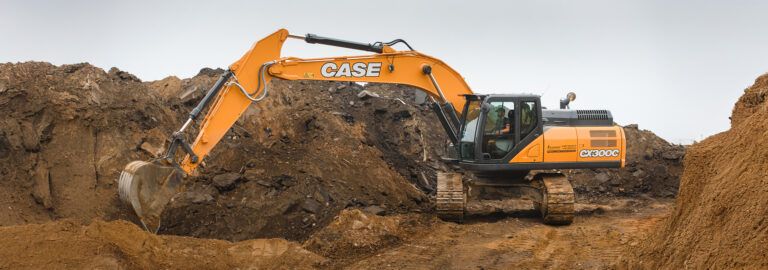

CASE CX300C Excavator
Model Comparison
- 73 kW (97.9 hp)
- 92.2 kW (123.6 hp)
- 122 kW (163.6 hp)
- 140 kW (187.7 hp)
- 212 kW (284.3 hp)
- 212 kW (284.3 hp)
- 270 kW (362.1 hp)
- 270 kW (362.1 hp)
Product Features
The CX300C’s Advanced Hydraulic System uses five energy-saving functions to balance performance with efficiency. CASE’s Boom Economy Control, Auto Economy Control, and Swing Relief Control automatically fine-tune hydraulic power, delivering strong breakout force with reduced fuel burn. Pump torque control ensures smooth performance under load while maintaining engine stability, giving operators the power and precision to move more material with less effort. Inside the cab, the CX300C offers one of the most comfortable working environments in its class. The ROPS and FOPS certified cab is quiet and spacious, fitted with a fully adjustable air suspension seat, ergonomic joystick controls, and a large seven-inch LCD display for real-time performance data and diagnostics. Ground-level access to all service points, extended maintenance intervals, and CASE’s EMS bushings with 1,000-hour greasing intervals all help keep downtime low and productivity high.
High-Performance Isuzu Engine
The CX300C is powered by a proven 6-cylinder ISUZU Tier 3 engine that produces 212 kW and 1020 Nm of torque. The high-pressure common rail fuel system and turbocharged intercooler deliver responsive power and consistent torque, even under heavy load. Designed for strength and reliability, it delivers smooth, stable performance across demanding excavation, lifting, and loading tasks with excellent fuel economy.

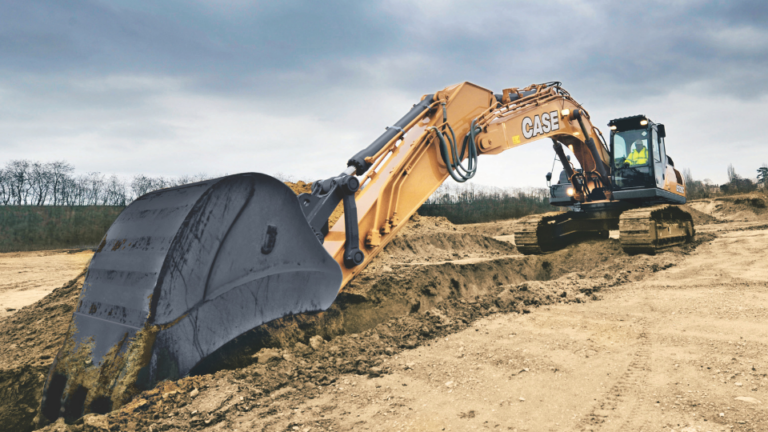

Built for Heavy Workloads

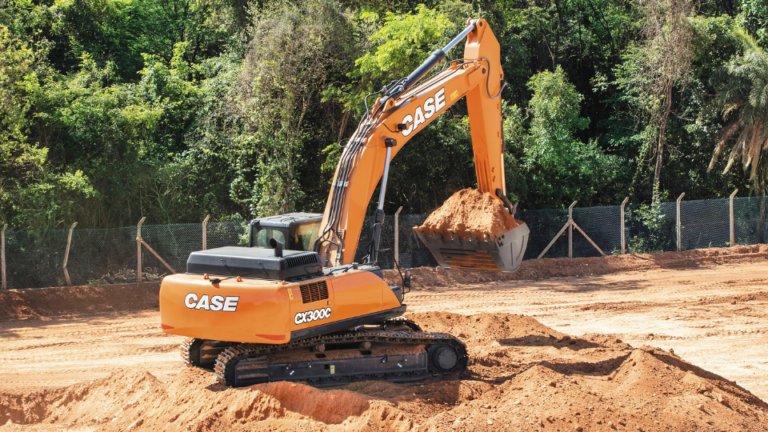

Precision Hydraulics

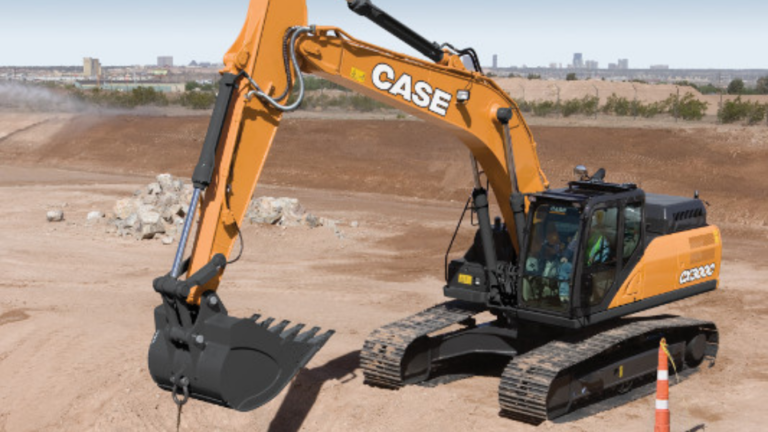

Durable Frame and Undercarriage

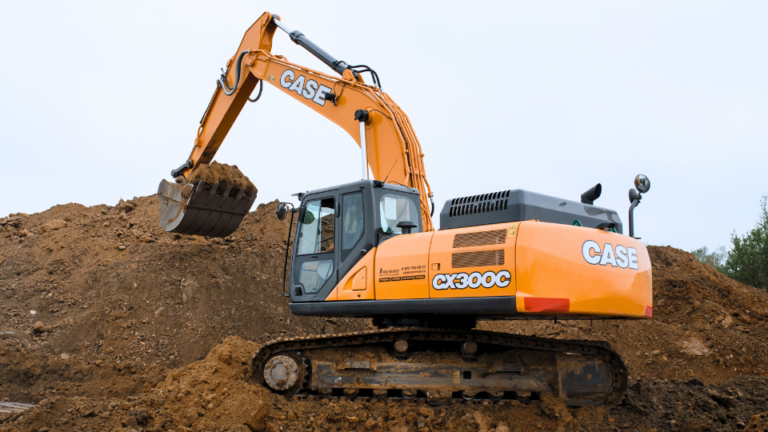

Operator Comfort and Safety
| Name | CX300C |
|---|---|
| Engine Type | Water-cooled, 4-cycle diesel, 6-cylinder in line , High pressure common rail system (electric control), Turbocharger with air cooled intercooler. |
| Model | ISUZU GH-6HK1X |
| Bore/Stroke | 115 × 125 mm |
| Displacement | 7.79 l |
| Horsepower | 212 kW (284.3 hp) |
| Maximum torque | 1,020 Nm |
| Name | CX300C |
|---|---|
| Max oil flow | 2 × 270 l/min |
| Type | 2 variable displacement axial piston pumps with regulating system |
| Boom/Arm/Bucket circuit | 34.3 MPa |
| Boom/Arm/Bucket (with Power Boost) | 37.3 MPa |
| Swing circuit | 30.4 MPa |
| Travel circuit | 34.3 MPa |
| Name | CX300C |
|---|---|
| Maximum swing speed | 10 min-¹ |
| Swing torque | 92,100 Nm |
| Name | CX300C |
|---|---|
| Suction filter | 105 μm |
| Return filter | 6 μm |
| Pilot line filter | 8 μm |
| Name | CX300C |
|---|---|
| Travel motor | Variable displacement axial piston motor |
| Max travel speed | 5.7 km/h |
| Low travel speed | 3.3 km/h |
| Gradeability | 35° (70%) |
| Drawbar pull | 233 kN |
| Name | CX300C |
|---|---|
| Alternator | 50 Amp |
| Starter motor | 5 kW (6.7 hp) |
| Battery | 2 × 12 V 128 Ah / 5 HR |
| Name | CX300C |
|---|---|
| Number of track rollers (each side) | 9 |
| Number of shoes (each side) | 50 |
| Type of shoe | Triple grouser shoe |
| Name | CX300C |
|---|---|
| Fuel tank | 450 L |
| Hydraulic system | 300 L |
| Cooling system | 32.7 L |
| Engine Crank Case | 41 L |
| Name | CX300C |
|---|---|
| Operating Weight | 30,000 kg |
