CX350C

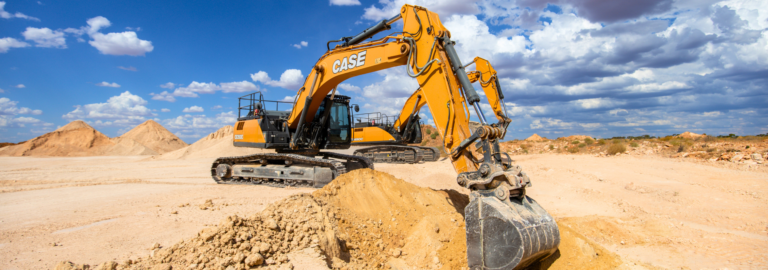

CASE CX350C Excavator

The CASE CX350C combines exceptional power, precision, and reliability in a heavy-duty 35-tonne excavator built for large-scale civil and quarrying projects. Powered by a 7.8 litre ISUZU Tier 3 engine producing 213 kW (286 hp) and 1020 Nm of torque, the CX350C delivers strong breakout force, smooth operation, and fast cycle times. The advanced hydraulic system automatically balances oil flow and pressure, providing maximum digging strength and efficiency with reduced fuel use. From deep trenching to bulk excavation, the CX350C is engineered to perform under pressure. Its reinforced structure, heavy-duty undercarriage, and high-strength boom and arm ensure long-term durability in demanding environments. With a spacious, low-noise cab and intuitive operator controls, the CX350C delivers the comfort, visibility, and control needed for all-day productivity on any site.

Model Comparison

Finance Offers

Download Brochure

73 kW (97.9 hp)
92.2 kW (123.6 hp)
122 kW (163.6 hp)
140 kW (187.7 hp)
212 kW (284.3 hp)
212 kW (284.3 hp)
270 kW (362.1 hp)
270 kW (362.1 hp)

Product Features

The CX350C’s advanced Intelligent Hydraulic System integrates five energy-saving functions to optimise performance and reduce operating costs. Boom Economy Control, Auto Energy Safe, and Swing Relief Control minimise wasted flow, improving cycle speed and efficiency while cutting fuel use by up to ten percent. CASE’s hydraulic regeneration technology ensures smoother transitions between functions and faster response times when digging, grading, or lifting. Designed with the operator in mind, the CX350C offers exceptional comfort and convenience. A fully adjustable air suspension seat, large seven-inch display, and ergonomic joystick layout reduce fatigue and improve focus throughout long shifts. Ground-level service access, extended maintenance intervals, and self-diagnostic monitoring help lower downtime and keep your machine performing day after day.

High-Performance Isuzu Engine

The CX350C is powered by a 7.8 L ISUZU Tier 3 engine delivering 286 horsepower and 1020 Nm of torque. With a high-pressure common-rail system and turbocharged intercooler, it provides consistent power, fast response, and impressive fuel efficiency even under heavy load.

High-Performance Isuzu Engine

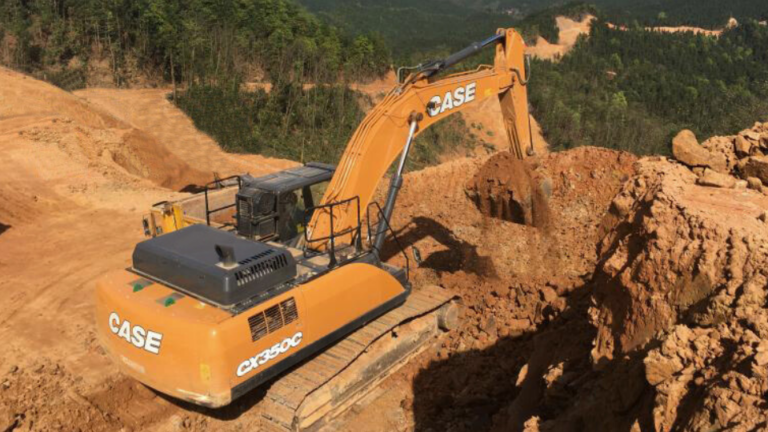

Built for Large-Scale Projects

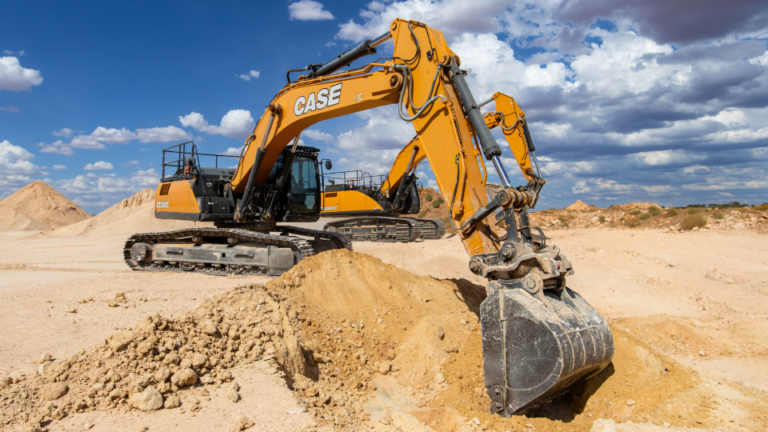

Precision Hydraulics

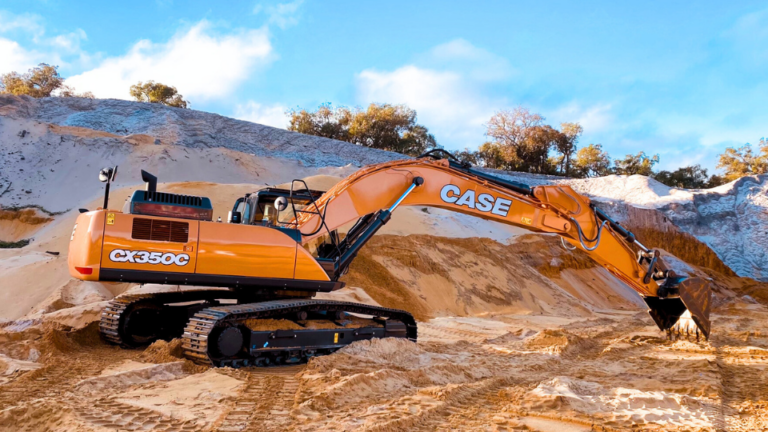

Strength and Stability

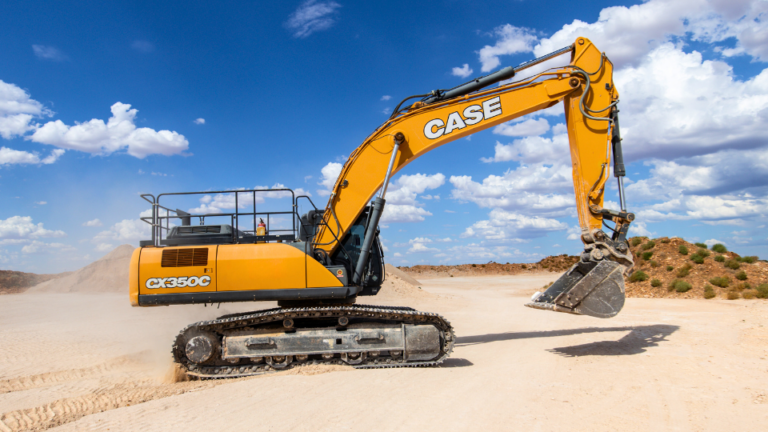

Comfort and Safety in Every Shift

Specifications

Download Brochure

Engine

Name	CX350C
Engine Type	Water-cooled, 4-cycle diesel, 6-cylinder in line, High pressure common rail system (electric control), Turbocharger with air cooled intercooler.
Model	ISUZU GH-6HK1X
Bore/Stroke	115 × 125 mm
Displacement	7.79 l
Horsepower	212 kW (284.3 hp)
Maximum torque	1,020 Nm

Hydraulic System

Name	CX350C
Max oil flow	2 × 300 l/min
Type	2 variable displacement axial piston pumps with regulating system
Boom/Arm/Bucket circuit	34.3 MPa
Boom/Arm/Bucket (with Power Boost)	37.3 MPa
Swing circuit	30.4 MPa
Travel circuit	34.3 MPa

Swing

Name	CX350C
Maximum swing speed	10 min-¹
Swing torque	112,000 Nm

Filters

Name	CX350C
Suction filter	105 μm
Return filter	6 μm
Pilot line filter	8 μm

Travel

Name	CX350C
Travel motor	Variable displacement axial piston motor (automatic travel speed shifting)
Max travel speed	5.4 km/h
Low travel speed	3.4 km/h
Gradeability	35° (70%)
Drawbar pull	263 kN

Electrical System

Name	CX350C
Alternator	50 Amp
Starter motor	5 kW (6.7 hp)
Battery	2 × 12 V 128 Ah / 5 HR

Undercarriage

Name	CX350C
Number of track rollers (each side)	8
Number of shoes (each side)	48
Type of shoe	Triple grouser shoe

Capacities

Name	CX350C
Fuel tank	580 L
Hydraulic system	350 L
Cooling system	32.9 L
Engine Crank Case	41 L

Weight

Name	CX350C
Operating Weight	36,900 kg
