YP825A3P-0840
/ YP825A3P-1640

Fixed Frame Planters

Model Comparison Product Features Specifications

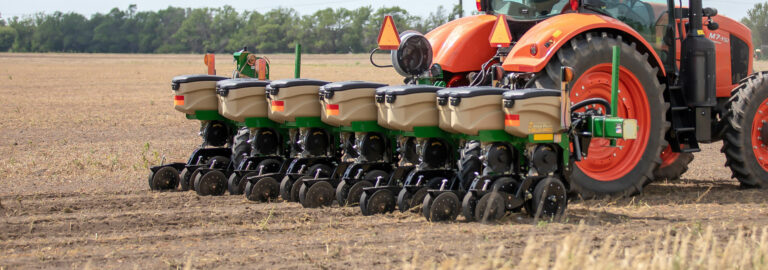

Fixed Frame Planters previewFixed Frame Planters
Great Plains Yield-Pro Planters provide access to the same yield-increasing technologies found in larger planters. Offered in single or twin-row configuration, these compact planters are designed around the Air-Pro metering system, delivering unprecedented spacing and seed placement accuracy. Like their larger Yield-Pro counterparts, Yield-Pro models utilise 25 Series row units for enhanced accuracy, longer life, and easier maintenance than most competitive row units. Not only does the unit come with a broad selection of clear seed discs to handle a variety of seeds. It also comes with the option of closing wheels for a variety of planting styles. A hydraulic fan provides positive air to the Air-Pro meters for exceptional accuracy. Four-inch manifolds and proportional metering rings ensure the same pressure for each row unit without the chance of air leaks.

Model Comparison

Finance Offers
Download Brochure
  • 1,016 mm
  • 1,016 m

Product Features

kubota previewkubota
1
2
3
4
5
6
7

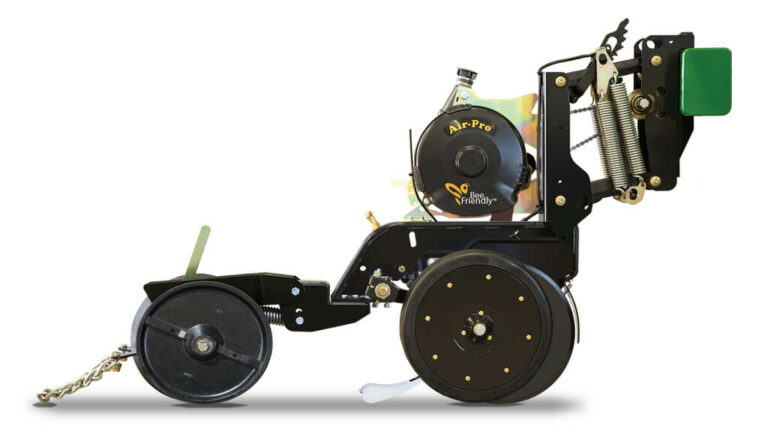

25 Series Row Unit

25 Series Row Unit

The 25 Series row unit utilises ductile cast parallel arms for long-term row unit stability. 381mm, 4mm blades turning on 205 triple-lip seal bearings ensure long life and accurate seed depth. Blades are offset 13mm to slice residue and form a perfect seed trench.

25 Series Row Unit

The 25 Series row unit utilises ductile cast parallel arms for long-term row unit stability. 381mm, 4mm blades turning on 205 triple-lip seal bearings ensure long life and accurate seed depth. Blades are offset 13mm to slice residue and form a perfect seed trench.

25 Series Row Unit

Specifications

Download Brochure
Dimensions & Weight
Name YP825A3P-0840 YP825A3P-1640
Hopper Capacity 106 L 56 L
Frame Width 7.9 m 7.9 m
Length 1.78 m 1.78 m
Working Height 1.47 m 1.47 m
Transport Height 1.98 m 1.98 m
Weight Min. 2,495 kg 3,629 kg
Weight Max. 3,402 kg 5,126 kg
Name YP825A3P-0840 YP825A3P-1640
Row Spacing 1,016 mm 1,016 m
Mounting 3-Point 3-Point
Frame Type Rigid Rigid
No. of Rows 8 16
Min. Tractor Horsepower 120 hp 180 hp
Hydraulic Flow Requirement 38 L/min 38 L/min
Gauge Wheel Size 8R19.5 LT 8R19.5 LT
Opener 25 Series 25 Series
Opener Blade Size 381 mm 381 mm
Opener Travel 254 mm 254 mm
Opener Depth Min. 0 mm 0 mm
Opener Depth Max. 90 mm 90 mm
Opener Down Pressure Min. (Using Standard Spring System) 138 kg/row 138 kg/row
Opener Down Pressure Max. (Using Standard Spring System) 247 kg/row 247 kg/row
Name YP825A3P-0840 YP825A3P-1640
Cast Press Wheel Set
Spider Wheel w/ Drag Chain Press Wheel Set
Gauge Wheel Scrapers
Unit Mounted 15" Fluted Coulters
Spoked Gauge Wheel Set
Name YP825A3P-0840 YP825A3P-1640
Dickey John PM300 Seed Monitor (Seed Tubes & Ground Speed)
7" Square Tube Frame
Blade Separator with Stainless Steel Fertilizer Tube
Clear Shot Seed Tube
Ground Drive System
