Fortima Series Round Balers

Model Comparison Product Features Specifications

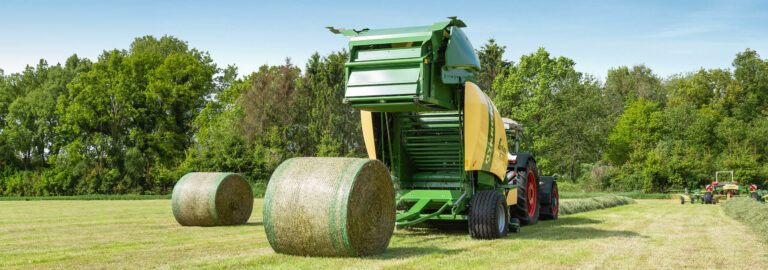

Fortima Series Round Balers previewFortima Series Round Balers
The Fortima series is designed for the toughest conditions, performing in both dry hay and wet silage. Comprised of a chain and slat elevator system these balers are robust and high spec. The Fortima series of round balers is available in V and F models. The Fortima V produces bales at a variable diameter between 1.0 metres to 1.50 metres on the V 1500 model and 1.00 to 1.80 metres on the V 1800 model, catering for grass silage as well as hay and straw. The Fortima F produces bales of a fixed 1.25m.

Model Comparison

Finance Offers
Download Brochure
  • 55 hp
  • 65 hp
  • 70 hp
  • 50 hp
  • 50 hp

Product Features

kubota previewkubota
1
2
3
4

Fixed and Variable Bale Size

The Fortima V series features a variable bale chamber capable of producing bales of multiple sizes. Layer by layer, the two chain elevators press the material into tight, well-shaped round bales as more material enters the bale chamber. The Fortima F series provides bales of a fixed 1.25 metre size.

Fixed and Variable Bale Size

The Fortima V series features a variable bale chamber capable of producing bales of multiple sizes. Layer by layer, the two chain elevators press the material into tight, well-shaped round bales as more material enters the bale chamber. The Fortima F series provides bales of a fixed 1.25 metre size.

Specifications

Download Brochure
Dimensions & Weight
Name F1500-2 F1500MC-2 F1800MC-2 F1250-2 F1250MC-2
Length 4,520 mm 4,520 mm 4,860 mm 4,200 mm 4,200 mm
Height 2,700 mm 2,700 mm 2,850 mm 2,490 mm 2,490 mm
Width 2,570 mm 2,570 mm 2,570 mm 2,570 mm 2,570 mm
Camless Pick-up Work Width 2,050 mm 2,050 mm 2,050 mm 2,050 mm 2,050 mm
Machine Weight 3,220 kg 3,440 kg 3,740 kg 2,150 kg 2,400 kg
Tyre Size 19.0 / 45-17 10PR 19.0 / 45-17 10PR 19.0 / 45-17 10PR 15.0 / 55-17 10PR 15.0 / 55-17 10PR
Name F1500-2 F1500MC-2 F1800MC-2 F1250-2 F1250MC-2
Bale Width & Diameter 1200 x 900-1500 mm 1200 x 900-1500 mm 1200 x 900-1800 mm 1200 x 1250 mm 1200 x 1250 mm
Minimum PTO 55 hp 65 hp 70 hp 50 hp 50 hp
Tine Rows 5 5 5 5 5
Feed Rotor
Multicut Cutter 17 Knives
Blades 17 17 17
Minimum Blade Spacing 64 mm 64 mm 64 mm
Driveshaft Speed 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm
Hydraulic Couplers 2 SA – Free Return Line 2 SA – Free Return Line 2 SA – Free Return Line 2 SA 2 SA
Standard Reverser Optional
Rotor Diameter 415 mm 415 mm 415 mm
Name F1500-2 F1500MC-2 F1800MC-2 F1250-2 F1250MC-2
Chain & Slat Elevator System
Camless Pick-up "EasyFlow" Straight Tine Formation
KMC Electronics System
Feed Rotor
Crop Roller
IsoBus Ready
PTO Wide Angle with Cam Clutch
Roller Crop Guard
Automatic Chain Lubrication
Name F1500-2 F1500MC-2 F1800MC-2 F1250-2 F1250MC-2
Tandem Axle Optional Optional Optional Optional Optional
Single Axle
Double System Net & Twine
Bale Kicker
Comfort ECU Job Computer
DS500 Monitor
IsoBus Cable
Safety Chain
