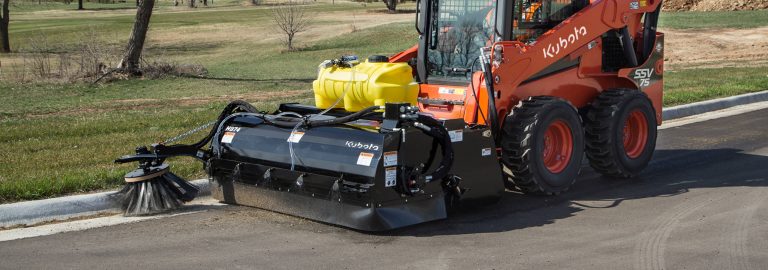

Hopper Brooms HB Series

The Hopper Brooms are ideal for construction site cleanup, road maintenance, light snow removal on paved surfaces, and cart path maintenance. Options include poly, wire or blended poly brush with hydraulic or manual angle adjusters.

Product Features

Heavy-Duty Bucket

Heavy-duty bucket offers a 3/16" shell, and is tapered front to back to help hold in material.

Heavy-Duty Bucket

Heavy-duty bucket offers a 3/16" shell, and is tapered front to back to help hold in material.

Specifications

Highlight differences

Download Brochure

Dimensions

Name	HB74	HB84
Weight Base Unit w/ Brush	568 kg	621 kg
Weight – Gutter Broom	46 kg	46 kg
Weight – Dust Suppression	88 kg	93 kg
Weight – Dust Suppression w/ Gutter Broom	89 kg	95 kg
Width	2.08 m	2.34 m
Height	1.17 m	1.17 m

Specifications

Name	HB74	HB84
No. of Broom Wafers	36	41
Sweeping Width	1.88 m	2.13 m
Sweeping Width w/ Gutter Broom	2.18 m	2.44 m
Broom Diameter	66cm	66cm
Bucket Shell Thickness	4.8 mm	4.8 mm
Bolt-on Cutting Edge Thickness	16 mm	16 mm
Bolt-on Cutting Edge Width	203 mm	203 mm
Broom Hood Thickness	2.6 mm	2.6 mm
Optional Water Tank Capacity	95 L	95 L

Hydraulics

Name	HB74	HB84
Min. Hydraulic Flow	45 L/min	45 L/min
Max. Hydraulic Flow	95 L/min	95 L/min
Max. Hydraulic Pressure	3,500 psi	3,500 psi
