SSH (Hitch)

In-Line Sub-Soiler Hitch

Model Comparison Product Features Specifications

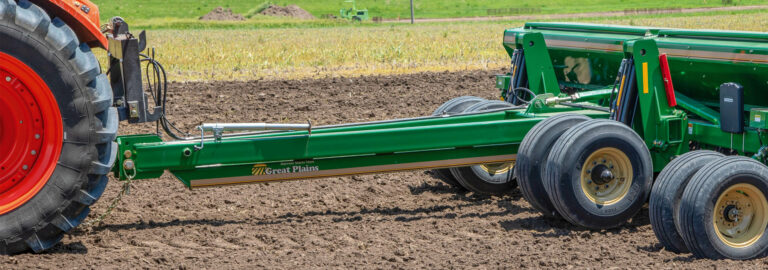

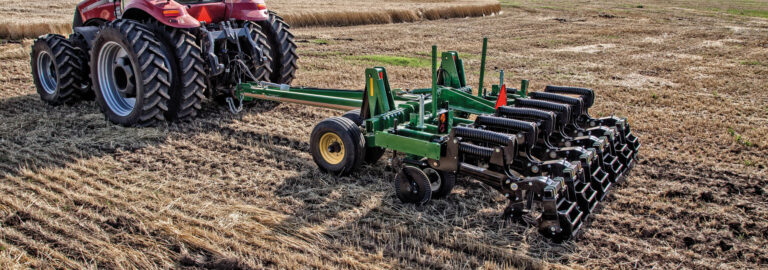

Originally designed for the rigors of sub-soiling, the Great Plains Sub-Soiler Hitch is quite capable as a tough 3-point pull package. The SSH transforms 3-point sub-soilers, no-till drills, and other 3-point implements into pull-type machines – no longer requiring the normal hassle of hooking and unhooking to the tractor’s 3-point hitch. The rugged design allows it to handle equipment up to 6803kg.

Model Comparison

Finance Offers

1,379 kg

Product Features

Sub-Soiler and Pull Hitches (SSH & PH)

Built for durability, the Sub-Soiler Hitch transforms 3-point implements into pull-type machines, handling up to 15,000 lbs with ease. Its heavy-duty design eliminates the hassle of manual hitching, while the Pull Hitch offers an economical option with a single hydraulic lift cylinder and the choice of single or double gauge wheels.

Sub-Soiler and Pull Hitches (SSH & PH)

Specifications

Dimensions & Weight

Name	SSH (Hitch)
Weight	1,379 kg

Specifications

Name	SSH (Hitch)
Tractor Attachment	Drawbar
Tyre Size	12.5L x 15"

Standard Options

Name	SSH (Hitch)
Cast Hitch Strap Category IV

Standard Features

Name	SSH (Hitch)
Large Cast Strap Hitch Adjustable for Differing Hitch Heights
Lift Range at Quick Hitch: 356mm to 1041mm
Adjustable Dual Centres	505mm or 622mm
Min Guage Wheel Centres	1,930 mm
Max Guage Wheel Centres	2,388 mm
Re-Phasing Hydraulic Cylinders on Gauge Wheels
Heavy Turnbuckle Top Link
Transport Lock Channels
Compatible w/ 1200, 1500, 2000 Drills
Light Harness Extension
Spring Rose Bracket on Strap Hitch
Accommodates Category II, IIIN, or III
Safety Chain
Jack
Depth Stop Kit
