1200-2406
/ 1200-1975
/ 1500-3006
/ 1500-2475
/ 2000-4006
/ 2000-3275

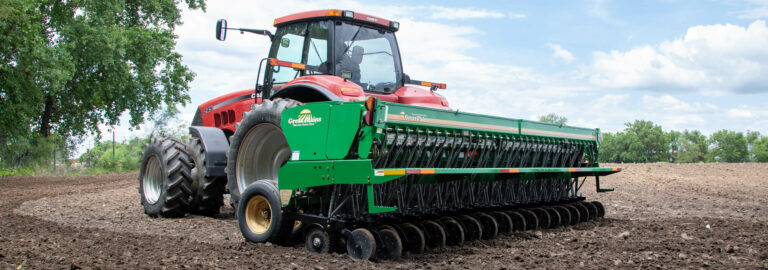

Large 3-Point Linkage Mounted Min-Till Drills
Model Comparison
- 3,660 mm
- 3,660 mm
- 4,570 mm
- 4,570 mm
- 6,100 mm
- 6,100 mm
Product Features
1
2
3
4
5
6
7

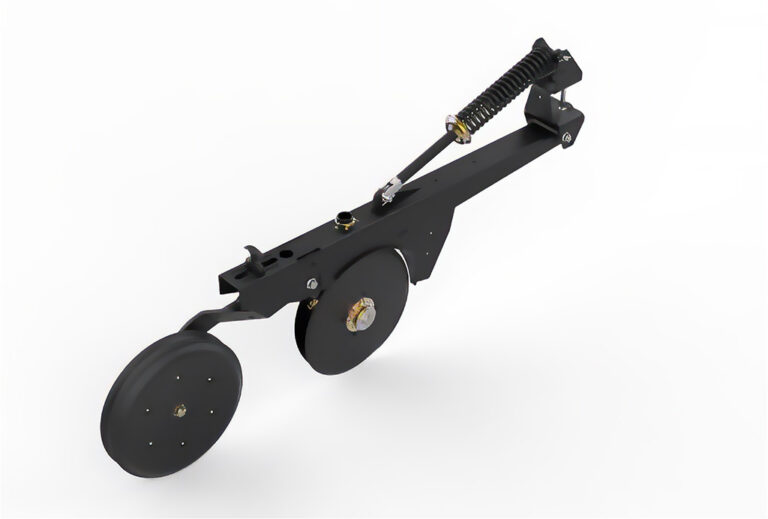

00 Series Opener
00 Series openers feature a proven welded box design, 13.5", 4mm blades mounted on 205 triple-lip sealed bearings, and have a ¼" lead opener blade for easier penetration in tough conditions.
00 Series Opener
00 Series openers feature a proven welded box design, 13.5", 4mm blades mounted on 205 triple-lip sealed bearings, and have a ¼" lead opener blade for easier penetration in tough conditions.

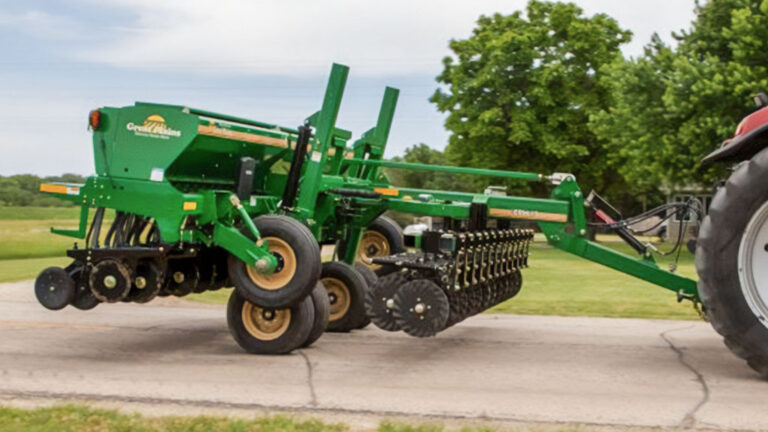

Optional Centre Pivot Hitch
View Attachment

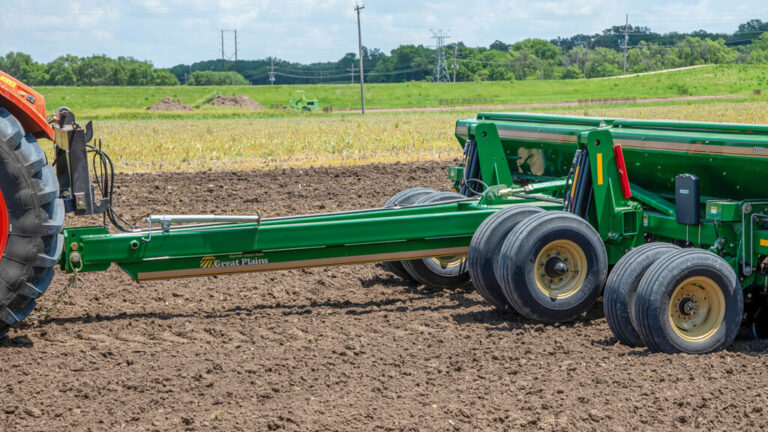

Optional Towing Hitch
View Attachment
| Name | 1200-2406 | 1200-1975 | 1500-3006 | 1500-2475 | 2000-4006 | 2000-3275 |
|---|---|---|---|---|---|---|
| Row Spacing | 154 mm | 191 mm | 152 mm | 191 mm | 152 mm | 191 mm |
| Number Of Rows | 24 | 19 | 30 | 24 | 40 | 32 |
| Tyre Size | 9.5Lx15 | 9.5Lx15 | 9.5Lx15 | 9.5Lx15 | 11Lx15 | 11Lx15 |
| Weight Approx. | 1,342 kg | 1,206 kg | 1,621 kg | 1,653 kg | 2,168 kg | 1,950 kg |
| Working Width | 3,660 mm | 3,660 mm | 4,570 mm | 4,570 mm | 6,100 mm | 6,100 mm |
| Transport Width | 3,940 mm | 3,940 mm | 4,850 mm | 4,850 mm | 6,400 mm | 6,400 mm |
| Height | 2,540 mm | 2,540 mm | 2,540 mm | 2,540 mm | 2,540 mm | 2,540 mm |
| Opener Travel | 203 mm | 203 mm | 203.2 mm | 203.2 mm | 203.2 mm | 203.2 mm |
| Opener Depth Range Min. | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm |
| Opener Depth Range Max. | 89 mm | 89 mm | 88.9 mm | 88.9 mm | 88.9 mm | 88.9 mm |
| Opener Down Pressure Min. | 41 kg | 41 kg | 41 kg | 41 kg | 41 kg | 41 kg |
| Opener Down Pressure Max. | 82 kg | 82 kg | 82 kg | 82 kg | 82 kg | 82 kg |
| Double Disc Opener Diameter | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Double Disc Opener Thickness | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm |
| Main Box Capacity | 1,015 l | 1,015 L | 1,269 l | 1,269 L | 1,691 L | 1,691 l |
| Small Seed Box Capacity | 102 l | 102 L | 127 l | 127 L | 169 L | 169 l |
| Fertiliser Box Capacity | 340 l | 340 L | 425 l | 425 L | 425 L | 425 l |
| Name | 1200-2406 | 1200-1975 | 1500-3006 | 1500-2475 | 2000-4006 | 2000-3275 |
|---|---|---|---|---|---|---|
| Primary Design | Min-Till | Min-Till | Min-Till | Min-Till | Min-Till | Min-Till |
| Tractor Attachment | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage |
| Opener Series | 00 Series | 00 Series | 00 Series | 00 Series | 00 Series | 00 Series |
| Name | 1200-2406 | 1200-1975 | 1500-3006 | 1500-2475 | 2000-4006 | 2000-3275 |
|---|---|---|---|---|---|---|
| Box | Main Seed, Small Seeds & Fertiliser | ||||||
| 4-Speed Gearbox | ||||||
| Electronic Acre Meter | ||||||
| Double Gauge Wheel Heavy Duty | ||||||
| Walk Board & Ladder | ||||||
| Walk Board Handrail | ||||||
| Light Kit Package | Yes (with brake signal) | Yes (with brake signal) | Yes (with brake signal) | Yes (with brake signal) | Yes (with brake signal) | Yes (with brake signal) |
| Seed Cup w/ Powdered Metal Flutes | ||||||
| Weather Proof Lids | ||||||
| V-bottom Dividers | ||||||
| Seed Box Level Indicator | ||||||
| T-handle Depth Control Adjustment | ||||||
| Protected Gauge Wheel Drive Chain | ||||||
| Lift Assist Cylinder On Box Lid | ||||||
| Press Wheel | 51x330 mm | 51x330 mm | 51 x 330 mm | 51 x 330 mm | 51 x 330 mm | 51 x 330 mm |
| Main Seedbox Agitator | ||||||
| Adjustable Press Wheel Scrapers | ||||||
| Single Gauge Wheel Heavy Duty | ||||||
| CAT II Hitch Compatible | ||||||
| CAT III Hitch Compatible |
| Name | 1200-2406 | 1200-1975 | 1500-3006 | 1500-2475 | 2000-4006 | 2000-3275 |
|---|---|---|---|---|---|---|
| Towing Hitch Option | ||||||
| Center Pivot Hitch Option | ||||||
| Seed Cup Calibration Tool | ||||||
| Irwin Hose Clamp Pliers | ||||||
| Seed Cup Plugs | Main Seed Box | ||||||
| Seed Cup Plugs | Small Seed Box | ||||||
| Keeton Seed Firmers |
