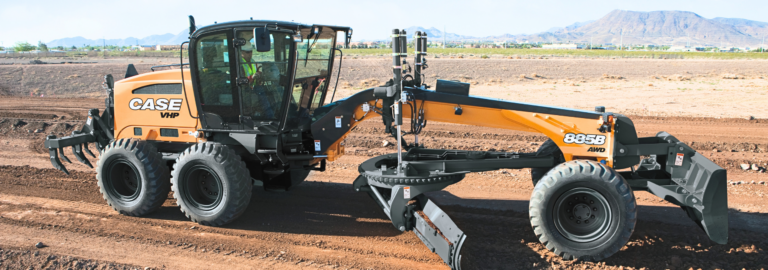

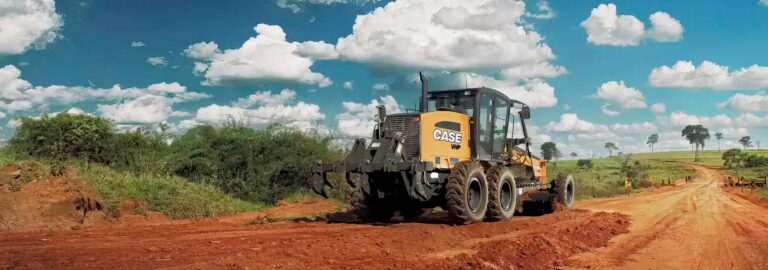

CASE 885B Series 2 Motor Grader

The CASE 885B Series 2 is built for large civil projects that demand strong push, clean blade control and steady output over long working days. The powerful FPT engine uses a variable power curve to deliver responsive torque during heavy cuts and smooth performance at higher travel speeds. The lock up function in the transmission keeps the machine in direct drive once momentum builds, helping maintain pace on haul roads and broad trim runs. The load sensing hydraulic system adds fine control during complex blade movements, giving operators the ability to cut, shape and finish with accuracy on varied ground conditions.

Model Comparison

Finance Offers

Download Brochure

138 hp
138 hp
223 hp

Product Features

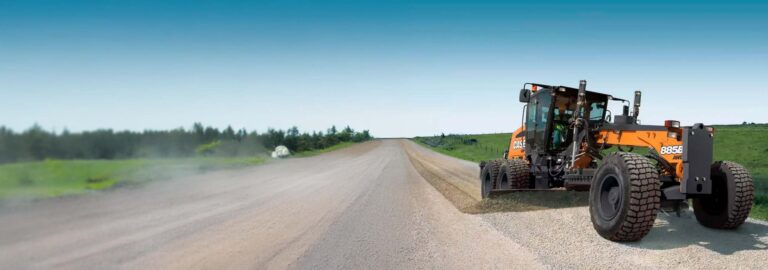

The rear mounted cab places the operator in the best position to monitor the moldboard, circle and front frame, improving accuracy during demanding trim work. Wide glass, low cabin noise and a suspension seat support comfort across long shifts, while the clear sight lines give operators the confidence to work at pace in both open and confined spaces. Routine checks are simple thanks to grouped service points, a flip up hood and open access around the engine and hydraulic layout. External circle teeth help reduce material build up and wear, keeping the grader reliable, consistent and ready for high output work day after day.

Direct Drive Performance

The lock up function keeps the CASE 885B moving with strong, steady drive by switching from hydraulic coupling to direct power transfer once the machine is at speed. This improves fuel use, reduces slip and helps the grader cover ground faster while still keeping smooth, controlled push for heavy cutting and shaping.

Direct Drive Performance

Specifications

Download Brochure

Engine

Name	885B 2
Maximum Power (from 1st to 3rd gear)	223 hp
Maximum Power (from 4th to 6th gear)	238 hp
Governed	-
Make & model	FPT F4HE9687K
Aftertreatment system	-
Donaldson air filter with dust ejector	-
Type	Electronic common rail fuel system, water cooled, 4 cycle,direct injection, turbocharged and charge air cooled
Displacement	6.7 l
Number of cylinders	6, in-line
Bore & stroke	104x132 mm
Maximum torque	924 Nm

Torque Converter

Name	885B 2
Converter ratio	-

Transmission

Name	885B 2
Type	ZF TC LOCK UP 6WG – 210
Tractive effort (adeherence coefficient 0.8)	-

Axle Front

Name	885B 2
Axle oscillation	-
Wheel lean	-
Ground clearance	-

Axle Rear Tandem

Name	885B 2
Oscillation	20º in each direction
Tandem box Height	631 mm
Tandem box Width	200.5 mm
Tandem box Wall thickness	19 mm
Tandem box Chain pitch	50.8 mm
Tandem wheelbase	2,204 mm

Steering

Name	885B 2
Steering wheel lock. left/right	4.5°/3.2°
Steering wheel lock. left/right	4.5°/3.2°
Articulated frame with 2 double-flow steering cylinders: Articulation angle	-
Minimum turning radius: across front blade	-

A-Frame

Name	885B 2
L-profile cross section	-

Slewing Ring

Name	885B 2
Diameter	-
Action radius	-

Moldboard

Name	885B 2
Width	4,267 mm
Blade height/thickness	-/22 mm
Cutting edge height/thickness	2, interchangeable
Bolt diameter	-

Moldboard Settings

Name	885B 2
Shifting to the right	686 mm
Shifting to the left	533 mm
Reach across tyres w/o articulated steering right horizontal	-
Reach across tyres w/o articulated steering left horizontal	-
Reach across tyres with articulated steering right horizontal	-
Reach across tyres with articulated steering left horizontal	-
Max. slope angle right	-
Max. slope angle left	-
Max. lift height above ground	444.5 mm
Max. scraping depth	711.2 mm
Cutting angle adjustment, hydr	90°

Hydraulic System

Name	885B 2
Hydraulic pump	Piston pump, variable displacement pressure and flow compensated, load sensing
Max delivery	186 I/min
Max pressure	-
Pressure relief setting	215 bar

Frame

Name	885B 2
Front frame	Box section
Cross-section	254 x 298 mm
Wall thickness	-
Rear frame	Beam (welded)
Cross-section	254 x 298 mm

Cab

Name	885B 2
ROPS according to EEC sample testing	-
FOPS according to EEC sample testing	-
Cab noise level	-
External noise level	-

Electrical System

Name	885B 2
Voltage	24 V
Batteries	2x100 Ah - low maintenance
Alternator	90 A
Starter	-

Capacities

Name	885B 2
Lube oil	15 l
Coolant (Including: cooler and Heater)	32 l
Transmission (including converter and cooling)	31 l
Axle gear	-
Tandem	69 l
Worm gear	2.8
Hydraulic tank	90 l
Hydraulic oil, total	148 l
Fuel tank	360 l
