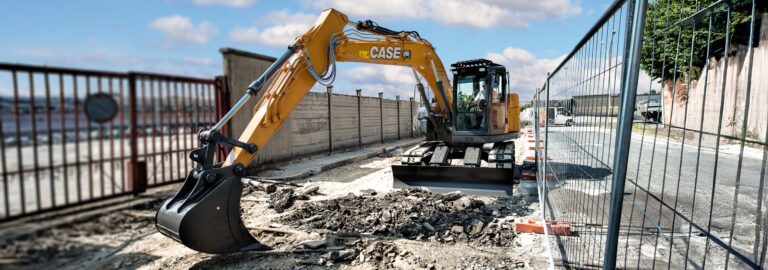

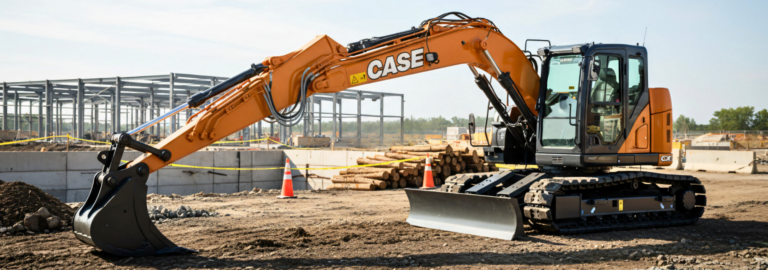

CASE CX145CSR Short Radius Excavator

Model Comparison Product Features Attachments Specifications

The CASE CX145C SR delivers powerful performance in a compact footprint. Built for operators who need strength, stability, and reach in tight environments, this short radius excavator combines the efficiency of CASE’s Intelligent Hydraulic System with a proven Tier 3 ISUZU engine. The result is smooth, responsive control with impressive digging and lifting capability across every application. Designed for demanding work on roadsides, bridges, and busy urban environments where space is tight, the CX145C SR brings big-machine capability into confined worksites, making it ideal for civil contractors, local councils, and construction crews who need to dig, lift, and load safely and efficiently in restricted areas while maintaining low noise levels, reduced fuel consumption, and the reliability that CASE machines are known for.

Model Comparison

Finance Offers

Download Brochure

70.9 kW (95.1 hp)
117.3 kW (157.3 hp)

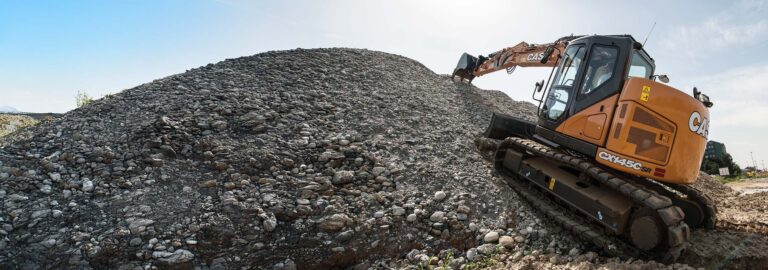

Product Features

Every detail of the CX145C SR has been engineered for reliability and low ownership costs. Robust construction, high-quality components, and a heavy-duty undercarriage ensure durability in tough conditions. All filters and service points are accessible from ground level, while CASE’s standard EMS bushings extend greasing intervals to 1,000 hours, helping you spend more time on the job and less on maintenance. Inside the ROPS/FOPS Level 2 cab, operators benefit from automotive-level comfort with an adjustable suspension seat, advanced climate control, and a wide glazed area for outstanding visibility. The full-colour multifunction display provides real-time machine data, on-board diagnostics, and an ECO gauge for monitoring fuel efficiency, giving you total control and confidence in every task.

Short Swing Radius

The CX145C SR’s short radius design delivers exceptional power and stability in tight areas. It’s ideal for road construction, bridge work, and urban projects where space is limited, letting you dig, lift, and swing safely without the risk of machine damage or reduced performance.

Short Swing Radius

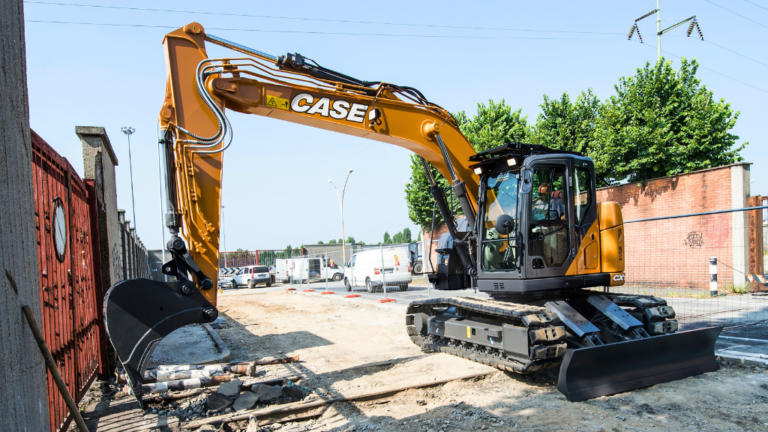

Precision Hydraulics

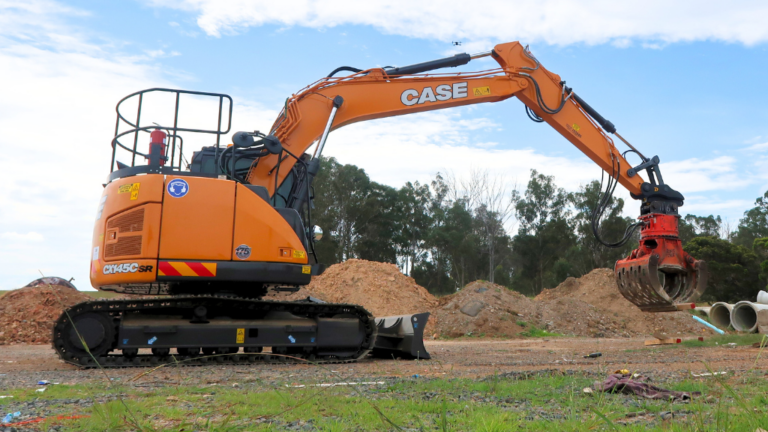

Power When You Need It

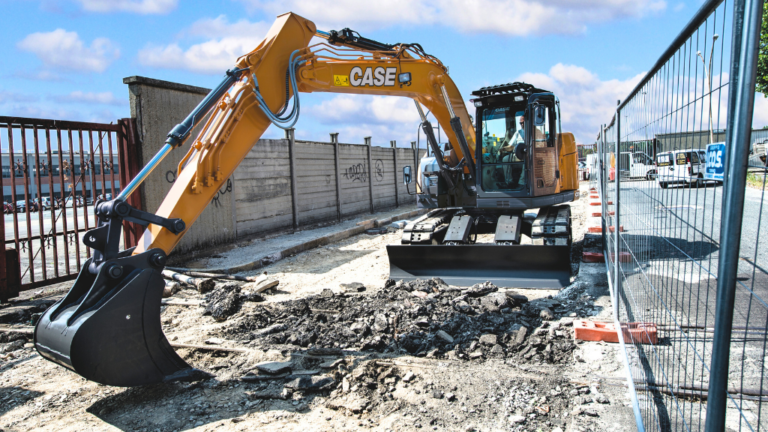

Built for Tight Spaces

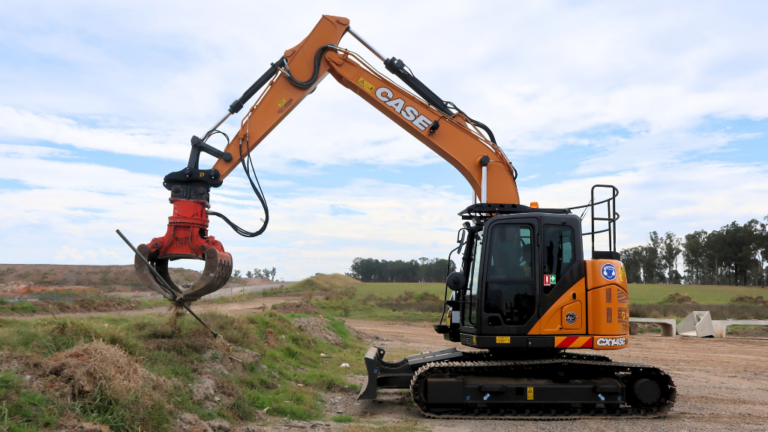

Low Maintenance, Long Life

Specifications

Highlight differences

Download Brochure

Engine

Name	CX145CSR	CX235CSR
Engine Type	Water-cooled, 4-cycle diesel, 4-cylinder in line,Turbocharger with air cooled intercooler	Water-cooled, 4-cycle diesel, 4-cylinder in line, High pressure common rail system (electric control), Turbocharger with air cooled intercooler
Model	ISUZU GJ-A4JJ1X	ISUZU GI-4HK1X
Bore/Stroke	95.4 x 104.9 mm	115 x 125 mm
Horsepower	70.9 kW (95.1 hp)	117.3 kW (157.3 hp)
Maximum torque	340 Nm	608 Nm

Hydraulic System

Name	CX145CSR	CX235CSR
Max oil flow	2 x 129 l/min	2 x 211 l/min
Type	2 variable displacement axial piston pumps with regulating system	2 variable displacement axial piston pumps with regulating system
Boom/Arm/Bucket	343 Bar	343 Bar
Boom/Arm/Bucket (with auto power up)	363 Bar	368 Bar
Swing circuit	280 Bar	294 Bar
Travel circuit	343 Bar	343 Bar
Auxiliary hydraulic flow and pressure for attachments	343 Bar	343 Bar

Swing

Name	CX145CSR	CX235CSR
Maximum swing speed	11.2 min-¹	11.8 min-¹
Swing torque	37,000 Nm	64,000 Nm

Travel

Name	CX145CSR	CX235CSR
Travel motor	Fixed displacement axial piston motor	Fixed displacement axial piston motor
Max travel speed	5.6 km/h	5 km/h
Low travel speed	3.4 km/h	3.2 km/h
Gradeability	35° (70%)	35° (70%)
Drawbar pull	116 kN	201 kN

Electrical System

Name	CX145CSR	CX235CSR
Voltage	24 V	24 V
Alternator	50 Amp	50 Amp

Undercarriage

Name	CX145CSR	CX235CSR
Number of carriers rollers (each side)	1	N/A
Number of track rollers (each side)	7	7
Number of shoes (each side)	43	46
Type of shoe	Triple grouser shoe	Triple grouser shoe

Capacities

Name	CX145CSR	CX235CSR
Fuel tank	200 L	320 L
Hydraulic system	158 L	252 L
Cooling system	15.3 L	30.9 L
Noise level inside cab	73 dB(A)	73 dB(A)

Weight

Name	CX145CSR	CX235CSR
Operating Weight	14,900 kg	24,200 kg

Dimensions

Name	CX145CSR	CX235CSR
Overall length (without attachment)	4,160 mm	4,700 mm
Overall length (with attachment)	7880 7 mm	9,210 mm
Overall height (with attachment)	2,900 mm	3,090 mm
Cab height	2,900 mm	3,140 mm
Upper structure overall width	2,490 mm	2,990 mm
Swing (rear end) radius	1,490 mm	N/A
Clearance height under upper structure	880 mm	1,020 mm
Minimum ground clearance	425 mm	440 mm
Wheel base (Center to center of wheels)	2,790 mm	3,370 mm
Crawler overall length	3,500 mm	4,180 mm
Track gauge	1,990 mm	2,200 mm
Undercarriage overall width (with 500 mm shoes)	2,490 mm	2,800 mm
Crawler tracks height	780 mm	920 mm
Boom length	4,630 mm	5,700 mm
Bucket radius	1,200 mm	N/A
Bucket wrist action	178 °	177 °
Maximum reach at GPR	8,140 mm	N/A
Maximum reach	8,290 mm	9,370 mm
Max. digging depth	5,510 mm	6,120 mm
Max digging height	9,340 mm	N/A
Max. dumping height	6,940 mm	7,630 mm

Digging Force

Name	CX145CSR	CX235CSR
Arm digging force	62 kN	123 kN
Arm digging force - with auto power up	66 kN	132 kN
Bucket digging force	90 kN	142 kN
Bucket digging force - with auto power up	95 kN	152 kN
