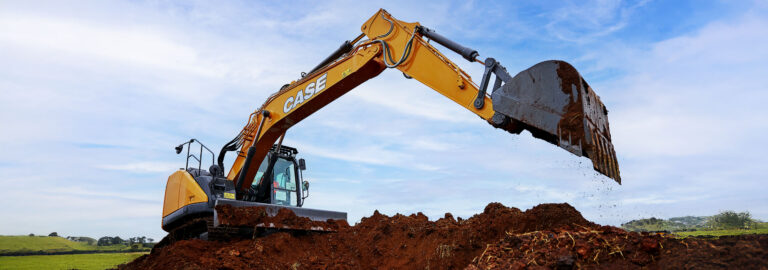

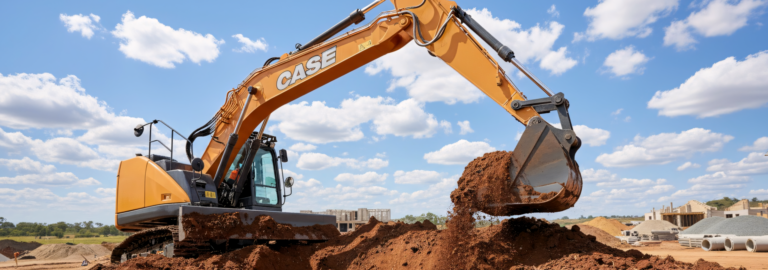

CASE CX235CSR Short Radius Excavator

Model Comparison Product Features Attachments Specifications

The CASE CX235C SR combines the muscle of a full-size excavator with the agility of a short-radius design. Powered by a Tier 3 ISUZU engine and advanced hydraulic control, it delivers strong breakout force, excellent fuel efficiency, and precise handling in confined spaces. This model is ideal for operators who need reliable performance, low noise, and maximum stability on urban and infrastructure projects where every centimetre counts. With fast cycle times, intuitive controls, and the strength to take on heavy lifting, the CX235C SR is built to excel on roadwork, bridge construction, bulk excavation, and large-scale civil projects. Its short swing radius and balanced weight distribution make it easy to dig, lift, and load in tight conditions, providing smooth, consistent power and precision across every application while keeping operating costs low and productivity high.

Model Comparison

Finance Offers

Download Brochure

70.9 kW (95.1 hp)
117.3 kW (157.3 hp)

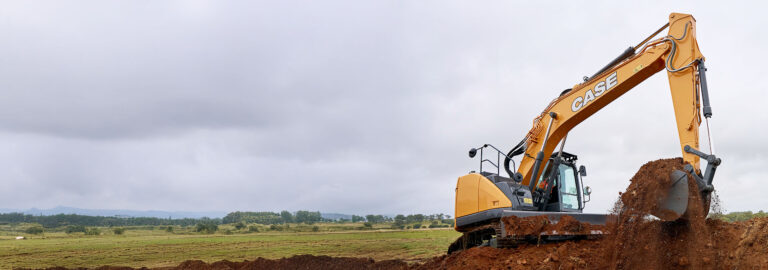

Product Features

Every component of the CX235C SR is designed for maximum productivity and long-term reliability. The reinforced undercarriage, high-grade steel construction, and advanced hydraulic system deliver the strength and durability needed for tough jobsite conditions. CASE’s Intelligent Hydraulic System (CIHS) automatically adjusts hydraulic output to match the workload, helping operators move more material faster while reducing fuel burn. The result is outstanding efficiency, lower operating costs, and consistent performance no matter the terrain or task. Operator comfort and visibility are just as refined. The ROPS/FOPS Level 2 cab provides a quiet, pressurised environment with automatic climate control, a multi-adjustable suspension seat, and intuitive, low-effort controls. A large, full-colour display provides access to diagnostics, fuel monitoring, and maintenance alerts, keeping you informed and in control at all times. Combined with smart design, reduced vibration, and automotive-grade finish, the CX235C SR gives operators a superior experience that translates directly into higher daily output and reduced fatigue.

Short Swing Radius

The CX145C SR is purpose built for jobs where every centimetre counts. Its short tail swing and compact upper frame allow safe and confident operation in narrow spaces, from roadside work and bridge construction to tight urban job sites. With precise balance and a powerful hydraulic system, it delivers full size digging capability without the risk of machine damage in confined areas.

Short Swing Radius

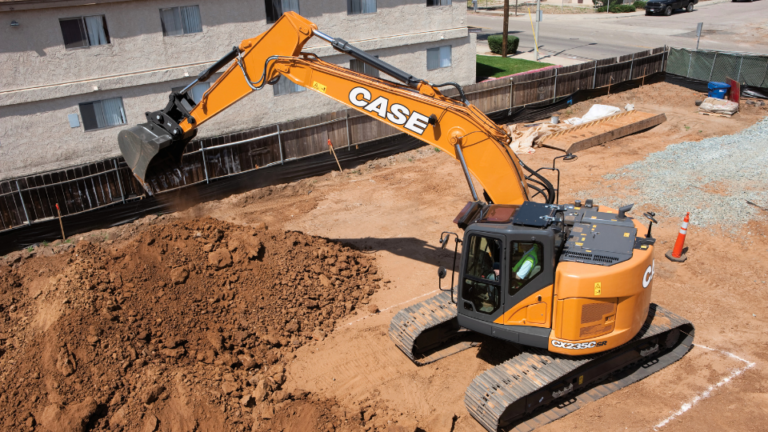

Built for Tight Spaces

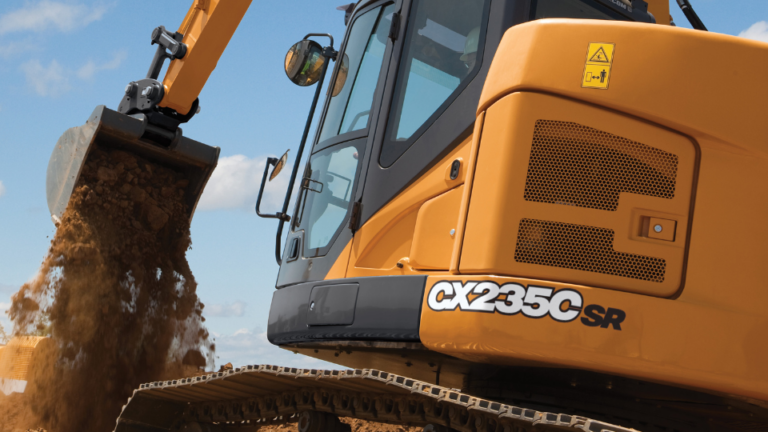

Precision Hydraulics

Power When You Need It

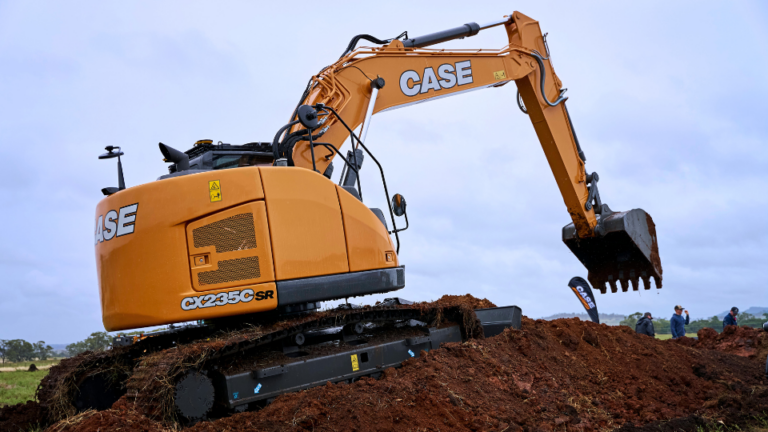

Operator Comfort and Safety

Specifications

Highlight differences

Download Brochure

Engine

Name	CX145CSR	CX235CSR
Engine Type	Water-cooled, 4-cycle diesel, 4-cylinder in line,Turbocharger with air cooled intercooler	Water-cooled, 4-cycle diesel, 4-cylinder in line, High pressure common rail system (electric control), Turbocharger with air cooled intercooler
Model	ISUZU GJ-A4JJ1X	ISUZU GI-4HK1X
Bore/Stroke	95.4 x 104.9 mm	115 x 125 mm
Horsepower	70.9 kW (95.1 hp)	117.3 kW (157.3 hp)
Maximum torque	340 Nm	608 Nm

Hydraulic System

Name	CX145CSR	CX235CSR
Max oil flow	2 x 129 l/min	2 x 211 l/min
Type	2 variable displacement axial piston pumps with regulating system	2 variable displacement axial piston pumps with regulating system
Boom/Arm/Bucket	343 Bar	343 Bar
Boom/Arm/Bucket (with auto power up)	363 Bar	368 Bar
Swing circuit	280 Bar	294 Bar
Travel circuit	343 Bar	343 Bar
Auxiliary hydraulic flow and pressure for attachments	343 Bar	343 Bar

Swing

Name	CX145CSR	CX235CSR
Maximum swing speed	11.2 min-¹	11.8 min-¹
Swing torque	37,000 Nm	64,000 Nm

Travel

Name	CX145CSR	CX235CSR
Travel motor	Fixed displacement axial piston motor	Fixed displacement axial piston motor
Max travel speed	5.6 km/h	5 km/h
Low travel speed	3.4 km/h	3.2 km/h
Gradeability	35° (70%)	35° (70%)
Drawbar pull	116 kN	201 kN

Electrical System

Name	CX145CSR	CX235CSR
Voltage	24 V	24 V
Alternator	50 Amp	50 Amp

Undercarriage

Name	CX145CSR	CX235CSR
Number of carriers rollers (each side)	1	N/A
Number of track rollers (each side)	7	7
Number of shoes (each side)	43	46
Type of shoe	Triple grouser shoe	Triple grouser shoe

Capacities

Name	CX145CSR	CX235CSR
Fuel tank	200 L	320 L
Hydraulic system	158 L	252 L
Cooling system	15.3 L	30.9 L
Noise level inside cab	73 dB(A)	73 dB(A)

Weight

Name	CX145CSR	CX235CSR
Operating Weight	14,900 kg	24,200 kg

Dimensions

Name	CX145CSR	CX235CSR
Overall length (without attachment)	4,160 mm	4,700 mm
Overall length (with attachment)	7880 7 mm	9,210 mm
Overall height (with attachment)	2,900 mm	3,090 mm
Cab height	2,900 mm	3,140 mm
Upper structure overall width	2,490 mm	2,990 mm
Swing (rear end) radius	1,490 mm	N/A
Clearance height under upper structure	880 mm	1,020 mm
Minimum ground clearance	425 mm	440 mm
Wheel base (Center to center of wheels)	2,790 mm	3,370 mm
Crawler overall length	3,500 mm	4,180 mm
Track gauge	1,990 mm	2,200 mm
Undercarriage overall width (with 500 mm shoes)	2,490 mm	2,800 mm
Crawler tracks height	780 mm	920 mm
Boom length	4,630 mm	5,700 mm
Bucket radius	1,200 mm	N/A
Bucket wrist action	178 °	177 °
Maximum reach at GPR	8,140 mm	N/A
Maximum reach	8,290 mm	9,370 mm
Max. digging depth	5,510 mm	6,120 mm
Max digging height	9,340 mm	N/A
Max. dumping height	6,940 mm	7,630 mm

Digging Force

Name	CX145CSR	CX235CSR
Arm digging force	62 kN	123 kN
Arm digging force - with auto power up	66 kN	132 kN
Bucket digging force	90 kN	142 kN
Bucket digging force - with auto power up	95 kN	152 kN
