1110EX-D

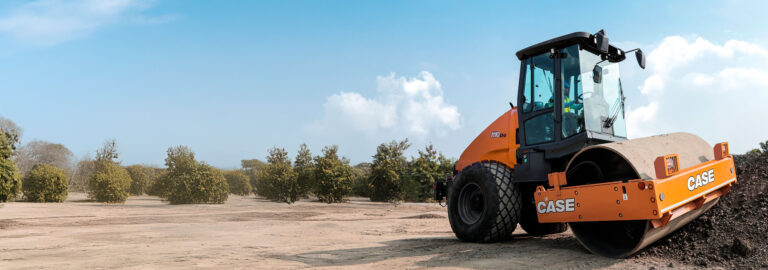

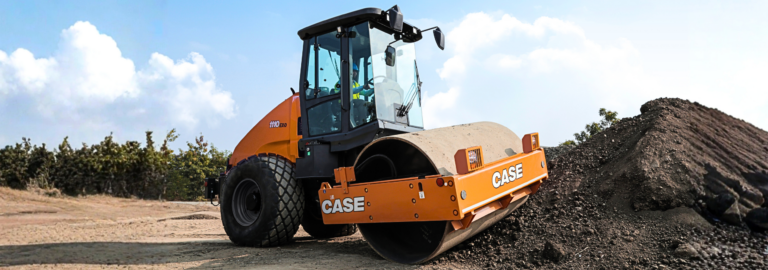

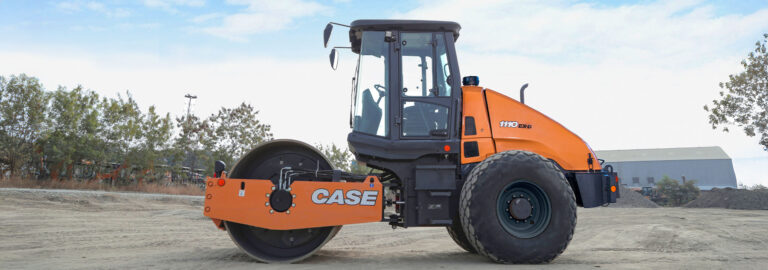

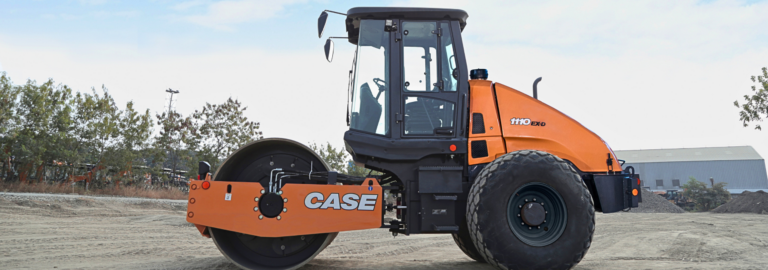

Case Single Drum Roller 1110EX-D
Model Comparison
- 110 hp
Product Features
1
2
3
4
Reliable FPT S8000 Tier III Engine
The 1110EX-D and 1110EX-PD are powered by the proven FPT S8000 Tier III engine — a 4-cylinder, turbocharged, water-cooled design delivering 110 hp and 430 Nm of torque. Equipped with an air aftercooler system and internal EGR, it increases air density for greater efficiency and reduced fuel consumption. With more than three million units in operation globally, this engine is renowned for its reliability and low maintenance needs.
| Name | 1110EX-D |
|---|---|
| Make | FPT |
| Model | S8000 - TIER lII |
| Type | turbocharged & aftercooled |
| Cylinders | 4 |
| Bore/stroke | 104 x 115 |
| Displacement | 3.9 L |
| Fuel injection | Direct |
| Fuel | High speed diesel |
| Fuel filter | Spin-on type |
| Air intake | Turbocharged with internal EGR |
| Air filter | Replaceable dry type with dual element & coupled with turbo pre-cleaner |
| Engine oil filter | Spin-on type |
| Cooling | Liquid |
| Engine speeds (no load) - Low (±50) | 950 rpm |
| Engine speeds (no load) - High (±25) | 2,150 rpm |
| Max. power (ISO14396) | 110 hp |
| Max. torque (ISO14396) | 430 Nm |
| Max. torque (ISO14396) | 430 Nm |
| Name | 1110EX-D |
|---|---|
| Type | Variable displacement bi-directional axial piston pump with manual displacement control |
| Drive to vibration pump | Mechanical |
| Engine to pump ratio | Direct Drive 1:1 |
| Vibration motor | Fixed displacement mounted on drum |
| Name | 1110EX-D |
|---|---|
| Steering system | Hydraulic assisted articulated |
| Steering angle | 37 ° |
| Turning radius (inner radius) | 3.42 m |
| Drum oscillation angle | 15 ° |
| Tyre size | 23.1/26 |
| Name | 1110EX-D |
|---|---|
| Alternator output (with/without cab) | 65 A/105 A |
| Battery | exide, 12V/ 130Ah |
| Name | 1110EX-D |
|---|---|
| Fuel tank | 235 L |
| Hydraulic tank | 70 L |
| Engine crank | 9.1 L |
| Engine coolant | 15 L |
| Name | 1110EX-D |
|---|---|
| Type | Variable displacement bi-directional axial piston pump with manual displacement control |
| Drive pump | Mechanical |
| Engine to pump ratio | Direct drive 1:1 |
| Displacement (cc/Rev) | 78 |
| Flow @2200 RPM | 171 |
| Charge pressure @1800rpm | 22 bar |
| Drive motors - Type | High speed low torque, bentaxis, axial piston dual displacement motor connected to rear axle |
| Drive motors - Drum drive | Radial piston motor, fixed displacement mounted on drum |
| Radial piston motor, fixed displacement mounted on drum | Cartridge |
| Drive motors - Axle | Heavy duty with integrated parking brake mechanism and integrated differential unit along with out board planetary geared wheel hub |
| Drive motors - Parking brake | Spring applied hydraulically released |
| Drive motors - Engagement | Operate on /off parking brake switch on instrument panel, engine stop |
| Machine speed - Working speed | 0-5.5 km/h |
| Machine speed - Travel speed | 0-11.5 km/h |
| Gradeability - With drum drive | 36 % |
| Gradeability - Intermittent | 40 % |
