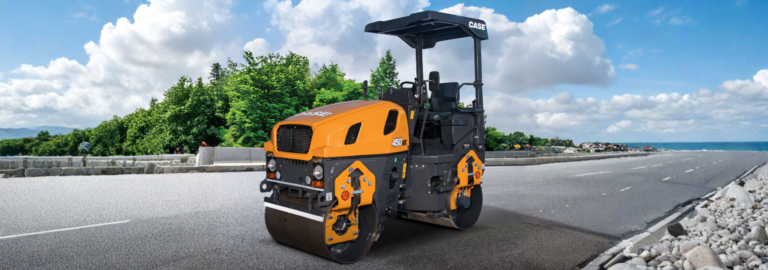

CASE 450NX Tandem Drum Roller
Model Comparison
- 18.5 kW (24.8 hp)
Product Features

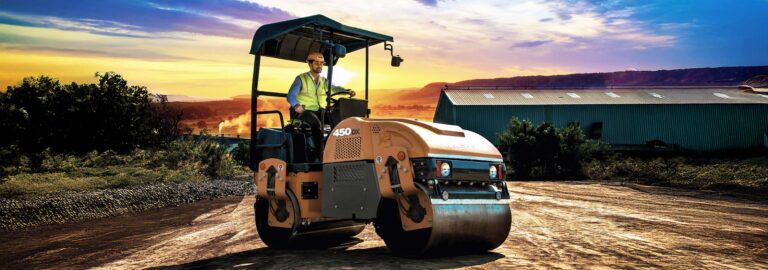

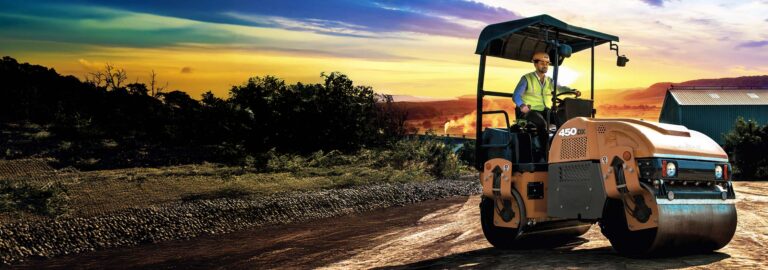

Operator comfort and control are at the centre of the 450NX design. The re-engineered workstation includes a premium high-back seat, intuitive control layout, and wide protective canopy for shade and weather protection. Dual vibration modes and adjustable speed control help achieve perfect compaction on asphalt, granular base, or patching work, while the excellent drum-edge visibility and balanced weight distribution improve accuracy in tight spaces. Serviceability is fast and simple with the single-piece tilting engine hood that grants full access to all key components. Extended 2,000-hour hydraulic oil change intervals and an efficient cooling system mean less downtime and lower ownership costs. Compact, quiet, and highly manoeuvrable, the 450NX is engineered for efficiency across every shift, making it a standout performer in the 2.9-tonne class.
Durable Powertrain and Transmission
The hydrostatic drive system delivers smooth, consistent performance with instant response and precise control. A heavy-duty transmission and well-balanced drum-to-chassis weight distribution ensure reliable traction, even on steep gradients or uneven asphalt surfaces.
| Name | 450NX |
|---|---|
| Engine Model | 275DI |
| Cylinders | N/A |
| Type of Cooling | Liquid Cooled |
| Displacement | 2.048 L |
| Air Intake | N/A |
| Fuel Injection | N/A |
| Max Gross Power @2200rpm (ISO 14396) | 18.5 kW (24.8 hp) |
| Max Gross Torque @1400 rpm (ISO 14396) | 130 Nm |
| After-treatment | N/A |
| Name | 450NX |
|---|---|
| Max Travel Speed | 9.5 kph |
| Max Working Speed | N/A |
| Propulsion on Front & Rear Drum | N/A |
| Max Gradeability | 35 % |
| Name | 450NX |
|---|---|
| Steering | Hydrostatic (Center Point Articulation) |
| Steering Angle | ±27° |
| Turning Radius | 3.32 M |
| Oscillation angle (degree) | ±10° |
| Name | 450NX |
|---|---|
| Service Brake | Hydrostatic |
| Parking Brake | Spring applied, hydraulically released |
| Name | 450NX |
|---|---|
| Operating Weight | 2,900 kg |
| Front Axle Load | 1,480 kg |
| Rear Axle Load | 1,420 kg |
| % Mass on Front | N/A |
| % Mass on Rear | N/A |
| Static Linear Load- Front | 14.8 kg/cm |
| Static Linear Load- Rear | 14.2 kg/cm |
| Articulation on Either Side (deg.) | N/A |
| Inner Turning Radius (m) | N/A |
| Vertical Oscillation Angle (deg.) | N/A |
| Name | 450NX |
|---|---|
| Vibration Stage | Two |
| Frequency High - HF | 61 Hz |
| Frequency Low - LF | 46 Hz |
| Amplitude | 0.5 mm |
| Centrifugal Force (Kgf) HF per Drum | 2900/ 28.43 |
| Centrifugal Force (Kgf) LF per Drum | 1652 / 16.20 |
| Maximum applied Force (Kgf) per Drum | 4380 / 42.95 |
| Name | 450NX |
|---|---|
| Water Tank - Front/Rear (L) | 150 |
| Fuel Tank | 38 L |
| Engine oil | 5 L |
| Coolant | 6.8 L |
| Hydraulic Tank | 40 L |
| Name | 450NX |
|---|---|
| Wheelbase | 1.925 m |
| Overall Width | 1.184 m |
| Rear Overhang - Drum Centre to Frame Edge | 0.535 m |
| Drum Diameter - Front/ Rear | 0.7 m |
| Total Machine Height / Transport Height | 2.697 m |
| Height to Top of Seat/ Steering Wheel | 1.827 m |
| Ground Clearance | 0.307 m |
| Total Length | 2.871 m |
| Side Overhang – Drum Edge to Frame | 0.092 m |
| Drum Thickness | 0.012 m |
| Drum Width | 1 m |
| Departure Angle - Front/ Rear | N/A |
