SV214

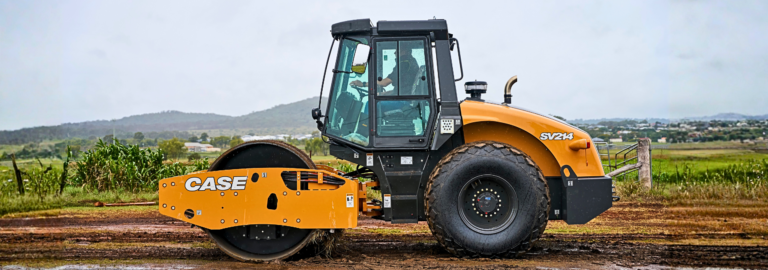

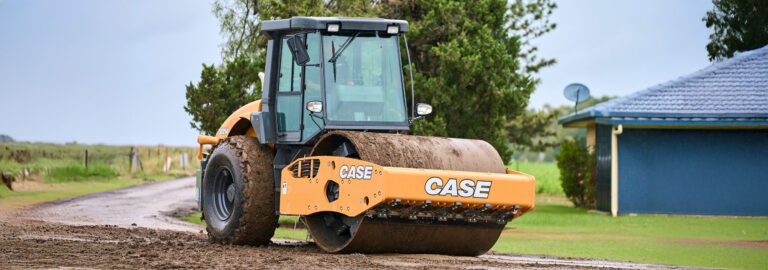

CASE SV214 Single Drum Roller

The CASE SV214 is built for heavy compaction work where power, stability, and finish quality matter most. Powered by a 4.5 L Cummins QSB engine delivering 160 HP and 624 Nm of torque, it offers smooth, responsive performance with low fuel consumption. The hydrostatic drive and heavy-duty drum design provide exceptional traction and consistent compaction even on uneven ground or steep grades. Dual frequency and amplitude settings allow the operator to tailor performance to soil conditions, improving density in fewer passes. Built on CASE’s proven single-drum platform, the SV214 combines strength, balance, and precision in a 12.5-tonne machine that’s ready for large civil works and road base applications. The low centre of gravity ensures stability on inclines, while the optional HX configuration delivers increased traction through all-wheel drive for extreme sites. Its heavy-duty articulation joint, wide drum width, and strong centrifugal force produce a smooth, uniform surface, making it ideal for both structural and finishing compaction across varied materials.

Model Comparison

Finance Offers

Download Brochure

119 kW (159.6 hp)
119 kW (159.6 hp)

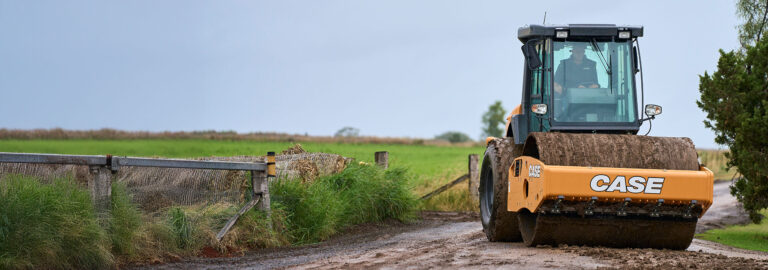

Product Features

The SV214’s hydrostatic transmission delivers precise control of travel speed and direction with two selectable ranges for both working and transport conditions. The combination of hydrostatic drive, high-torque drum motor, and optional HX rear drive provides powerful climbing ability up to 55%. The advanced vibration system operates on two frequencies and amplitudes, letting operators optimise compaction force for granular or cohesive soils. The result is faster, more uniform compaction, lower fuel burn, and reduced wear on components. Operator comfort and ease of maintenance are built into every detail. The ROPS/FOPS cab is spacious, quiet, and fitted with air conditioning for all-weather comfort. The seat and controls are fully adjustable, and the 360-degree visibility design ensures maximum safety and confidence on busy worksites. Service points are positioned at ground level and accessible through the forward-tilting hood, while extended maintenance intervals keep downtime low and productivity high. The SV214 is built to deliver lasting performance, day after day, in the toughest conditions.

Engine

The SV214 is powered by a turbocharged 4.5 L Cummins QSB engine with a high-capacity air aftercooler to boost air intake density and deliver strong, consistent torque. Its Tier 3-compliant design offers proven reliability with excellent fuel efficiency, even under heavy loads. Built for performance in tough conditions, this engine delivers dependable power with minimal maintenance and long service intervals.

Engine

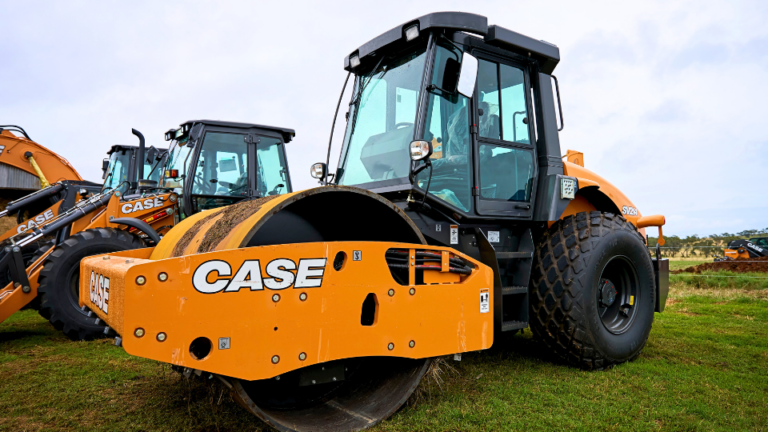

Vibration System

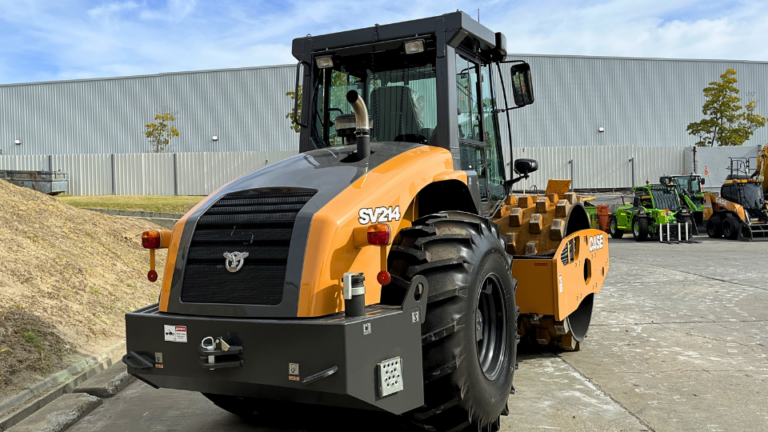

Drum and Frame Design

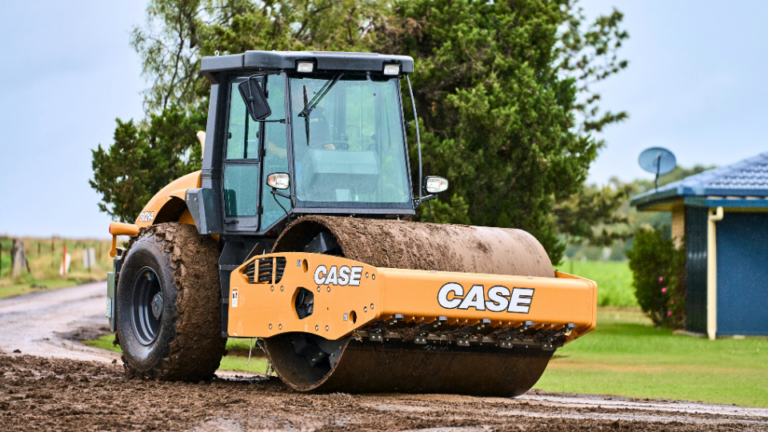

Operator Visibility and Safety

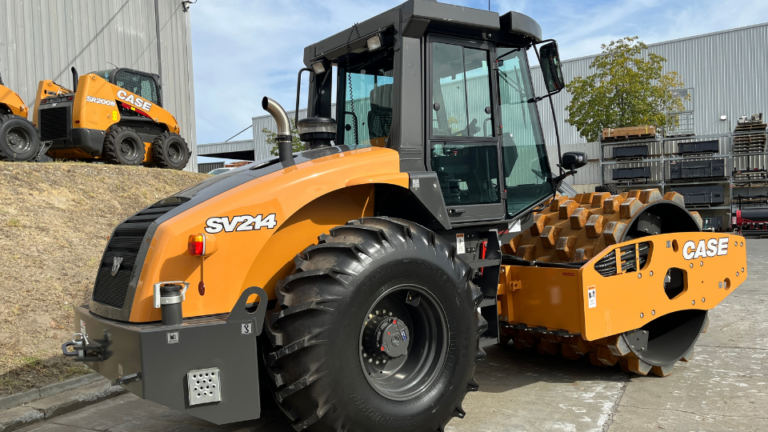

Ground Contact and Traction

Specifications

Download Brochure

Engine

Name	SV214
Make & Model	Cummins QSB 4.5-C160
Max Power ISO 3046-1	119 kW (159.6 hp)
Maximum torque	624 Nm
Emission class	EU Stage IIIA, U .S. EPA Tier 3
Number of Cylinders	4

Steering

Name	SV214
System	Hydraulic assisted articulated

Service Capacities

Name	SV214
Fuel tank	410 L
Hydraulic System	90 L
Engine crank Case	11 L
Engine coolant	32 L

Vibration System

Name	SV214
Frequency I STD	30 Hz
Frequency I STD PD	30 Hz
Frequency II STD	36 Hz
Frequency II STD PD	36 Hz
Amplitude I STD	1.9 mm
Amplitude I STD PD	1.85 mm
Amplitude II STD	1.05 mm
Amplitude II STD PD	1 mm
Centrifugal force I STD	300 kN
Centrifugal force I STD PD	300 kN
Centrifugal force II STD	230 kN
Centrifugal force II STD PD	230 kN

Miscellaneous

Name	SV214
Brakes operating	Hydrostatic
Brakes parking	Multiple-disc spring brake
Brakes emergency	Multiple-disc spring brake
Articulation angle (±)	36 °
Oscillation angle (±)	10 °
