SV218

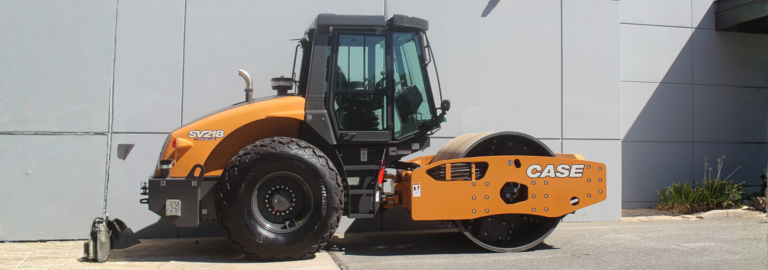

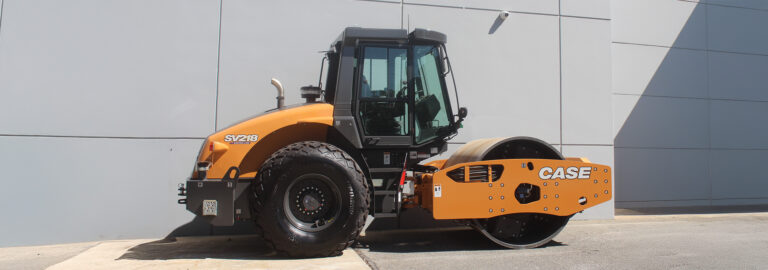

CASE SV218 Single Drum Roller

The CASE SV218 is a high-performance 16.2-tonne compactor built for maximum efficiency and strength on large infrastructure, mining, and road construction projects. Powered by a 4.5 L Cummins QSB engine producing 160 HP and 624 Nm of torque, it combines power with refined hydraulic control for outstanding compaction results. The hydrostatic drive system delivers smooth, consistent travel speed and torque to both the drum and rear wheels, maintaining traction and performance on slopes up to 55%. With its dual amplitude and frequency settings, the SV218 ensures efficient compaction across a wide range of soil types and moisture levels. Built with durability in mind, the SV218 features a reinforced 40 mm drum shell, heavy-duty articulation joint, and a wide 2.26-metre frame for stability and balance. The low centre of gravity enhances control on rough terrain, while the HX version adds all-wheel drive for increased traction in soft or uneven ground conditions. With superior centrifugal force, deep compaction capability, and precise steering response, the SV218 delivers exceptional productivity and finish quality in fewer passes, a true workhorse for demanding Australian conditions.

Model Comparison

Finance Offers

Download Brochure

119 kW (159.6 hp)
119 kW (159.6 hp)

Product Features

The SV218 uses a hydrostatic transmission with two selectable speed ranges for precise operation at any working condition. Its advanced vibration system provides high centrifugal output and variable amplitude control, allowing operators to tailor compaction force to different soil densities. The combination of high torque and excellent gradeability ensures consistent drum contact, uniform material density, and greater fuel efficiency. Whether you’re building embankments, compacting structural fill, or stabilising large road bases, the SV218 delivers reliable power and consistent results. Inside the ROPS/FOPS cab, operators benefit from a quiet, comfortable environment with exceptional visibility to the drum and tyre edges. The seat and console are fully adjustable, and the control layout is intuitive for easy operation during long shifts. A large display keeps key data visible at a glance, while extended service intervals and ground-level access points reduce downtime. Rugged, efficient, and operator-focused, the SV218 is designed to deliver superior compaction performance and long-term reliability in the toughest conditions.

Drum Design and Compaction Power

The SV218’s heavy-duty drum is engineered for deep compaction with maximum force and minimal vibration loss. A 40 mm thick drum shell and reinforced supports maintain consistent pressure across the full width, delivering smooth, uniform results even in coarse or rocky material. Dual amplitude settings help tailor the output to suit varied ground conditions.

Drum Design and Compaction Power

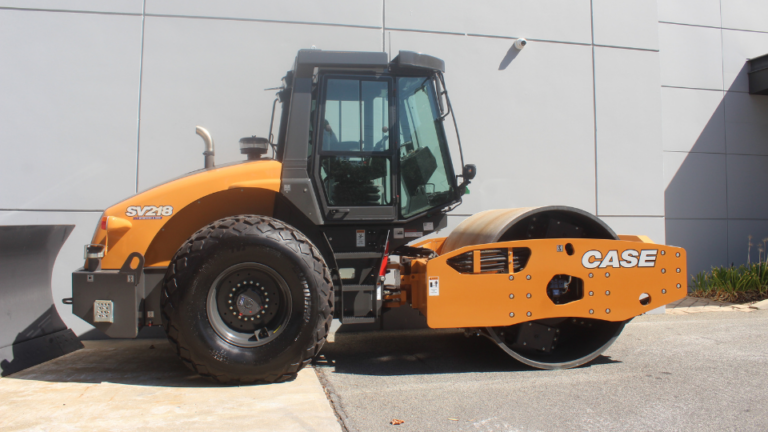

Dual-Drum Vibration Control

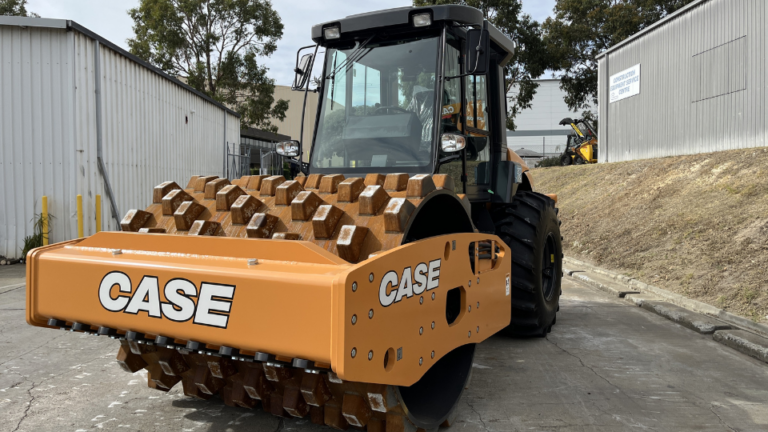

Stability and Drum Balance

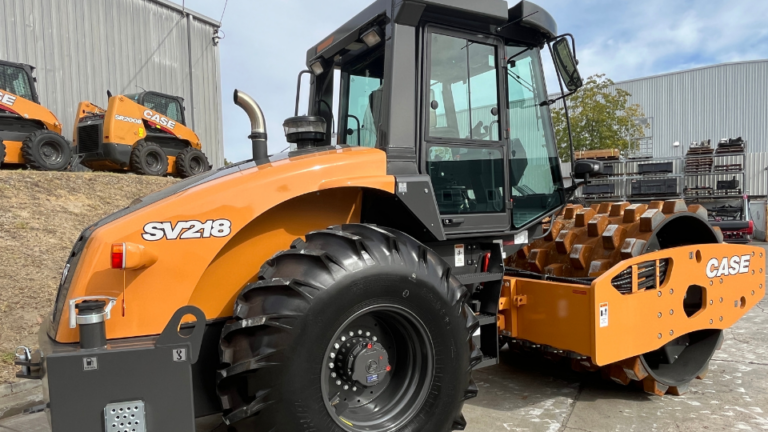

Operator Visibility and Control

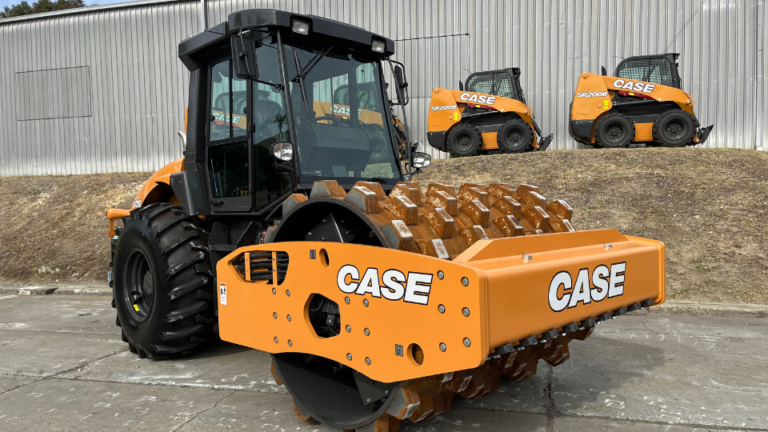

Easy Service and Maintenance Access

Specifications

Download Brochure

Engine

Name	SV218
Make & Model	Cummins QSB 4.5-C160
Max Power ISO 3046-1	119 kW (159.6 hp)
Maximum torque	624 Nm
Emission class	EU Stage IIIA, U .S. EPA Tier 3
Number of Cylinders	4

Steering

Name	SV218
System	Hydraulic assisted articulated

Service Capacities

Name	SV218
Fuel tank	410 L
Hydraulic System	90 L
Engine crank Case	11 L
Engine coolant	32 L

Vibration System

Name	SV218
Frequency I STD	28 Hz
Frequency I STD PD	28 Hz
Frequency II STD	35 Hz
Frequency II STD PD	35 Hz
Amplitude I STD	2.2 mm
Amplitude I STD PD	2.2 mm
Amplitude II STD	1.2 mm
Amplitude II STD PD	1.1 mm
Centrifugal force I STD	335 kN
Centrifugal force I STD PD	335 kN
Centrifugal force II STD	260 kN
Centrifugal force II STD PD	260 kN

Miscellaneous

Name	SV218
Brakes operating	Hydrostatic
Brakes parking	Multiple-disc spring brake
Brakes emergency	Multiple-disc spring brake
Articulation angle (±)	36 °
Oscillation angle (±)	10 °
