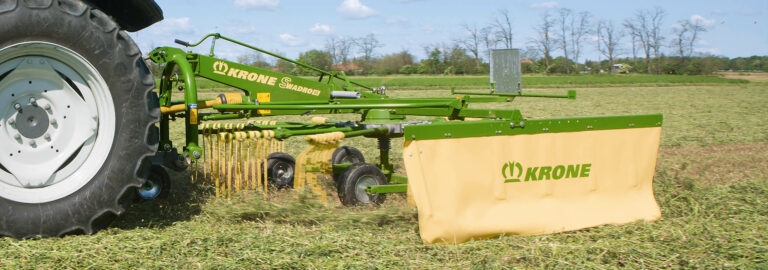

Swadro Single Rotor Rakes previewSwadro Single Rotor Rakes
Krone’s Single Rotor Rakes range in working widths from 3.5m to 4.6m and are built with the same rotor components as the largest rotary rake in the world, the Swadro 2000. This offers peace of mind that you are working with the best single-rotor rakes on the market. The Swadro S single-rotor rakes stand out for ease of operation, offering adjustable work height and swath width, and unbeatable transportation and storage.

Model Comparison

Finance Offers
Download Brochure
  • 4,600 mm
  • 3,500 mm
  • 3,800 mm
  • 4,200 mm
  • 4,600 mm

Product Features

kubota previewkubota
1
2
3
4
5

Cardanic Rotor Suspension

Swadro single-rotor rakes feature a cardanic rotor suspension that works to keep the Swadro rotor level when lifted and lowered. A cardanic joint on the arm prevents the tines from being pressed into the ground or from being suspended in the air, avoiding crop contamination. The rotors pivot to give optimum adaption to undulating ground.

Cardanic Rotor Suspension

Swadro single-rotor rakes feature a cardanic rotor suspension that works to keep the Swadro rotor level when lifted and lowered. A cardanic joint on the arm prevents the tines from being pressed into the ground or from being suspended in the air, avoiding crop contamination. The rotors pivot to give optimum adaption to undulating ground.

Specifications

Download Brochure
Dimensions & Weight
Name Swadro 46T Swadro S350 (Highland) Swadro S380 Swadro S420 Swadro S460
Working Width 4,600 mm 3,500 mm 3,800 mm 4,200 mm 4,600 mm
Swath Width Min. 800 mm 600 mm 600 mm 800 mm 800 mm
Swath Width Max. 1,800 mm 1,300 mm 1,300 mm 1,500 mm 1,800 mm
Transport Width 2,500 mm 1,850 mm 1,900 mm 2,260 mm 2,550 mm
Storage Length 5,100 mm 3,040 mm 3,390 mm 3,690 mm 3,990 mm
Storage Height 2,200 mm 2,210 mm 2,210 mm 2,490 mm 3,640 mm
Rotor Diameter 3,600 mm 2,700 mm 2,960 mm 3,300 mm 3,600 mm
Weight 820 kg 532 kg 565 kg 640 kg 665 kg
Output Min. 4.5 m2 3 m2 3.5 m2 4 m2 4.5 m2
Output Max. 5 m2 3 m2 4 m2 4.5 m2 5 m2
Tyre Size 18 / 8.5 – 8 / 6 PR 16 x 6.50-8 16 x 6.50-8 16 x 6.50-8 16 x 6.50-8
Name Swadro 46T Swadro S350 (Highland) Swadro S380 Swadro S420 Swadro S460
Attachment Trailed 3 Point Linkage 3 Point Linkage 3 Point Linkage 3 Point Linkage
No. of Tine Arms 13 10 10 13 13
No. of Double Tines Per Tine Arm 4 4 4 4 4
No. of Double Tines 52 40 40 52 52
Minimum PTO 50 hp 31 hp 35 hp 50 hp 55 hp
Name Swadro 46T Swadro S350 (Highland) Swadro S380 Swadro S420 Swadro S460
Lift Tine
Fully Enclosed Gearbox with "DuraMax" Dry Cam Track Design
Maintenance Free Rotor (no grease nipple per tine arm)
Folding Tine Arms
Tandem Axle
Warning Panel
Telescopic Pivoting Swath Curtain
Gas Strut Support for Folding Curtain Arm
Overrun Clutch Now Standard Fit
