SR130B

CASE SR130B Skid Steer Loader

Model Comparison Product Features Attachments Specifications
CASE SR130B Skid Steer Loader previewCASE SR130B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SR130B is a highly versatile radial lift skid steer loader specifically designed to maximise your digging and pushing performance. Powered by a reliable 2.2-litre Perkins engine that delivers 36.4 kilowatts of gross horsepower and 143 N-m of peak torque , this 2,344-kilogram machine provides exceptional strength with a 590-kilogram rated operating capacity at 50 percent. Operators will appreciate the completely sealed cab that is engineered to significantly reduce job site noise and dust. The spacious interior ranks as the widest in the industry and features an optimised start up procedure for more intuitive interaction.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

Product Features

To maximise your efficiency on site, the loader frame supports are strategically positioned at the bottom of the chassis to deliver optimal pushing power during heavy applications. This aggressive geometry is complemented by a standard hydraulic pump flow of 59 litres per minute, providing fast cycle times to keep your projects moving. Routine maintenance is incredibly straightforward with a unique cab design that safely tilts forward using just two retaining bolts to provide full access to internal components. When loading materials into transport vehicles, operators benefit from a bucket hinge pin height of 2,845 millimetres and a generous tipping load of 1,179 kilograms.

kubota previewkubota
1
2
3
4

Drive Motor Pump Controls

The advanced hydrostatic pump controller guarantees smooth and precise operation across unpredictable terrain. By maintaining a straighter travel path without the need for constant steering adjustments, this system significantly reduces operator fatigue and boosts overall productivity.

Drive Motor Pump Controls

The advanced hydrostatic pump controller guarantees smooth and precise operation across unpredictable terrain. By maintaining a straighter travel path without the need for constant steering adjustments, this system significantly reduces operator fatigue and boosts overall productivity.

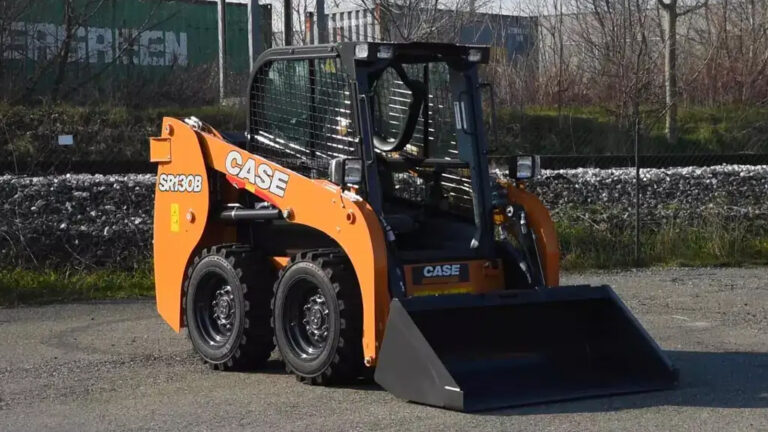

Compact Job Site Access previewCompact Job Site Access

Compact Job Site Access

READ MORE

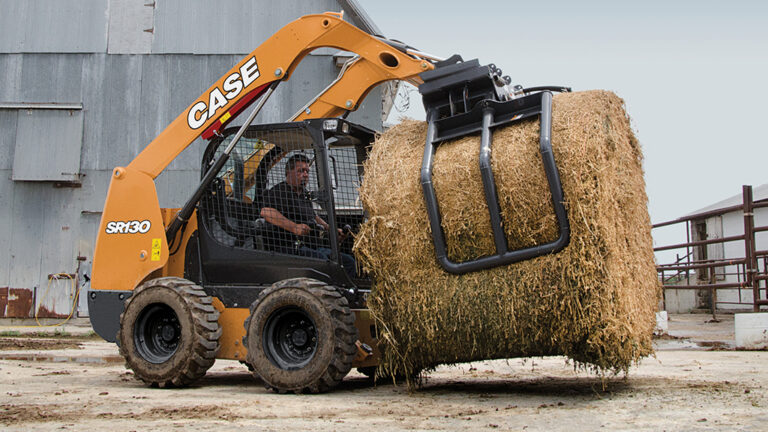

Premium Agricultural Operation previewPremium Agricultural Operation

Premium Agricultural Operation

READ MORE
Effortless Tool Swapping previewEffortless Tool Swapping

Effortless Tool Swapping

READ MORE
Efficient Ground Engagement previewEfficient Ground Engagement

Efficient Ground Engagement

READ MORE

Specifications

Download Brochure
Dimensions
Name SR130B
Overall Height w/ LPE Bkt 3,859 mm
Bucket Hinge Pin 2,845 mm
Top Of ROPS 1,919 mm
Bottom of Bkt Fully Raised 2,682 mm
Length w/o Attachment 2,435 mm
Length w/ LPE Bkt 3,297 mm
Dump Angle 40.2 °
Dump Height w/ LPE Bkt 2,073 mm
Dump Reach w/ LPE Bkt 675 mm
Max Rollback at Ground 26.12 °
Max Rollback Fully Raised 95.2 °
Wheelbase 941 mm
Ground Clearance 178 mm
Angle of Departure 22 °
Rear Axle to Bumper 858 mm
Overall Width (Spec Tyre) 1,518 mm
Name SR130B
Rated Operating Capacity 50% 590 kg
Tipping Load 1,179 kg
Lift Cylinder Breakout Force 12.7 kN
Bucket Cylinder Breakout Force 18.6 kN
Name SR130B
Engine Brand PERKINS
Engine Model 404D-22
Displacement 2.2 L
Horsepower Gross 36.4 kW (48.8 hp)
Peak torque 143 N·m
Name SR130B
Low Range 12.7 Km/h
High Range (Optional) 18 Km/h
Name SR130B
Pump flow 100% 59 Lpm
Displacement 20.4 cc
Name SR130B
Operating Weight 2,344 kg
Shipping Weight 2,160 kg
Name SR130B
Fuel Tank 60.5 L
