SR150B

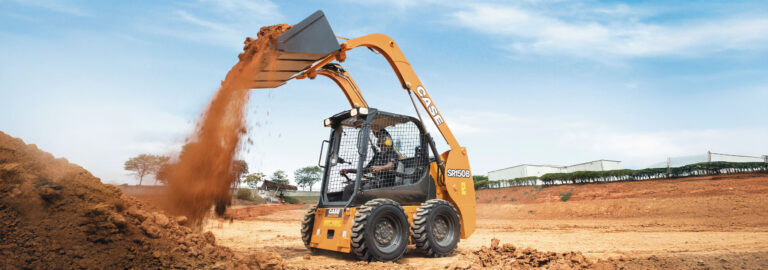

CASE SR150B Skid Steer Loader

Model Comparison Product Features Attachments Specifications
CASE SR150B Skid Steer Loader previewCASE SR150B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SR150B is a highly capable radial lift skid steer loader engineered to deliver exceptional digging and pushing performance across challenging work sites. Powered by a robust 2.2-litre turbocharged Perkins engine that generates 44.7 kilowatts of gross horsepower and 171 N-m of peak torque, this 2,474-kilogram machine offers a solid 680-kilogram rated operating capacity. Operators can confidently tackle heavy excavation tasks thanks to a substantial 18.6-kilonewton bucket breakout force and a reliable 59-litre-per-minute hydraulic pump flow. The expansive and fully sealed cabin provides outstanding all-around visibility, featuring a wide entry door and a standard suspension seat to minimise fatigue during long operational hours.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

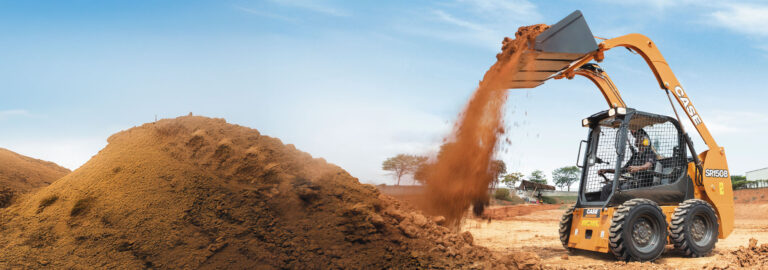

Product Features

When loading transport vehicles, owners will benefit from a generous bucket hinge pin height of 2,845 millimetres and a 1,361-kilogram tipping load. The loader arms are supported directly at the bottom of the chassis, an engineered geometry that maximises your pushing power during aggressive earthmoving. Fleet managers can easily maintain this equipment by simply removing two retaining bolts to tilt the cab forward for unrestricted access to hydraulic and transmission components. On the job site, operators can easily navigate rough terrain with a 178-millimetre ground clearance and an optional high-range travel speed of 18 kilometres per hour.

kubota previewkubota
1
2
3
4

Drive Motor Pump Controls

Operators can achieve remarkable control and precision on unpredictable terrain thanks to the upgraded hydrostatic pump controller. This intelligent system automatically maintains a straight driving path to eliminate constant steering corrections, which significantly lowers fatigue and boosts your daily productivity.

Drive Motor Pump Controls

Operators can achieve remarkable control and precision on unpredictable terrain thanks to the upgraded hydrostatic pump controller. This intelligent system automatically maintains a straight driving path to eliminate constant steering corrections, which significantly lowers fatigue and boosts your daily productivity.

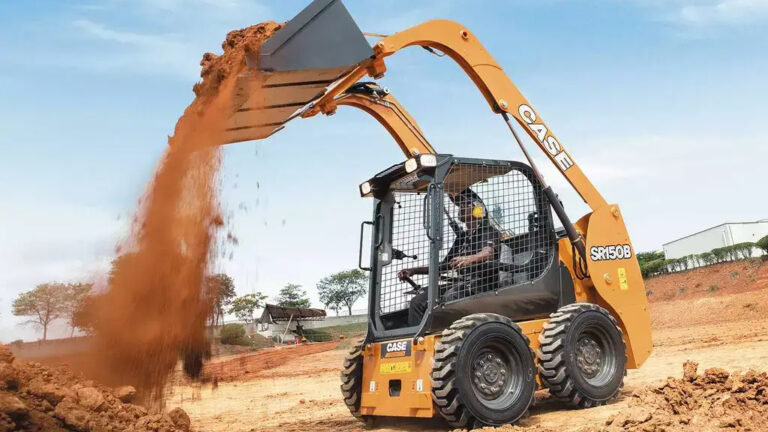

Optimised Material Clearance previewOptimised Material Clearance

Optimised Material Clearance

READ MORE

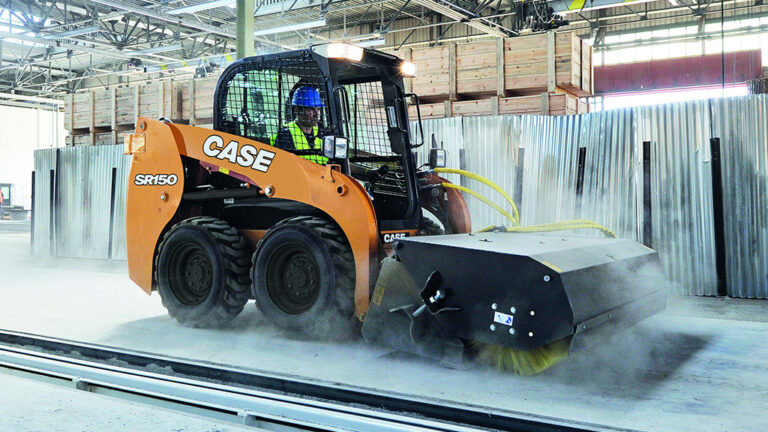

Compact Indoor Manoeuvrability previewCompact Indoor Manoeuvrability

Compact Indoor Manoeuvrability

READ MORE

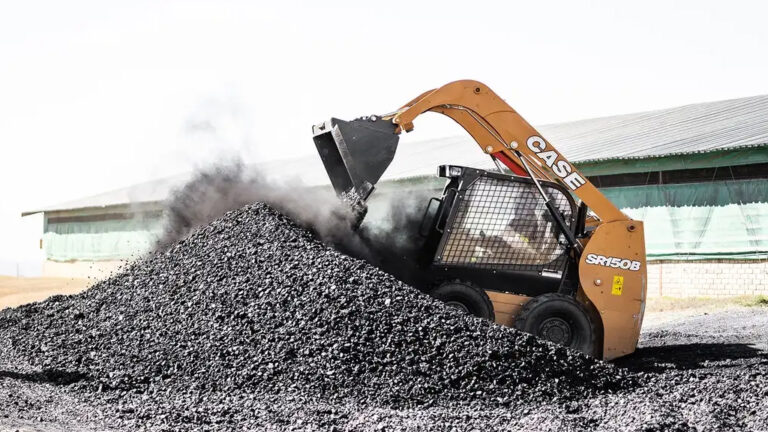

Aggressive Ground Engagement previewAggressive Ground Engagement

Aggressive Ground Engagement

READ MORE

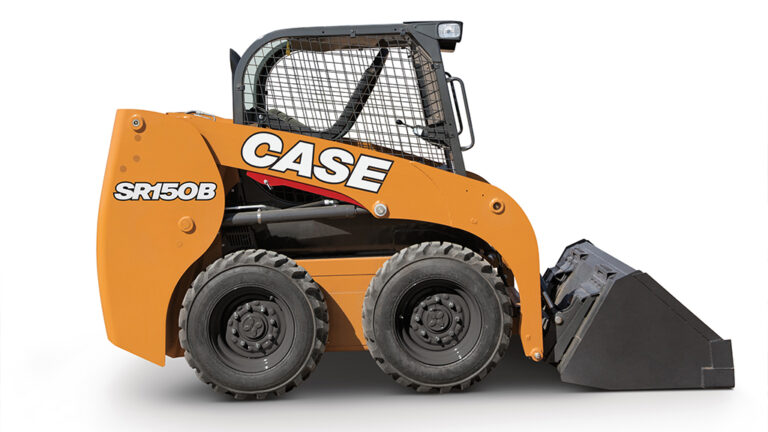

Extended Operational Hours previewExtended Operational Hours

Extended Operational Hours

READ MORE

Specifications

Download Brochure
Dimensions
Name SR150B
Overall Height w/ LPE Bkt 3,859 mm
Bucket Hinge Pin 2,845 mm
Top Of ROPS 1,919 mm
Bottom of Bkt Fully Raised 2,682 mm
Length w/o Attachment 2,435 mm
Length w/ LPE Bkt 3,297 mm
Dump Angle 40.2 °
Dump Height w/ LPE Bkt 2,073 mm
Dump Reach w/ LPE Bkt 675 mm
Max Rollback at Ground 26.12 °
Max Rollback Fully Raised 95.2 °
Wheelbase 941 mm
Ground Clearance 178 mm
Angle of Departure 22 °
Rear Axle to Bumper 858 mm
Overall Width (Spec Tyre) 1,518 mm
Name SR150B
Rated Operating Capacity 50% 680 kg
Tipping Load 1,361 kg
Lift Cylinder Breakout Force 14.1 kN
Bucket Cylinder Breakout Force 18.6 kN
Name SR150B
Engine Brand PERKINS
Engine Model 404D-22
Displacement 2.2 L
Horsepower Gross 44.7 kW (59.9 hp)
Peak torque 171 N·m
Name SR150B
Low Range 12.7 Km/h
High Range (Optional) 18 Km/h
Name SR150B
Pump flow 100% 59 Lpm
Displacement 20.4 cc
Name SR150B
Operating Weight 2,474 kg
Shipping Weight 2,300 kg
Name SR150B
Fuel Tank 60.5 L
