CASE SR175B Skid Steer Loader

Model Comparison Product Features Attachments Specifications
CASE SR175B Skid Steer Loader previewCASE SR175B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SR175B is a dynamic radial lift skid steer loader built to conquer demanding digging and pushing applications. Powered by a robust turbocharged Perkins engine delivering 44.7 kilowatts of gross horsepower and 171 N-m of peak torque, this 2,881-kilogram machine provides impressive muscle with a 790-kilogram rated operating capacity. Operators can confidently tackle compacted earth thanks to a substantial 32.3-kilonewton bucket cylinder breakout force and a reliable 1,588-kilogram tipping load. Inside the completely sealed cabin, drivers benefit from industry-leading visibility and an incredibly spacious interior designed to maximise comfort during long shifts.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

Product Features

To maximise your daily productivity, this loader provides a standard hydraulic pump flow of 72 litres per minute to effortlessly operate a wide variety of attachments. When transferring materials into high-sided trucks, operators benefit from a generous bucket hinge pin height of 3,099 millimetres and a robust 16.9-kilonewton lift cylinder breakout force. Traversing uneven job sites is incredibly smooth thanks to a 1,128-millimetre wheelbase and a solid 178 millimetres of ground clearance. You can keep your crew working longer with a large 75.7-litre fuel tank while taking advantage of an optional high-range travel speed of 18 kilometres per hour.

kubota previewkubota
1
2
3
4

Industry-Leading Visibility

The SR175B delivers exceptional situational awareness with a cab-wide mirror, expansive rear windows and a reinforced skylight that provide unhindered views of your surroundings. Standard 360-degree lighting ensures your team can maintain perfect precision and control well after the sun goes down.

Industry-Leading Visibility

The SR175B delivers exceptional situational awareness with a cab-wide mirror, expansive rear windows and a reinforced skylight that provide unhindered views of your surroundings. Standard 360-degree lighting ensures your team can maintain perfect precision and control well after the sun goes down.

Secure Material Handling previewSecure Material Handling

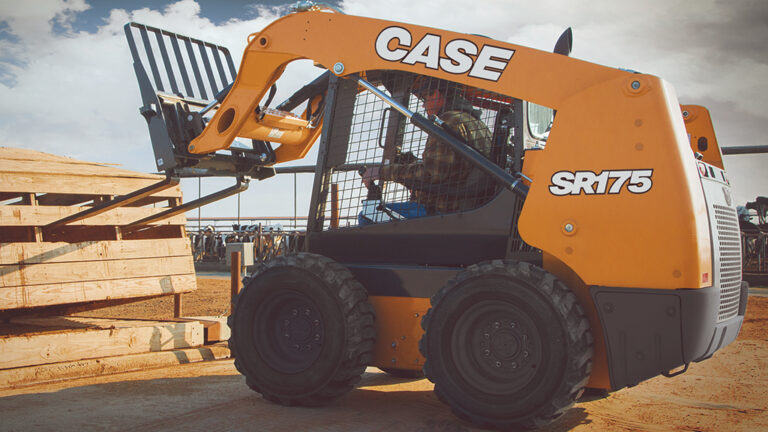

Secure Material Handling

READ MORE
Restricted Access Operation previewRestricted Access Operation

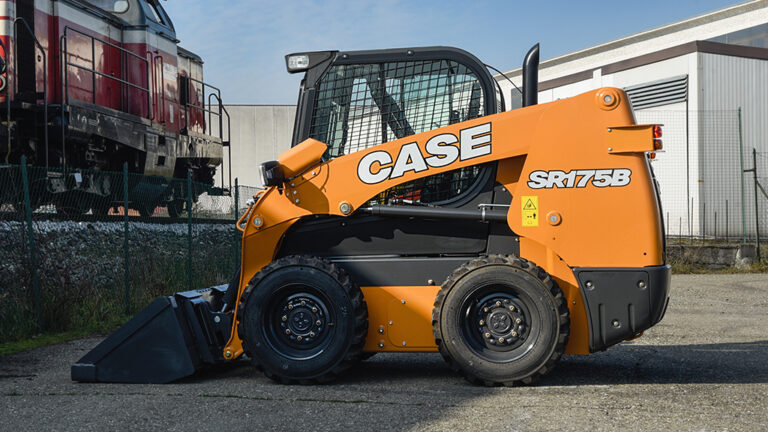

Restricted Access Operation

READ MORE
Efficient Spoil Clearance previewEfficient Spoil Clearance

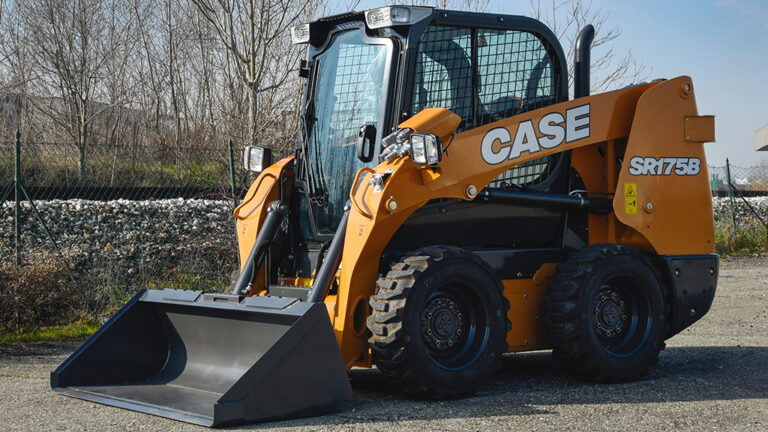

Efficient Spoil Clearance

READ MORE
Instant Attachment Swapping previewInstant Attachment Swapping

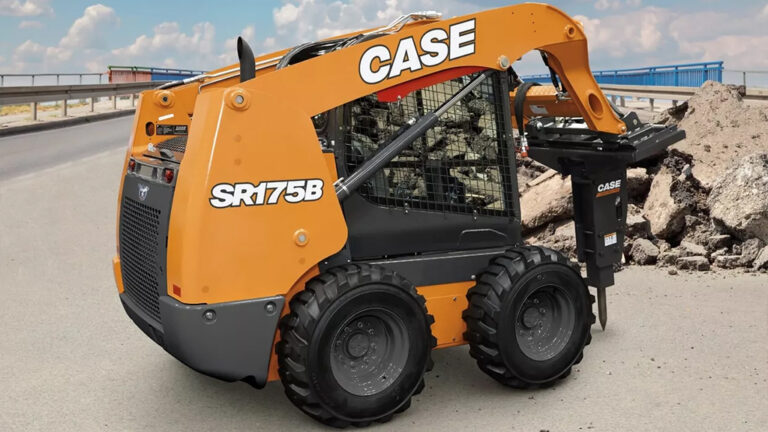

Instant Attachment Swapping

READ MORE

Specifications

Download Brochure
Dimensions
Name SR175B
Overall Height w/ LPE Bkt 4,121 mm
Bucket Hinge Pin 3,099 mm
Top Of ROPS 1,974 mm
Bottom of Bkt Fully Raised 2,925 mm
Length w/o Attachment 2,685 mm
Length w/ LPE Bkt 3,538 mm
Dump Angle 39.6 °
Dump Height w/ LPE Bkt 2,322 mm
Dump Reach w/ LPE Bkt 721 mm
Max Rollback at Ground 31.6 °
Max Rollback Fully Raised 98.6 °
Wheelbase 1,128 mm
Ground Clearance 178 mm
Angle of Departure 23 °
Rear Axle to Bumper 924 mm
Overall Width (Spec Tyre) 1,642 mm
Name SR175B
Rated Operating Capacity 50% 790 kg
Tipping Load 1,588 kg
Lift Cylinder Breakout Force 16.9 kN
Bucket Cylinder Breakout Force 32.3 kN
Name SR175B
Engine Brand PERKINS
Engine Model 404D-22
Displacement 2.2 L
Horsepower Gross 44.7 kW (59.9 hp)
Peak torque 171 N·m
Name SR175B
Low Range 12.7 Km/h
High Range (Optional) 18 Km/h
Name SR175B
Pump flow 100% 72 Lpm
Displacement 24.9 cc
Name SR175B
Operating Weight 2,881 kg
Shipping Weight 2,705 kg
Name SR175B
Fuel Tank 75.7 L
