SR200B

CASE SR200B Skid Steer Loader

Model Comparison Product Features Attachments Specifications

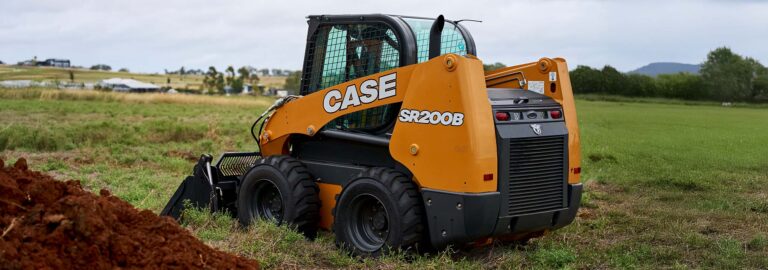

CASE SR200B Skid Steer Loader previewCASE SR200B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SR200B is a formidable radial lift skid steer loader designed to deliver exceptional power for your most demanding pushing and digging applications. Powered by a robust 3.2-litre FPT engine that generates 55 kilowatts of gross horsepower and 275 N-m of peak torque, this 3,184-kilogram machine provides a massive 905-kilogram rated operating capacity. Operators can confidently tackle heavy excavation tasks using a substantial 32.3-kilonewton bucket cylinder breakout force and a high-capacity 85-litre-per-minute hydraulic pump flow. The spacious cabin ensures maximum comfort during long shifts by featuring narrower joystick palm grips, an improved instrument cluster layout and an optimised start-up procedure.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

Product Features

When loading high-sided transport vehicles, operators benefit from an impressive bucket hinge pin height of 3,124 millimetres and a generous tipping load of 1,814 kilograms. The aggressive loader geometry is supported directly by the bottom of the chassis, working in harmony with a 20.3-kilonewton lift cylinder breakout force to maximise your pushing capabilities on site. Navigating heavily rutted terrain is made simple thanks to a 1,128-millimetre wheelbase and an exceptional 203 millimetres of ground clearance. To keep your crew moving efficiently between tasks, this machine offers an optional high-range travel speed of 15.9 kilometres per hour alongside a large 75.7-litre fuel tank.

kubota previewkubota
1
2
3
4

Drive Motor Pump Controls

The upgraded hydrostatic pump controller provides incredibly smooth and precise handling to give operators total confidence when working on uneven ground. This intelligent system helps maintain a straighter travel path on electro-hydraulic models to reduce the need for constant steering corrections and lower daily fatigue.

Drive Motor Pump Controls

The upgraded hydrostatic pump controller provides incredibly smooth and precise handling to give operators total confidence when working on uneven ground. This intelligent system helps maintain a straighter travel path on electro-hydraulic models to reduce the need for constant steering corrections and lower daily fatigue.

Heavy-Duty Demolition Power previewHeavy-Duty Demolition Power

Heavy-Duty Demolition Power

READ MORE

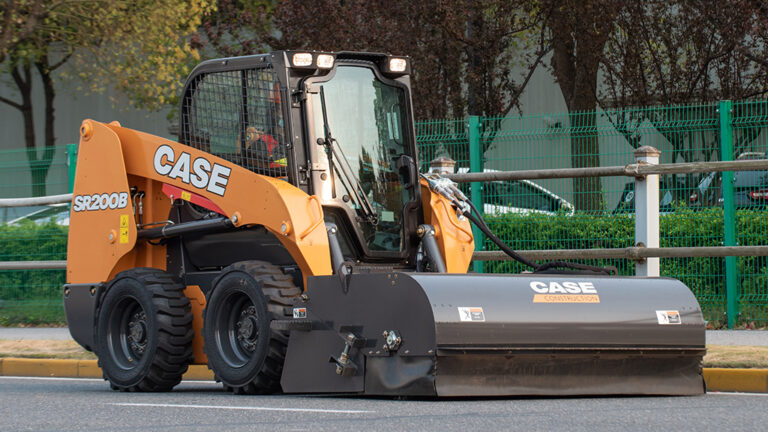

Precision Asphalt Maintenance previewPrecision Asphalt Maintenance

Precision Asphalt Maintenance

READ MORE

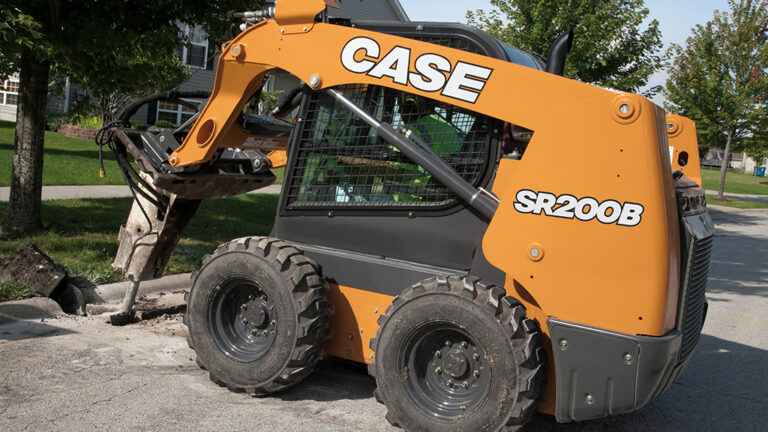

Efficient Urban Utility previewEfficient Urban Utility

Efficient Urban Utility

READ MORE

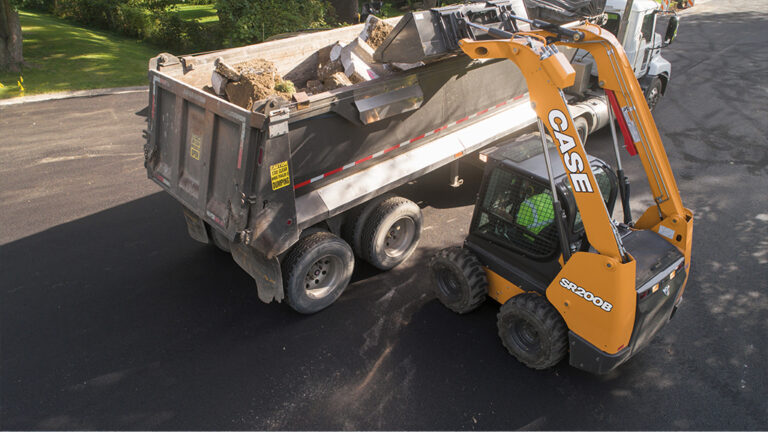

Superior High-Side Loading previewSuperior High-Side Loading

Superior High-Side Loading

READ MORE

Specifications

Download Brochure
Dimensions
Name SR200B
Overall Height w/ LPE Bkt 4,146 mm
Bucket Hinge Pin 3,124 mm
Top Of ROPS 1,998 mm
Bottom of Bkt Fully Raised 2,950 mm
Length w/o Attachment 2,669 mm
Length w/ LPE Bkt 3,525 mm
Dump Angle 39.6 °
Dump Height w/ LPE Bkt 2,347 mm
Dump Reach w/ LPE Bkt 696 mm
Max Rollback at Ground 31 °
Max Rollback Fully Raised 98.6 °
Wheelbase 1,128 mm
Ground Clearance 203 mm
Angle of Departure 25 °
Rear Axle to Bumper 924 mm
Overall Width (Spec Tyre) 1,755 mm
Name SR200B
Rated Operating Capacity 50% 905 kg
Tipping Load 1,814 kg
Lift Cylinder Breakout Force 20.3 kN
Bucket Cylinder Breakout Force 32.3 kN
Name SR200B
Engine Brand FPT
Engine Model F5C E5454 G*A001
Displacement 3.2 L
Horsepower Gross 55 kW (73.8 hp)
Peak torque 275 N·m
Name SR200B
Low Range 10.9 Km/h
High Range (Optional) 15.9 Km/h
Name SR200B
Pump flow 100% 85 Lpm
Displacement 34.1 cc
Name SR200B
Operating Weight 3,184 kg
Shipping Weight 3,025 kg
Name SR200B
Fuel Tank 75.7 L
