SR210B

CASE SR210B Skid Steer Loader

Model Comparison Product Features Attachments Specifications
CASE SR210B Skid Steer Loader previewCASE SR210B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SR210B is a powerful radial lift skid steer loader designed to deliver high performance and reliability across a wide range of demanding job sites. This 3,160-kilogram machine is driven by a 3.4-litre FPT engine that produces 55 kilowatts of gross horsepower and a peak torque of 314 N-m. Operators benefit from a 955-kilogram rated operating capacity and a substantial bucket cylinder breakout force of 32.3 kilonewtons. The equipment features an 8-inch colour display and intuitive controls to ensure the driver remains comfortable and productive throughout the entire workday.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

Product Features

This machine features a bucket hinge pin height of 3,124 millimetres and a 20.3-kilonewton lift cylinder breakout force to make high-sided truck loading incredibly efficient. The hydraulic system delivers a standard pump flow of 92 litres per minute while the heavy-duty radial boom provides a tipping load of 1,909 kilograms for maximum material retention. Operators can travel between work areas at an optional high-range speed of 16.9 kilometres per hour while taking advantage of a generous 73.8-litre fuel tank. The 1,128-millimetre wheelbase and 203 millimetres of ground clearance work together to ensure the loader remains stable and agile on rutted terrain.

kubota previewkubota
1
2
3
4

Industry-Leading Visibility

The SR210B offers exceptional all-around visibility through a combination of wide sightlines to the bucket, a cab-wide mirror and large rear windows. Operators can maintain full awareness of their surroundings in any environment thanks to reinforced skylights and high-performance 360-degree lighting.

Industry-Leading Visibility

The SR210B offers exceptional all-around visibility through a combination of wide sightlines to the bucket, a cab-wide mirror and large rear windows. Operators can maintain full awareness of their surroundings in any environment thanks to reinforced skylights and high-performance 360-degree lighting.

Heavy-Duty Site Clearance previewHeavy-Duty Site Clearance

Heavy-Duty Site Clearance

READ MORE
Aggressive Demolition Performance previewAggressive Demolition Performance

Aggressive Demolition Performance

READ MORE

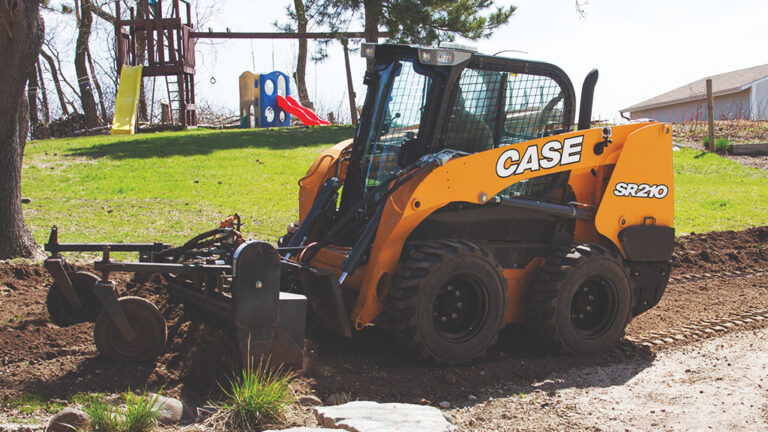

Precision Landscape Grading previewPrecision Landscape Grading

Precision Landscape Grading

READ MORE

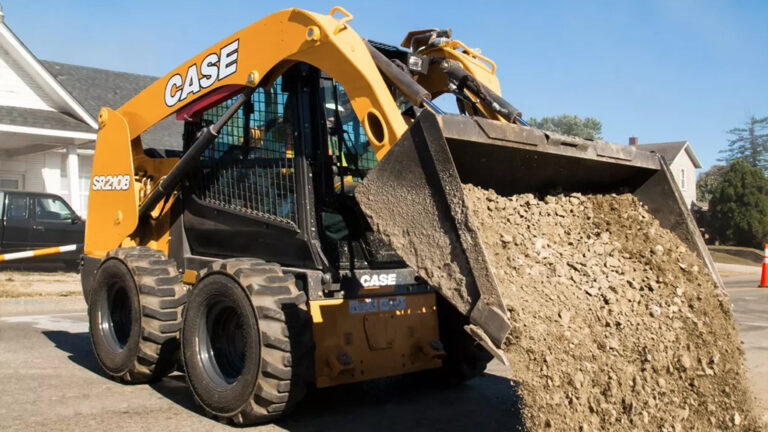

High-Capacity Material Handling previewHigh-Capacity Material Handling

High-Capacity Material Handling

READ MORE

Specifications

Download Brochure
Dimensions
Name SR210B
Overall Height w/ LPE Bkt 4,050 mm
Bucket Hinge Pin 3,120 mm
Top Of ROPS 2,000 mm
Bottom of Bkt Fully Raised 2,950 mm
Length w/o Attachment 2,670 mm
Length w/ LPE Bkt 3,400 mm
Dump Angle 39.6 °
Dump Height w/ LPE Bkt 2,430 mm
Dump Reach w/ LPE Bkt 600 mm
Max Rollback at Ground 31 °
Max Rollback Fully Raised 98.6 °
Wheelbase 1,130 mm
Ground Clearance 200 mm
Angle of Departure 25 °
Rear Axle to Bumper 920 mm
Overall Width (Spec Tyre) 1,760 mm
Name SR210B
Rated Operating Capacity 50% 955 kg
Tipping Load 1,905 kg
Lift Cylinder Breakout Force 20.3 kN
Bucket Cylinder Breakout Force 32.3 kN
Name SR210B
Engine Brand FPT
Engine Model F5H FL463 A*G001
Displacement 3.4 L
Horsepower Gross 55 kW (73.8 hp)
Peak torque 314 N·m
Name SR210B
Low Range 11.4 Km/h
High Range (Optional) 16.9 Km/h
Name SR210B
Pump flow 100% 91.5 Lpm
Displacement 36.6 cc
Name SR210B
Operating Weight 3,160 kg
Shipping Weight 3,025 kg
Name SR210B
Fuel Tank 73.8 L
