CASE SR240B Skid Steer Loader

Product Features Attachments Specifications
CASE SR240B Skid Steer Loader previewCASE SR240B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SR240B is a high-capacity radial lift skid steer loader designed to provide superior breakout force for the most demanding excavation and site preparation tasks. Driven by a 3.4-litre FPT engine that delivers 55 kilowatts of gross horsepower and 314 N-m of peak torque, this 3,350-kilogram machine offers a robust 1,088-kilogram rated operating capacity. Operators can confidently plunge into dense stockpiles thanks to a massive 39.4-kilonewton bucket cylinder breakout force. The large frame design is paired with a 1,322-millimetre wheelbase to ensure maximum stability and operator comfort when moving heavy loads across uneven terrain.

Product Features

This loader achieves a bucket hinge pin height of 3,178 millimetres and an impressive 25.0-kilonewton lift cylinder breakout force to streamline high-sided loading tasks. The high-performance hydraulic system delivers a standard pump flow of 92 litres per minute while the heavy-duty chassis provides a substantial tipping load of 2,177 kilograms. The machine maintains excellent mobility on difficult sites with 203 millimetres of ground clearance and a 96.5-litre fuel tank for extended operation. Operators can choose an optional high-range travel speed of 18.5 kilometres per hour to significantly reduce transit times between different work areas.

kubota previewkubota
1
2
3
4

Industry-Leading Visibility

With an emphasis on safety and precision, CASE’s B Series skid steers feature exceptional all-around visibility. Operators benefit from wide sightlines to the bucket, low thresholds, reinforced skylights, and large rear windows. A cab-wide mirror and standard 360° lighting ensure clear views in every direction, improving awareness and control in both daylight and low-light conditions.

Industry-Leading Visibility

With an emphasis on safety and precision, CASE’s B Series skid steers feature exceptional all-around visibility. Operators benefit from wide sightlines to the bucket, low thresholds, reinforced skylights, and large rear windows. A cab-wide mirror and standard 360° lighting ensure clear views in every direction, improving awareness and control in both daylight and low-light conditions.

Heavy-Duty Quarry Extraction previewHeavy-Duty Quarry Extraction

Heavy-Duty Quarry Extraction

READ MORE

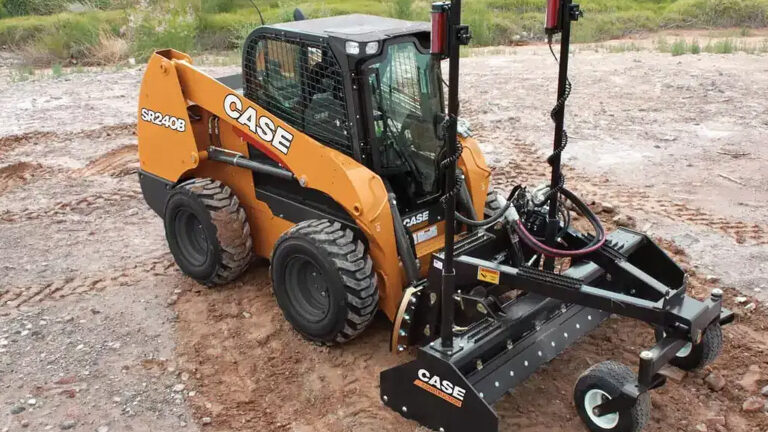

Precision Automated Grading previewPrecision Automated Grading

Precision Automated Grading

READ MORE

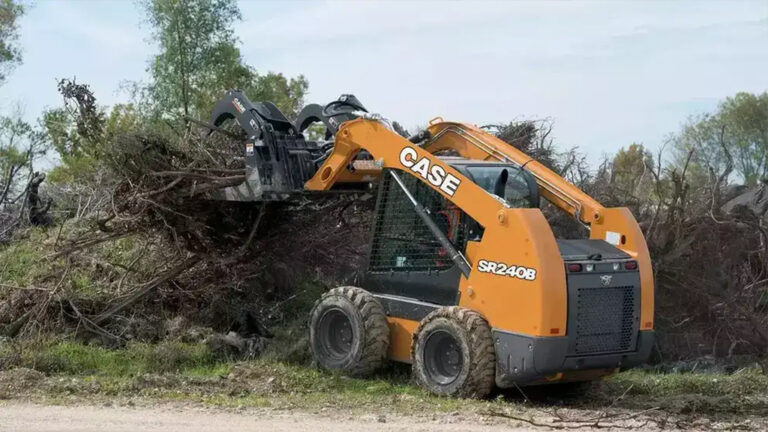

Robust Vegetation Management previewRobust Vegetation Management

Robust Vegetation Management

READ MORE

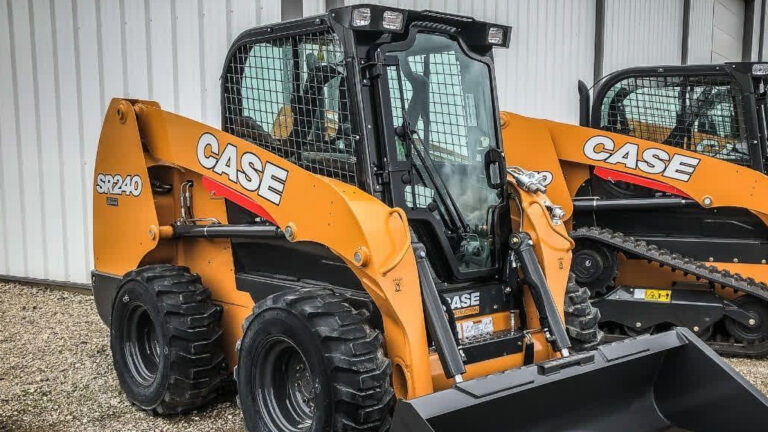

Efficient Site Load-Out previewEfficient Site Load-Out

Efficient Site Load-Out

READ MORE

Specifications

Download Brochure
Dimensions
Name SR240B
Overall Height w/ LPE Bkt 4,070 mm
Bucket Hinge Pin 3,180 mm
Top Of ROPS 2,000 mm
Bottom of Bkt Fully Raised 3,000 mm
Length w/o Attachment 2,980 mm
Length w/ LPE Bkt 3,710 mm
Dump Angle 38.1 °
Dump Height w/ LPE Bkt 2,500 mm
Dump Reach w/ LPE Bkt 570 mm
Max Rollback at Ground 30.7 °
Max Rollback Fully Raised 99.7 °
Wheelbase 1,320 mm
Ground Clearance 200 mm
Angle of Departure 23.5 °
Rear Axle to Bumper 1,030 mm
Overall Width (Spec Tyre) 1,770 mm
Name SR240B
Rated Operating Capacity 50% 1,088 kg
Tipping Load 2,177 kg
Lift Cylinder Breakout Force 25 kN
Bucket Cylinder Breakout Force 39.4 kN
Name SR240B
Engine Brand FPT
Engine Model F5H FL463 A*G001
Displacement 3.4 L
Horsepower Gross 55 kW (73.8 hp)
Peak torque 314 N·m
Name SR240B
Low Range 11.3 Km/h
High Range (Optional) 16.9 Km/h
Name SR240B
Pump flow 100% 91.5 Lpm
Displacement 36.6 cc
Name SR240B
Operating Weight 3,350 kg
Shipping Weight 3,200 kg
Name SR240B
Fuel Tank 96.5 L
