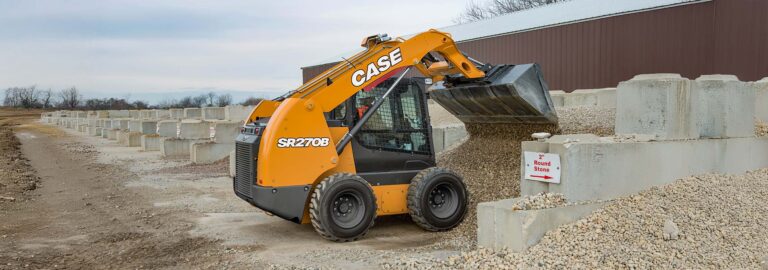

CASE SR270B Skid Steer Loader

Model Comparison Product Features Attachments Specifications
CASE SR270B Skid Steer Loader previewCASE SR270B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SR270B is a high-performance radial lift skid steer loader engineered to deliver maximum power for the most demanding job site applications. Powered by a 3.4-litre FPT engine that produces a substantial 67 kilowatts of gross horsepower and 383 N-m of peak torque, this 3,681-kilogram machine offers a top-tier rated operating capacity of 1,225 kilograms. Operators can rely on the advanced Selective Catalytic Reduction technology to achieve Tier 4 Final compliance without sacrificing engine responsiveness or fuel efficiency. The heavy-duty chassis is paired with a 1,322-millimetre wheelbase to provide exceptional stability when navigating uneven terrain with full loads.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

Product Features

This powerful loader features a high-capacity hydraulic system that produces a standard pump flow of 92 litres per minute to effortlessly drive demanding attachments. For specialised applications requiring even greater performance, owners can equip the machine with an optional enhanced high-flow system that delivers a relief pressure of 277 bar. The radial boom geometry is specifically designed to provide an impressive 38.6-kilonewton bucket cylinder breakout force for superior digging efficiency. When loading high-sided vehicles, operators benefit from a bucket hinge pin height of 3,178 millimetres and a generous tipping load of 2,450 kilograms.

kubota previewkubota
1
2
3
4

Industry-Leading Visibility

Operators can maintain complete situational awareness thanks to a cab-wide mirror and expansive rear windows that provide clear sightlines in every direction. Standard 360-degree lighting pairs with reinforced skylights to ensure that precision and safety remain uncompromised during nighttime operations.

Industry-Leading Visibility

Operators can maintain complete situational awareness thanks to a cab-wide mirror and expansive rear windows that provide clear sightlines in every direction. Standard 360-degree lighting pairs with reinforced skylights to ensure that precision and safety remain uncompromised during nighttime operations.

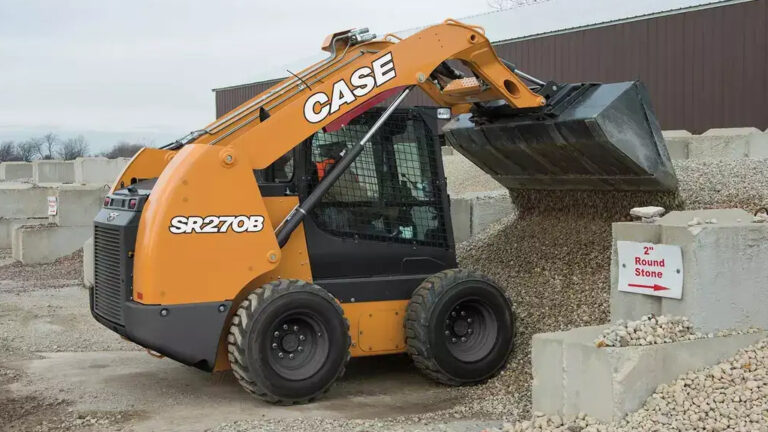

High-Capacity Aggregate Loading previewHigh-Capacity Aggregate Loading

High-Capacity Aggregate Loading

READ MORE

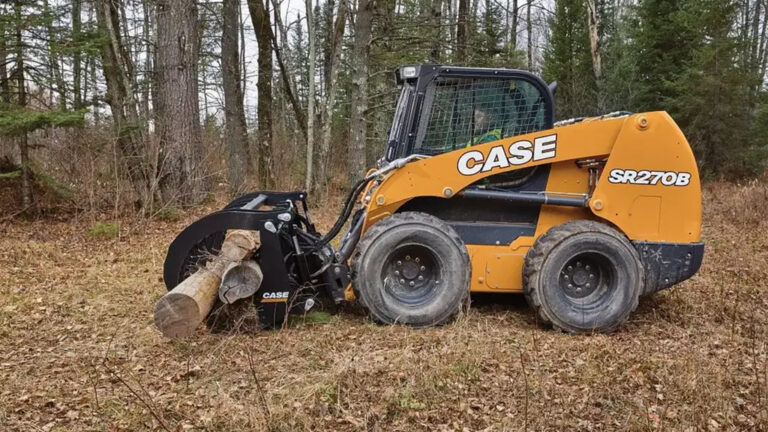

Heavy-Duty Forestry Versatility previewHeavy-Duty Forestry Versatility

Heavy-Duty Forestry Versatility

READ MORE

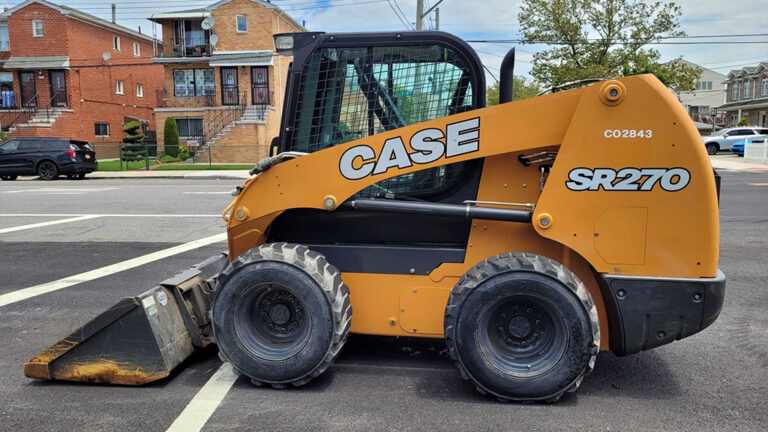

Urban Site Agility previewUrban Site Agility

Urban Site Agility

READ MORE

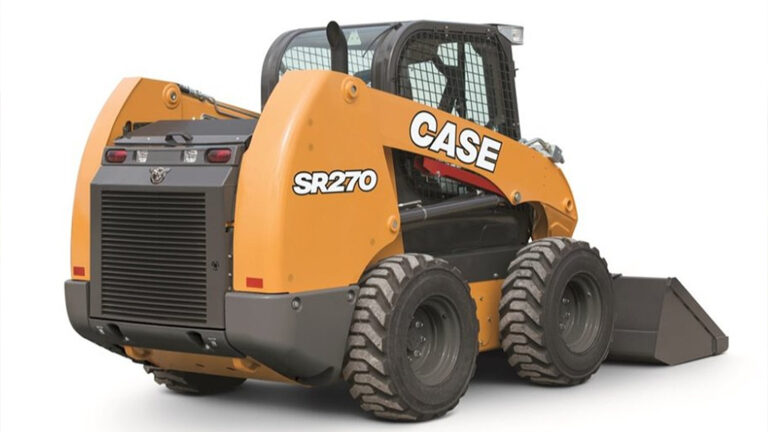

Precision Demolition Performance previewPrecision Demolition Performance

Precision Demolition Performance

READ MORE

Specifications

Download Brochure
Dimensions
Name SR270B
Overall Height w/ LPE Bkt 4,070 mm
Bucket Hinge Pin 3,180 mm
Top Of ROPS 2,000 mm
Bottom of Bkt Fully Raised 3,000 mm
Length w/o Attachment 3,010 mm
Length w/ LPE Bkt 3,760 mm
Dump Angle 38.1 °
Dump Height w/ LPE Bkt 2,500 mm
Dump Reach w/ LPE Bkt 560 mm
Max Rollback at Ground 30.8 °
Max Rollback Fully Raised 99.8 °
Wheelbase 1,320 mm
Ground Clearance 200 mm
Angle of Departure 23.5 °
Rear Axle to Bumper 1,080 mm
Overall Width (Spec Tyre) 1,770 mm
Name SR270B
Rated Operating Capacity 50% 1,225 kg
Tipping Load 2,450 kg
Lift Cylinder Breakout Force 27.1 kN
Bucket Cylinder Breakout Force 38.6 kN
Name SR270B
Engine Brand FPT
Engine Model F5B FL413 D*C001
Displacement 3.4 L
Horsepower Gross 67 kW (89.8 hp)
Peak torque 383 N·m
Name SR270B
Low Range 11.3 Km/h
High Range (Optional) 16.9 Km/h
Name SR270B
Pump flow 100% 91.5 Lpm
Displacement 36.6 cc
Name SR270B
Operating Weight 3,681 kg
Shipping Weight 3,526 kg
Name SR270B
Fuel Tank 96.5 L
