SV185B

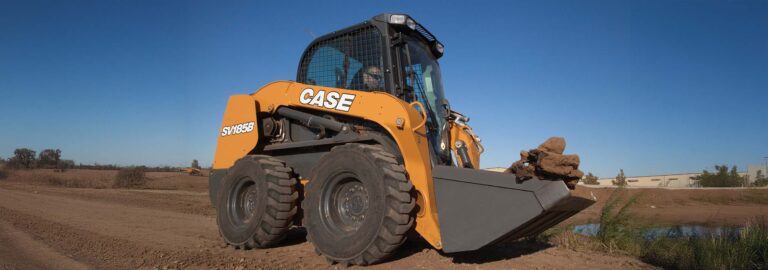

CASE SV185B Skid Steer Loader

Model Comparison Product Features Attachments Specifications
CASE SV185B Skid Steer Loader previewCASE SV185B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SV185B is a highly productive vertical lift skid steer loader engineered specifically to excel in heavy loading and carrying applications. Powered by a robust Perkins engine that produces 44.7 kilowatts of gross horsepower and 171 N-m of peak torque, this 3,019-kilogram machine delivers an impressive 840-kilogram rated operating capacity. Operators will appreciate the completely sealed cabin that significantly reduces dust and noise while providing the widest interior space in the industry. The vertical boom geometry is designed to maximise your lift height and reach, making it incredibly easy to safely load materials into high-sided transport trucks.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

Product Features

When plunging into dense stockpiles, operators can rely on a 24.7-kilonewton bucket cylinder breakout force and a substantial 1,678-kilogram tipping load. This heavy earthmoving capability is perfectly matched with a standard hydraulic pump flow of 72 litres per minute to effortlessly run a variety of power-hungry attachments. Navigating across uneven construction sites is incredibly smooth thanks to a solid 178 millimetres of ground clearance and a 1,128-millimetre wheelbase. Routine inspections are kept fast and straightforward because the entire cab safely tilts forward on just two retaining bolts to provide clear access to critical transmission and hydraulic components.

kubota previewkubota
1
2
3
4

Drive Motor Pump Controls

Equipped with an upgraded hydrostatic pump controller, the SV185B delivers incredibly smooth handling to boost operator confidence across challenging terrain. This intelligent system actively maintains a straight driving path on electro-hydraulic models to eliminate constant steering corrections and significantly reduce daily fatigue.

Drive Motor Pump Controls

Equipped with an upgraded hydrostatic pump controller, the SV185B delivers incredibly smooth handling to boost operator confidence across challenging terrain. This intelligent system actively maintains a straight driving path on electro-hydraulic models to eliminate constant steering corrections and significantly reduce daily fatigue.

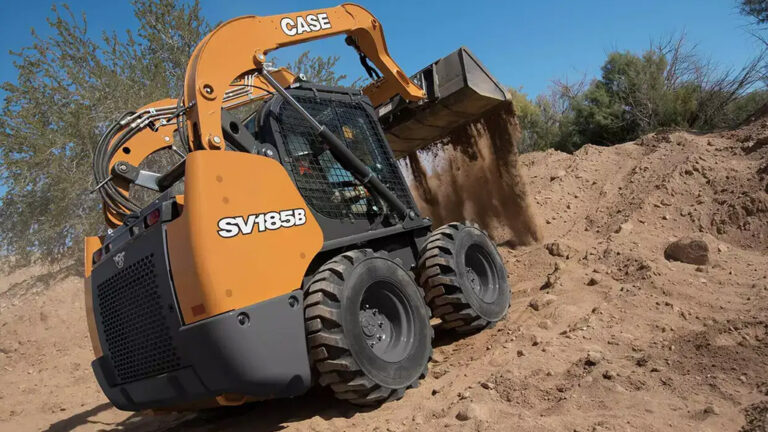

Superior Dumping Performance previewSuperior Dumping Performance

Superior Dumping Performance

READ MORE
Elevated Material Handling previewElevated Material Handling

Elevated Material Handling

READ MORE

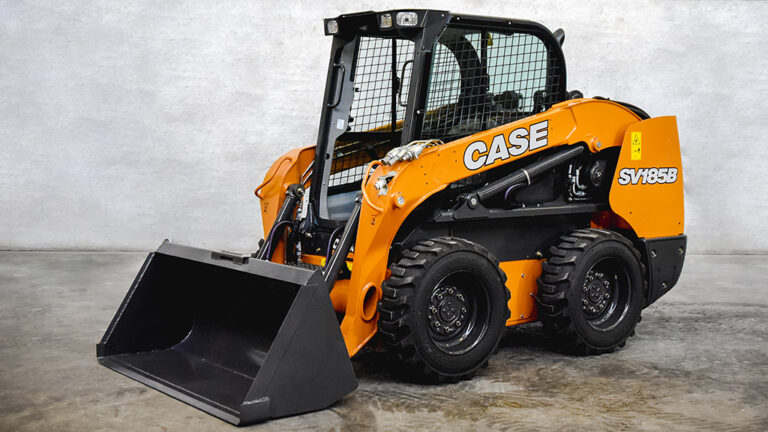

Compact Indoor Agility previewCompact Indoor Agility

Compact Indoor Agility

READ MORE
Reliable All Day Power previewReliable All Day Power

Reliable All Day Power

READ MORE

Specifications

Download Brochure
Dimensions
Name SV185B
Overall Height w/ LPE Bkt 4,055 mm
Bucket Hinge Pin 3,048 mm
Top Of ROPS 1,974 mm
Bottom of Bkt Fully Raised 2,877 mm
Length w/o Attachment 2,685 mm
Length w/ LPE Bkt 3,578 mm
Dump Angle 51.9 °
Dump Height w/ LPE Bkt 2,214 mm
Dump Reach w/ LPE Bkt 946 mm
Max Rollback at Ground 35 °
Max Rollback Fully Raised 87.6 °
Wheelbase 1,128 mm
Ground Clearance 178 mm
Angle of Departure 23 °
Rear Axle to Bumper 924 mm
Overall Width (Spec Tyre) 1,642 mm
Name SV185B
Rated Operating Capacity 50% 840 kg
Tipping Load 1,678 kg
Lift Cylinder Breakout Force 15.3 kN
Bucket Cylinder Breakout Force 24.7 kN
Name SV185B
Engine Brand PERKINS
Engine Model 404D-22
Displacement 2.2 L
Horsepower Gross 44.7 kW (59.9 hp)
Peak torque 171 N·m
Name SV185B
Low Range 12.7 Km/h
High Range (Optional) 18 Km/h
Name SV185B
Pump flow 100% 72 Lpm
Displacement 24 cc
Name SV185B
Operating Weight 3,019 kg
Shipping Weight 2,840 kg
Name SV185B
Fuel Tank 75.7 L
