CASE SV280B Skid Steer Loader

Model Comparison Product Features Attachments Specifications

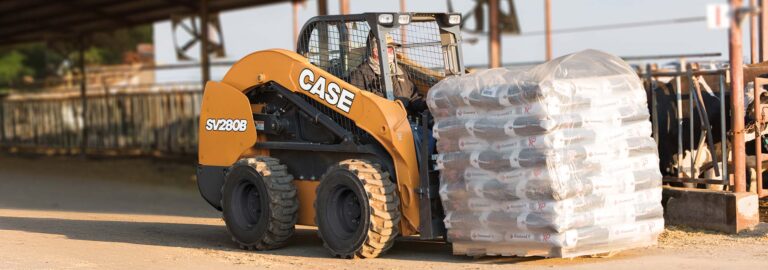

CASE SV280B Skid Steer Loader previewCASE SV280B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SV280B is a high-performance vertical lift skid steer loader engineered to provide maximum reach and stability for demanding material handling applications. Driven by a 3.4-litre FPT engine that delivers 55 kilowatts of power and 314 N-m of peak torque, this 3,670-kilogram machine is built to maintain peak productivity throughout the day. Operators can efficiently manage heavy loads thanks to a 1,270-kilogram rated operating capacity and a 25.0-kilonewton lift cylinder breakout force. The large-frame chassis features a 1,322-millimetre wheelbase to ensure a smooth ride and superior balance when navigating challenging worksites.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

Product Features

This loader is specifically designed for high-reach applications with an impressive bucket hinge pin height of 3,302 millimetres. The vertical lift geometry provides a substantial tipping load of 2,540 kilograms and a dump height of 2,629 millimetres to ensure efficient loading into high-sided transport vehicles. The machine features a steep maximum dump angle of 54 degrees to guarantee that even sticky materials completely clear the bucket during every cycle. For increased productivity during transit, operators can utilise the 96.5-litre fuel tank and reach optional high-range travel speeds of 18.5 kilometres per hour.

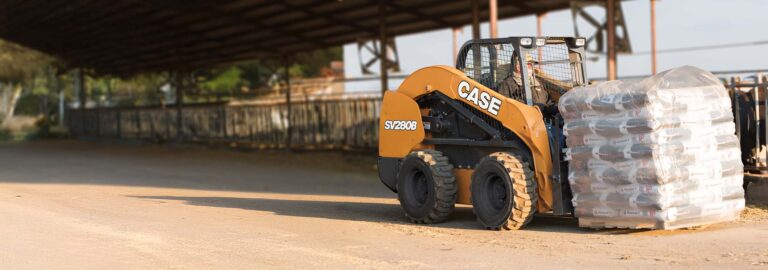

kubota previewkubota
1
2
3
4

Industry-Leading Visibility

The SV280B provides an exceptional 360-degree view of the job site through its expansive glass surfaces and ultra-narrow side screens. Low thresholds and slim front pillars ensure that operators maintain clear sightlines to the tyres and bucket edges for safer, more precise manoeuvring.

Industry-Leading Visibility

The SV280B provides an exceptional 360-degree view of the job site through its expansive glass surfaces and ultra-narrow side screens. Low thresholds and slim front pillars ensure that operators maintain clear sightlines to the tyres and bucket edges for safer, more precise manoeuvring.

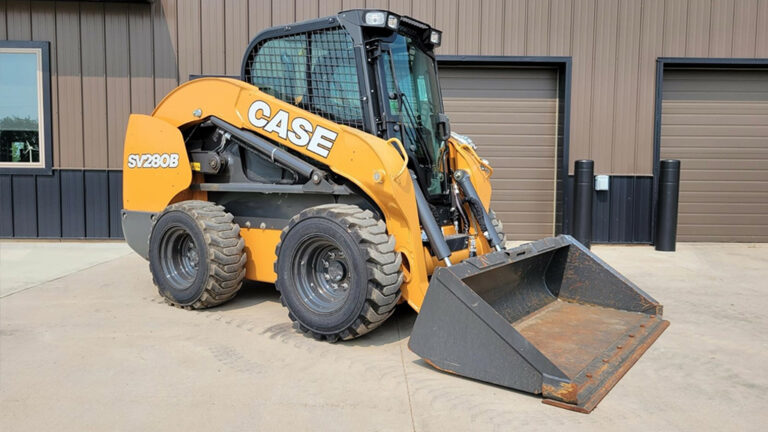

Versatile Large Frame Design previewVersatile Large Frame Design

Versatile Large Frame Design

READ MORE

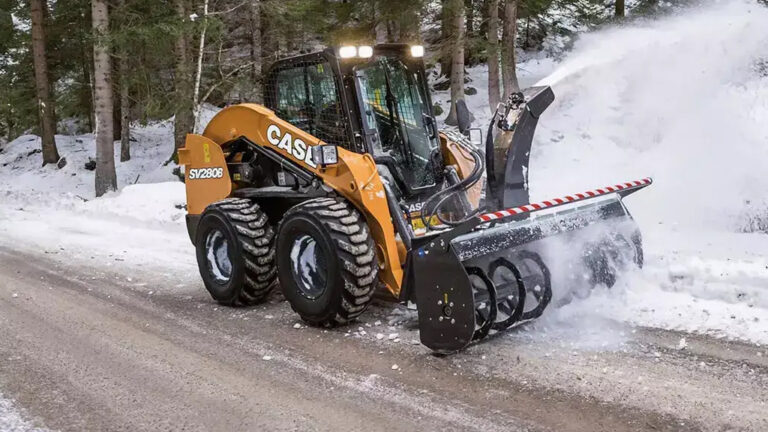

High-Volume Snow Removal previewHigh-Volume Snow Removal

High-Volume Snow Removal

READ MORE

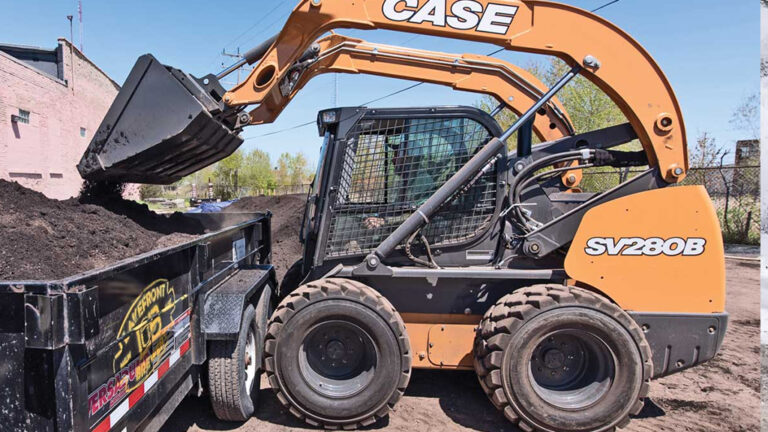

Superior Vertical Lift Loading previewSuperior Vertical Lift Loading

Superior Vertical Lift Loading

READ MORE

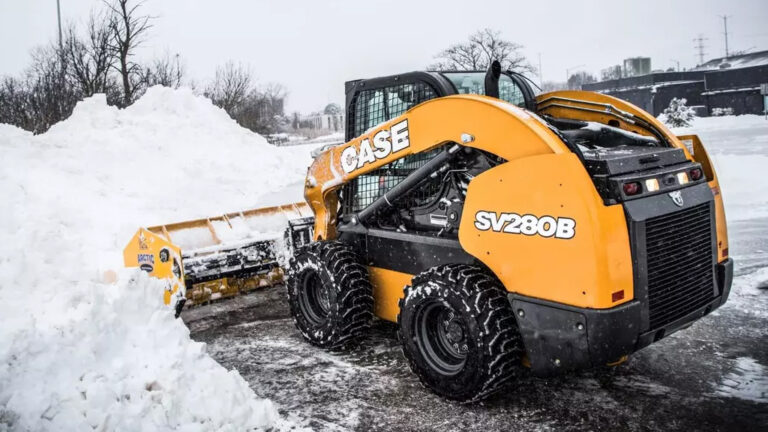

Rapid Winter Site Maintenance previewRapid Winter Site Maintenance

Rapid Winter Site Maintenance

READ MORE

Specifications

Download Brochure
Dimensions
Name SV280B
Overall Height w/ LPE Bkt 4,180 mm
Bucket Hinge Pin 3,300 mm
Top Of ROPS 2,000 mm
Bottom of Bkt Fully Raised 3,040 mm
Length w/o Attachment 2,990 mm
Length w/ LPE Bkt 3,710 mm
Dump Angle 53.5 °
Dump Height w/ LPE Bkt 2,560 mm
Dump Reach w/ LPE Bkt 740 mm
Max Rollback at Ground 35 °
Max Rollback Fully Raised 86 °
Wheelbase 1,320 mm
Ground Clearance 200 mm
Angle of Departure 23.5 °
Rear Axle to Bumper 1,030 mm
Overall Width (Spec Tyre) 1,770 mm
Name SV280B
Rated Operating Capacity 50% 1,270 kg
Tipping Load 2,540 kg
Lift Cylinder Breakout Force 26.7 kN
Bucket Cylinder Breakout Force 39 kN
Name SV280B
Engine Brand FPT
Engine Model F5H FL463 A*G001
Displacement 3.4 L
Horsepower Gross 55 kW (73.8 hp)
Peak torque 314 N·m
Name SV280B
Low Range 11.3 Km/h
High Range (Optional) 16.9 Km/h
Name SV280B
Pump flow 100% 91.5 Lpm
Displacement 36.6 cc
Name SV280B
Operating Weight 3,630 kg
Shipping Weight 3,475 kg
Name SV280B
Fuel Tank 96.5 L
