SR340B

CASE SV340B Skid Steer Loader

Model Comparison Product Features Attachments Specifications
CASE SV340B Skid Steer Loader previewCASE SV340B Skid Steer Loader
AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE SV340B is the most powerful vertical lift skid steer loader in the range, engineered to handle the heaviest lifting and most demanding attachments with ease. Driven by a high-output 3.4-litre FPT engine that delivers 67 kilowatts of gross horsepower and a massive 383 N-m of peak torque, this machine is built for ultimate site productivity. Operators can manage significant payloads thanks to a best-in-class 1,545-kilogram rated operating capacity and a 30.3-kilonewton lift cylinder breakout force. The large-frame chassis utilised on this model features a 1,322-millimetre wheelbase to ensure superior stability when navigating challenging terrain with full loads.

Model Comparison

Finance Offers
Download Brochure
  • 590 kg
  • 680 kg
  • 790 kg
  • 840 kg
  • 1,225 kg
  • 905 kg
  • 955 kg
  • 1,088 kg
  • 1,270 kg
  • 1,545 kg

Product Features

This loader is the ideal choice for high-sided truck loading, offering a maximum bucket hinge pin height of 3,343 millimetres and a generous dump height of 2,671 millimetres. The vertical lift geometry is supported by a robust 42.4-kilonewton bucket cylinder breakout force to ensure aggressive digging performance in tough materials. The SV340B features a high-performance hydraulic system with a standard pump flow of 92 litres per minute and an optional enhanced high flow reaching 150 litres per minute. For maximum efficiency during long shifts, the machine includes a 96.5-litre fuel tank and can reach optional high-range travel speeds of 18.5 kilometres per hour.

kubota previewkubota
1
2
3
4

Industry-Leading Visibility

The SV340B ensures a safer worksite through expansive glass surfaces and ultra-narrow side screens that provide an unobstructed 360-degree view. High-performance lighting and slim front pillars work together to give operators perfect sightlines to the bucket edge and tyres during precision tasks.

Industry-Leading Visibility

The SV340B ensures a safer worksite through expansive glass surfaces and ultra-narrow side screens that provide an unobstructed 360-degree view. High-performance lighting and slim front pillars work together to give operators perfect sightlines to the bucket edge and tyres during precision tasks.

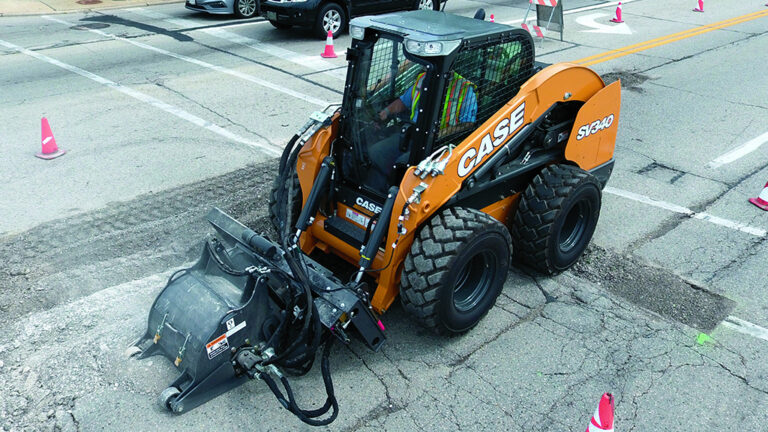

Advanced Urban Road Profiling previewAdvanced Urban Road Profiling

Advanced Urban Road Profiling

READ MORE
Heavy-Duty Industrial Logistics previewHeavy-Duty Industrial Logistics

Heavy-Duty Industrial Logistics

READ MORE

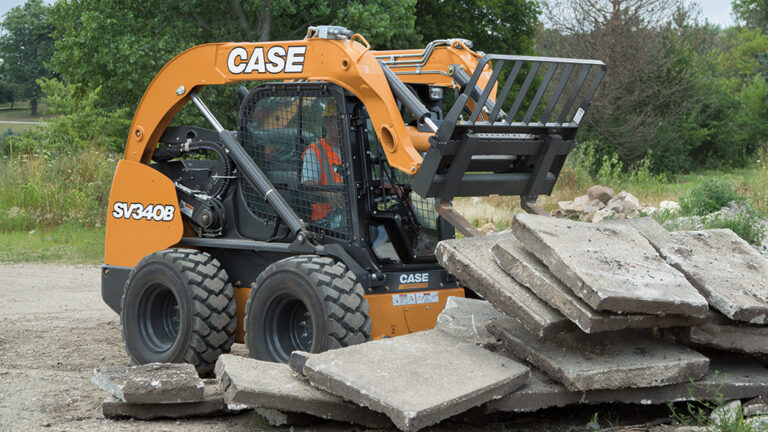

Robust Reinforced Concrete Removal previewRobust Reinforced Concrete Removal

Robust Reinforced Concrete Removal

READ MORE
High-Efficiency Site Maintenance previewHigh-Efficiency Site Maintenance

High-Efficiency Site Maintenance

READ MORE

Specifications

Download Brochure
Dimensions
Name SR340B
Overall Height w/ LPE Bkt 4,220 mm
Bucket Hinge Pin 3,340 mm
Top Of ROPS 2,040 mm
Bottom of Bkt Fully Raised 3,170 mm
Length w/o Attachment 3,020 mm
Length w/ LPE Bkt 3,770 mm
Dump Angle 46.7 °
Dump Height w/ LPE Bkt 2,590 mm
Dump Reach w/ LPE Bkt 690 mm
Max Rollback at Ground 35 °
Max Rollback Fully Raised 86.2 °
Wheelbase 1,320 mm
Ground Clearance 240 mm
Angle of Departure 23.5 °
Rear Axle to Bumper 1,080 mm
Overall Width (Spec Tyre) 1,880 mm
Name SR340B
Rated Operating Capacity 50% 1,545 kg
Tipping Load 3,090 kg
Lift Cylinder Breakout Force 30.3 kN
Bucket Cylinder Breakout Force 42.4 kN
Name SR340B
Engine Brand FPT
Engine Model F5B FL413D*C001
Displacement 3.4 L
Horsepower Gross 67 kW (89.8 hp)
Peak torque 383 N·m
Name SR340B
Low Range 12.4 Km/h
High Range (Optional) 18.5 Km/h
Name SR340B
Pump flow 100% 91.5 Lpm
Displacement 36.6 cc
Name SR340B
Operating Weight 4,136 kg
Shipping Weight 3,890 kg
Name SR340B
Fuel Tank 96.5 L
