6 Tonne Front Tip Cabbed

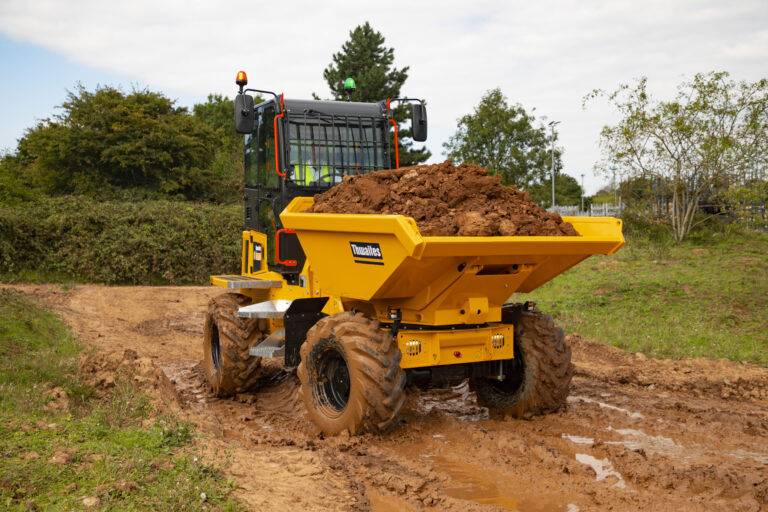

Thwaiets 6 Tonne Front Tip Cabbed

Thwaiets 6 Tonne Front Tip Cabbed previewThwaiets 6 Tonne Front Tip Cabbed

Product Features

The Thwaites 6 Tonne Front Tip Cabbed, Stage V dumper is manufactured with contractors and hirers in mind – ensuring operator safety, reducing risk on site, and improving performance. The cab is impact tested to level 2 ROPS 3471 and FOPS 3449. As such all Thwaites cabbed dumpers are approved for use by the UK Major Contractors Group. Front Tip dumpers allow the machine to be easily and safely unloaded, with a straightforward tipping action that places the full bucket of spoil exactly where it is required. Powered by a 3.3L Yanmar turbo diesel engine fitted with a DPF to comply with EU Stage V emission regulations, you benefit from 53.7 kW peak power, 295 Nm of torque and no AdBlue requirement. Thwaites cabbed dumpers are available in a range of further sizes to suit your needs: › 9 Tonne Front Tip Cabbed › 6 Tonne Power Swivel Cabbed A Spring Activated Hydraulic Release (SAHR) Handbrake, 5” screen displaying 150° around machine visibility, hi-vis steps, full LED road lights and twin LED beacons are fitted as standard, with a GPS speedo, rear wiper and adjustable work lights available as optional extras.

kubota previewkubota
1
2
3
4
5

Engine

› Yanmar 4TNV98CT, water-cooled, 4-cylinder, fuel injected turbo diesel with after treatment Diesel Particulate filter

› Power 53.7 kW/ 72 bhp at 2100 rpm

› Torque 295 Nm (217.5 lbf ft)

Engine

› Yanmar 4TNV98CT, water-cooled, 4-cylinder, fuel injected turbo diesel with after treatment Diesel Particulate filter

› Power 53.7 kW/ 72 bhp at 2100 rpm

› Torque 295 Nm (217.5 lbf ft)

Specifications

Weight
Name 6 Tonne Front Tip Cabbed
Unladen 4,450 kgs
Shipping 4,326 kgs
Name 6 Tonne Front Tip Cabbed
Max Safe Load 6,000 kgs
Heaped 3,400 litres
Struck 2,525 litres
Water 1,925 litres
Name 6 Tonne Front Tip Cabbed
Fuel 72 litres
Hydraulic 50 litres
Name 6 Tonne Front Tip Cabbed
16.2 m
