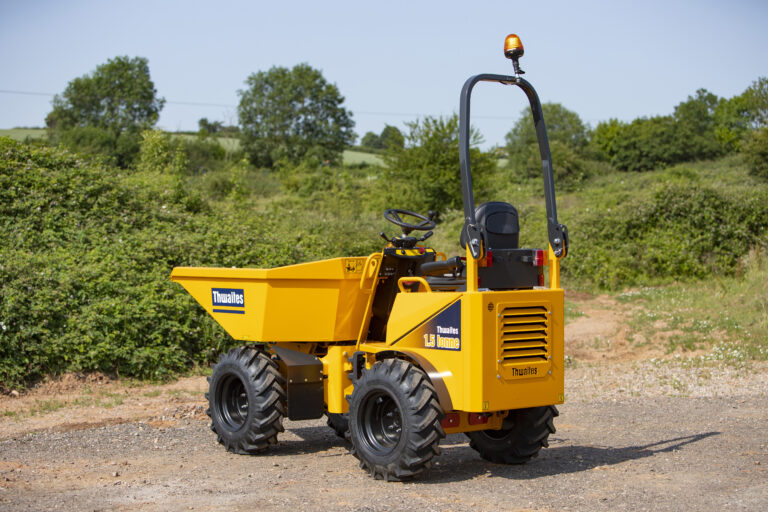

Thwaites 1.5 tonne Power Swivel

Thwaites 1.5 tonne Power Swivel

Thwaites 1.5 tonne Power Swivel previewThwaites 1.5 tonne Power Swivel

Product Features

Market leading and the hirers favourite, the Thwaites 1.5 tonne Power Swivel, Stage V dumper is the ideal machine when working in confined spaces or with limited access and is easily transported by trailer. Powered by a 15.9 kW Yanmar engine, delivering 66.4 Nm of torque for optimum traction, this dumper is driven by a hydrostatic transmission making it very easy to operate. The Power Swivel skip enables a 90 degree rotation left and right, allowing the machine easier access to tip loads in restricted areas, giving the operator greater control and reducing risk on site. Easy to service and maintain with market leading residuals.

kubota previewkubota
1
2
3
4

Engine

› Yanmar 3TNV76, 3-cylinder, water-cooled diesel

› Power 15.9 kW/21.4 bhp at 2800 rpm

› Torque 66.4 Nm (49 lbf ft)

Engine

› Yanmar 3TNV76, 3-cylinder, water-cooled diesel

› Power 15.9 kW/21.4 bhp at 2800 rpm

› Torque 66.4 Nm (49 lbf ft)

Specifications

Weight
Name Thwaites 1.5 tonne Power Swivel
Unladen 1,355 kgs
Shipping 1,266 kgs
Name Thwaites 1.5 tonne Power Swivel
Max Safe Load 1,500 kgs
Heaped 800 litres
Struck 600 litres
Water 520 litres
Name Thwaites 1.5 tonne Power Swivel
Fuel 21 litres
Hydraulic 20 litres
