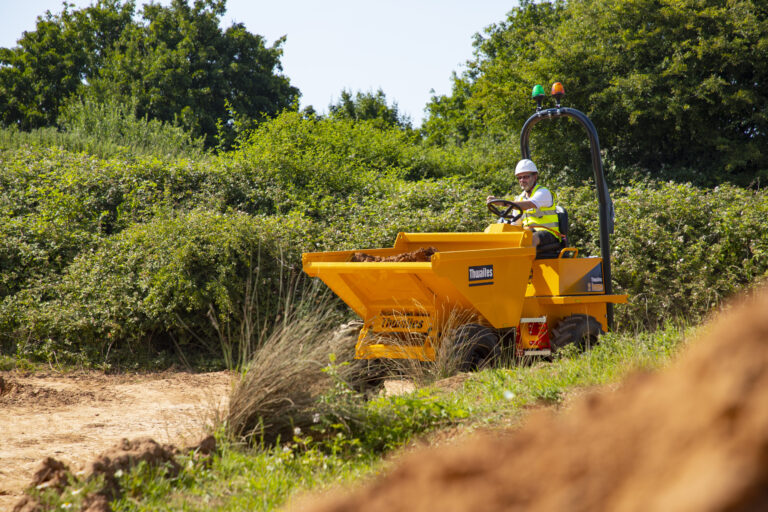

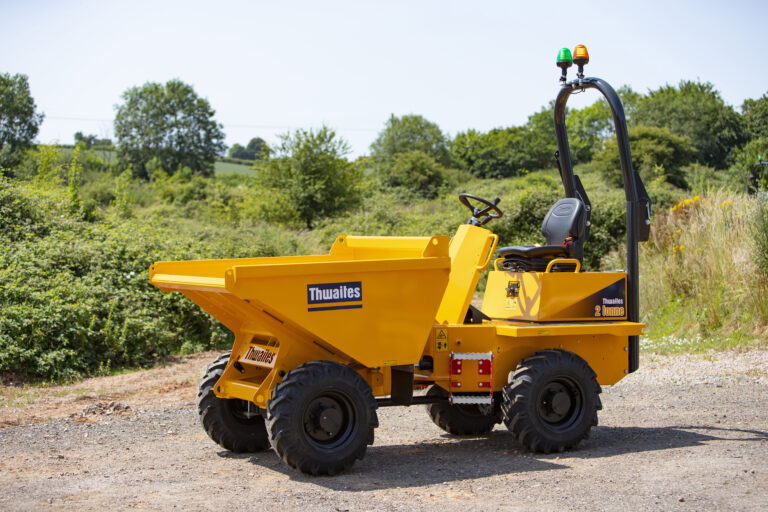

Thwaites 2 Tonne Front Tip


Product Features
The Thwaites 2 tonne Front Tip, Stage V dumper is manuafctured with contractors and hirers in mind - ensuring operator safety, reducing risk on site and improving performance. Powered by an 18.1 kW 3-cylinder Yanmar engine, delivering 107 Nm max torque for optimum traction and control. The Thwaites 2 tonne Front Tip is also available with a manual tranmission. Thwaites 2 tonne machines are also avaialble in a range of configurations to suit your needs including: > Power Swivel Tip > Hi Swivel Tip Robust and reliable, this machine has a fully welded 5mm steel plate skip with reinforced box section fitted to minimise skip damage. Each dumper is supplied as standard with a Spring Activated Hydraulic Release (SAHR) Heandbrake, ROPS frame, towing bracket, LED beacons and a reverse alarm. Full LED road lights including daylight running lights can be fitted as an optional extra. Easy to service and maintain with market leading residules.


Engine
› Yanmar 3TNV88-BWWA, water-cooled, 3-cylinder water cooled direct-injection diesel
› Power 18.1 kW/24.3 bhp at 2000 rpm
› Torque 107 Nm (78.9 lbf ft)
| Name | Thwaites 2 Tonne Front Tip |
|---|---|
| Unladen | 1,990 kgs |
| Shipping | 1,898 kgs |
| Name | Thwaites 2 Tonne Front Tip |
|---|---|
| Max Safe Load | 2,000 kgs |
| Heaped | 1,240 litres |
| Struck | 970 litres |
| Water | 850 litres |
| Name | Thwaites 2 Tonne Front Tip |
|---|---|
| Fuel | 24.5 litres |
| Hydraulic | 25 litres |
